| Connector A: | HDMI Standard Type A Male |
| Connector B: | HDMI Standard Type A Female |
|
Ship Weight:
|
0.10 lbs |
|
Warranty: |
Ltd Lifetime |
|
Tariff Code: |
8544.42.20.00 |

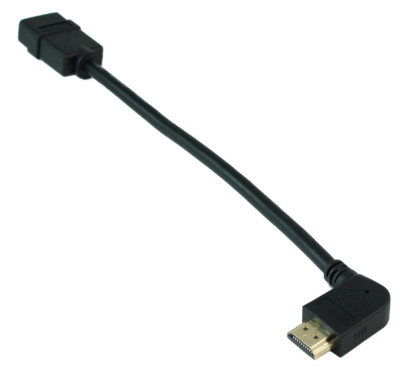

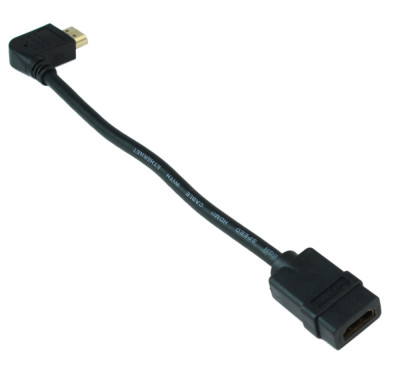

Angle extension cable (6 inches) is ideal for connecting products that are in a hard-to-reach location. Male connector is angled LEFT (see photo to determine direction you need) to allow you to fit your final HDMI connector at any angle.
HDMI 2.0 Features:
- 4K x 2K Support - Supports ANY resolution to 4K (4096x2160) at 30/60Hz
- Approx Height Offset when connected: 28mm
- Male connector is ANGLED LEFT (see photo for angle orientation)
- HDMI Ethernet Channel - (HEC)
- Audio Return Channel-(ARC)
- Full 3D Support - If your source and receiving device support 3D, this cable will
- 18 Gbps Total Bandwidth (independently lab tested by Agilent Technologies to the HDMI v2.0 specification
- Support for ANY TV refresh rates (such as 120Hz/240/480/600Hz), HDCP 1.2 and 2.2 Support
Cable Specifications:
- Wire Gauge: 28 AWG
- High Speed bandwidth: 18 GigaBit/sec
- Gold Plated 1u (All 19 wires and Ground Shroud)
- Silver-plated (20u) PURE copper wire for maximum conductivity WITHOUT any harmful lead (RoHS)
- 19 pin, Male to FEMALE, Type A Connector
