| Connector A: | VGA HD15 Male |
| Connector B: | VGA HD15 Male |
| Color: | Black |
|
Ship Weight:
|
0.46 lbs |
|
Warranty: |
Ltd Lifetime |
|
Tariff Code: |
8544.42.20.00 |

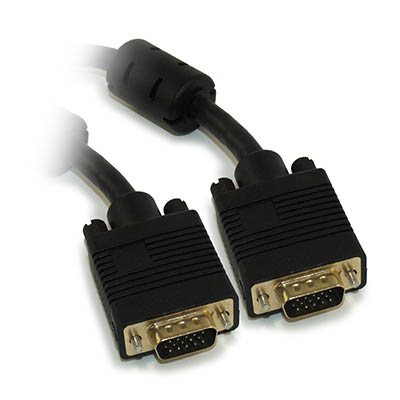

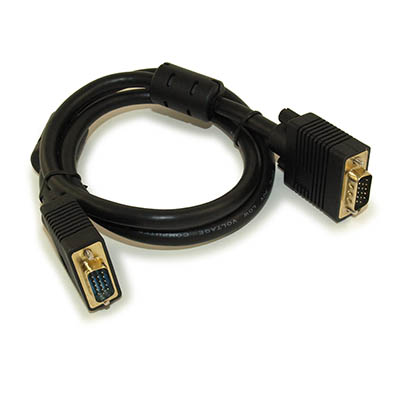

This VGA Male/Male cable features a low loss, double shielded design. Signal integrity is further enhanced by ferrites cores that filters out noise. Comes with durable molded connectors with thumbscrews (at both male and female end) for a secure connection. Great for connecting high resolution analog displays. Comes with a lifetime warranty for peace of mind. 2 Male 15pin connections, VGA connections are also commonly referred to as HD15, DB15 (a misnomer), PC in/out, RGB and RGBHV. This is a FULLY PINNED, FULLY WIRED (15 wires) cable for full DDC2/E-DDC support.
Specifications:
- Supports all VGA monitors including analog flat panel display, high resolution desktop, CAD and graphic workstations.
- 2 MALE Connectors: Fully Pinned 15 male with thumb-bolts
- All 15 wires connected "straight through"
- Supports resolutions UP TO 2048X1536px @85 Hz (388 MHz). Max Resolution obtained may vary depending on signal strength and cable length.
- Wiring Connection: Wires/Pins 1, 2, 3: Coax; 6, 7, 8 G: straight through but also connected to drain (G); remainder of wires straight through
- Cable Outer Diameter (OD): 8.5mm
- Min Bend Radius: 127.5mm
- Conductors: 28AWG , Drain Wire: 30AWG (Copper)
- Triple shielded for maximum graphics performance preventing signal loss, screen ghosting & loss of color
- DDC2/E-DDC Data Support (for monitor detection by OS)
- Gold Plated Connectors
- Have matched impedance w/PVC jacket
- Ferrite cores (both ends)
- Color: Black
