| Connector A: | VGA HD15 Female |
| Connector B: | VGA HD15 Female |
| Color: | Black |
|
Ship Weight:
|
0.74 lbs |
|
Warranty: |
1 Year |
|
Tariff Code: |
8525.50.30.35 |

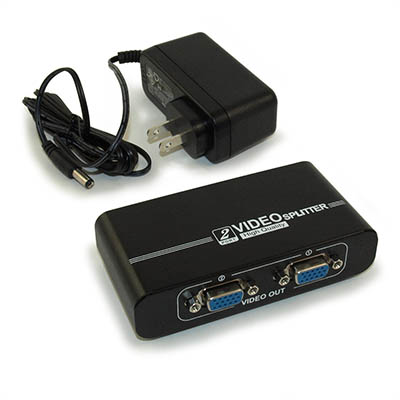

It's well suitable for use in conference rooms, seminars, as well as educational and company training center, where data in one PC can be displayed through multiple monitors.
Specifications and Details:- Ultra High 350MHz Bandwidth provides sharp, clear images at any resolution up to 1920x1440: VGA, Super VGA, or XGA and Multi-Sync Monitors.
- Supports distances up to 200ft.
- Metal Housing presents the most durable and reliable unit.
- Supports "hot swapping" and "plug & play"
- Saves desk space with slim-line design.
- Easy to install, no driver required.
- Works on any platform with all operating systems.
- Power Adapter: DC 9V, 1000mA (included)
- Input Connector: HD 15 FEMALE
- Output Connector: 2 x HD 15 FEMALE
- Dimensions: 110x56x25mm
- Operating Temperature: 0C - 40C
- Bandwidth: 350MHz
- Maximum Resolution: 1920x1440 at 30Hz
- Refresh Rate Range: 30-180Khz Horizontal, 43-250Hz Vertical
- This splitter will MIRROR the image of your source display to TWO monitors
Technical Note: Splitting a signal from a source (such as a computer) to 2 displays with different resolution capabilities (such as a higher resolution computer monitor and a VGA capable TV) can produce undesired results. Please check with your monitor or TV manufacturer to determine the supported resolutions of your display devices. A VGA splitter can only support ONE resolution (the lowest of the 2 displays) if both displays are powered up.
