| Connector A: | Telephone RJ11 Female |
| Connector B: | Punch Down |
| Color: | White |
|
Ship Weight:
|
0.03 lbs |
|
Warranty: |
Ltd Lifetime |
|
Tariff Code: |
8536.69.40.30 |

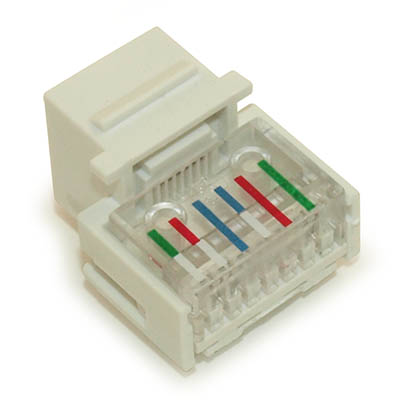

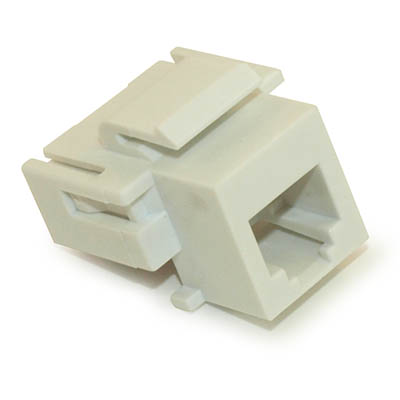

Easy to use punch-down type modular RJ-11/12 Keystone jack. To be used with keystone wall plate or panel, suitable for standard phone connections. Up to 3 line phone support. Wiring diagram on clip.

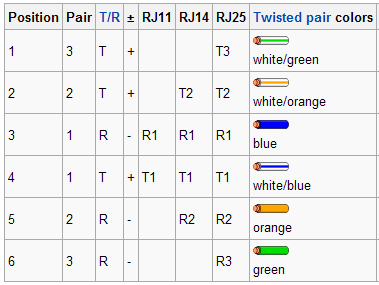

North American wiring conventions (see http://en.wikipedia.org/wiki/6P4C) use the paired BLUE middle connectors for line 1, the TAN/ORANGE connectors for line 2, and optionally, the GREEN outer connectors for line 3.
Installation Note: When using our 4 and 6 hole Decora Plate Inserts, these inserts can NOT be installed "side-by-side" as the hole inserts are spaced too closelyMy Cable Mart Keystone WALL-PLATES and INSERTS all adhere to NEMA standards. Keystone insert modules have a rectangular face of 14.5mm wide by 16.0mm high, and are held in place with flexible tabs. This allows them to be snapped into a mounting plate with correspondingly-sized holes called ports. All keystone inserts, regardless of the type of jack they carry are interchangeable and replaceable. This provides for much flexibility in arranging and mounting many different type of electrical and A/V jacks into one plate.
LOT COLOR DISCLAIMER: My Cable Mart manufactures and purchases their grommets, wall-plates, keystone inserts, decora frames, and other ABS and PVC products from MULTIPLE different factories and suppliers. As such, we cannot guarantee that a product listed as the SAME COLOR will exactly match another product also with that same color due to lot dye differences. Color shown on photo is an approximate representation of the actual color.
