Connector A: | RJ45 Ethernet Female |
Color: | Metallic |
Ship Weight:
|
0.08 lbs |
Warranty: |
Ltd Lifetime |
Tariff Code: |
8536.69.40.30 |

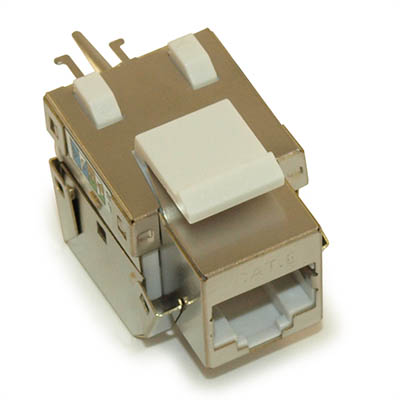

Cat.6 RJ-45 shielded keystone jack is 8-position 8-conductor (8P8C) and designed for computer networking. It is engineered to provide full shield protection and reliability, supporting up to Gigabit Ethernet applications. The advanced printed circuit board design is tuned to provide optimum signal quality with maximum headroom, allowing it to exceed TIA/EIA Category 6 performance standards. Use with shielded Ethernet cable.
Specifications and Details- CAT 6 rated connectors provide excellent performance for data networks requiring maximum speed and bandwidth
- PCB technology provides maximum performance and superior signal quality
- Terminate with 110 punch down tool
- 4 x 4 termination layout
- Includes an integrated TIA-568A/B color wiring diagram
- Backwards compatible to all lower rated category components
- Compatible with MOST wall-plates, surface mount boxes, and blank patch panels

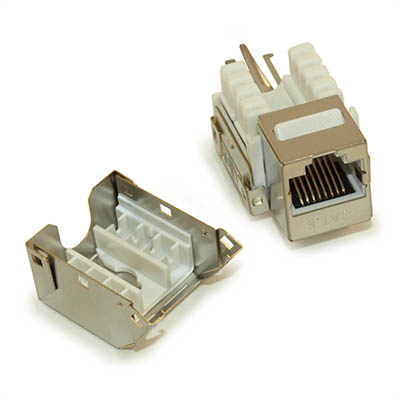

- Termination cap included
- Individually packaged
CAUTION: Due to the wider format of this keystone, "side-by-side" installation into certain narrow formatted wall-plates or patch panels may not be possibleMy Cable Mart Keystone WALL-PLATES and INSERTS all adhere to NEMA standards. Keystone insert modules have a rectangular face of 14.5mm wide by 16.0mm high, and are held in place with flexible tabs. This allows them to be snapped into a mounting plate with correspondingly-sized holes called ports. All keystone inserts, regardless of the type of jack they carry are interchangeable and replaceable. This provides for much flexibility in arranging and mounting many different type of electrical and A/V jacks into one plate.
