| Connector A: | 3.5mm TRRS 4 Conductor Male |
| Connector B: | 3.5mm TRRS 4 Conductor Female |
| Color: | Black |
|
Ship Weight:
|
0.06 lbs |
|
Warranty: |
Ltd Lifetime |
|
Tariff Code: |
8544.42.20.00 |

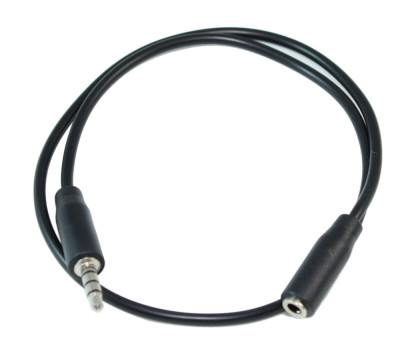

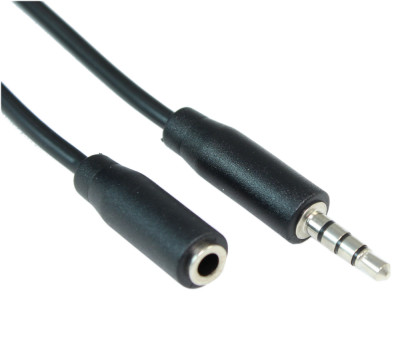

EXTENDS a connection for stereo audio & microphone devices requiring 4 conductors (left and right audio and microphone plus ground). This cable MAY also be suitable for left/right audio, 1 video (composite) and ground. This cable has a PVC jacket, molded ends with strain relief, and inner hood soldered 360 degrees.
Specifications:
- Connectors: 3.5mm (1/8") Male and Female
- 4 conductor, connected straight through
- New Design SLIM Molded end to get into tight spots!
- Outer Diameter of Cable: 3.00mm
- Outer Diameter of Molded Connector: 8.4mm
- 4 individually PVC protected 28AWG (Red, White, Green, Yellow)
- Conducting Wire: 7*0.12mm Copper, PVC OD: 3.5mm, black color
- Cable Shielding: No
- Connector ends: Nickel Plated
Compatibility Note: This cable MAY not be compatible with products that make use of volume or switching control
