| Connector A: | BNC Male |
| Connector B: | BNC Male |
|
Ship Weight:
|
2.83 lbs |
|
Warranty: |
Ltd Lifetime |
|
Tariff Code: |
... |

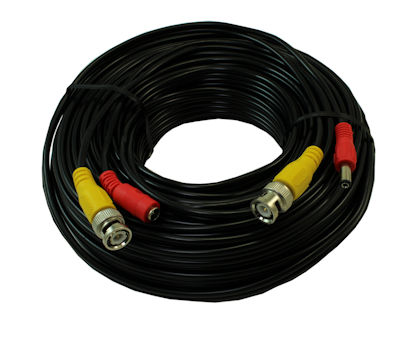

This cable is designed to provide both a video and power connection to a CCTV security camera. The video line is made of 22 AWG shielded RG-59 video cable with an impedance of 75 ohms. Each end is terminated in a male BNC connector. The power line is made with a pair of 18AWG copper conductors. One end is terminated with a male DC power connector, while the other end has a female version. The DC connectors have an outside barrel diameter of 5.5mm and an inside pin diameter of 2.1mm.
