| Connector A: | 3.5mm TRRS 4 Conductor Male |
| Connector B: | 3.5mm TRRS 4 Conductor Female |
|
Ship Weight:
|
0.04 lbs |
|
Warranty: |
Ltd Lifetime |
|
Tariff Code: |
8536.69.40.10 |

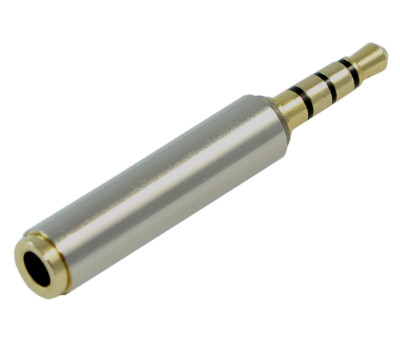

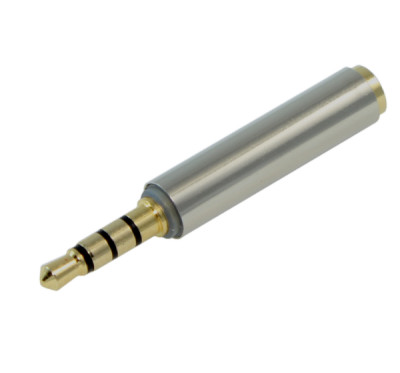

This product is a SPECIALIZED CTIA to OMTP (or vice versa) 4 conductor adapter. Most devices need a STRAIGHT THROUGH extension adapter. Use this adapter if you have a device that uses the CTIA wiring standard and need to convert to the OMTP wiring standard (or vice versa)
3.5mm
4 Conductor MALE to 3.5mm
4 Conductor FEMALE Extender/Adapter
- Shielded
- Gold Plated conductors
- Outer Diameter: 6.79mm (Slim Design)
- Ideal for use with Smart Phone use with Credit Card swipers, or cables that have a thicker housing.
- Tested with PAYPAL and INTUIT card readers that need a 4 conductor connection
- PIN Assignment (Male:Female) 1:1, 2:2, 3:4, 4:3
- See PRODUCT MANUAL for pin assignment drawing
