Our Hidden IR Repeater System allows you to relocate your entertainment system into another room or hiding them in a less obtrusive view, or perhaps sharing a Blu-ray player between two rooms by using an existing remote to control up to eighteen audio/video components. The built-in IR distribution technology gives you the ability to conceal, yet still control, bulky electronic equipment such as a cable or satellite TV receiver, stereo receiver or amplifier, CD player, DVD player, Blu-ray player, or virtually any component controlled by an IR signal. Compatible with nearly all electronic devices that use INFRA-RED (IR) for remote control, such as DirectTV(TM), Xfinity(TM), Ruku(TM), etc
The system uses an IR receiver to take in the IR signals from an existing remote control and distribute those signals via IR emitters to A/V components. No more leaving cabinet doors open or struggling to remotely access your hidden equipment, you'll be able to control up to eighteen components from up to 40 feet away with extreme reliability. Add the
NW-95T3471 remote receiver and connect to the block terminals (if desired)
Product Details and Specifications:

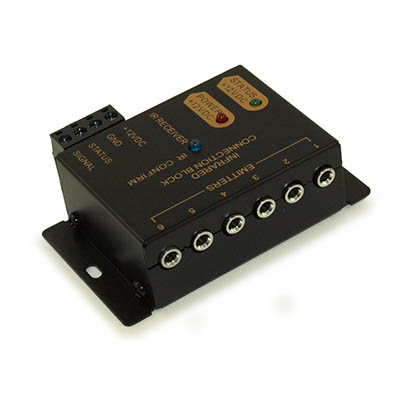

- There are a total of six IR Emitter ports on the connecting block.
- Control up to 12 devices (additional dual emitters required)
- Two Dual IR emitters are included with this kit to control up to 4 devices
- Additional Single, Dual and Triple IR emitters are sold separately.
- (2) IR emitter cords (Mono 3.5MM cables): 10ft
- (1) IR Receiver Bar Cord (Stereo 3,5mm cable type): 10ft
- Power Cord Length: 6ft
- Frequencies supported: 38Khz and 56Khz (Dual Band)
- Range: 40ft at 38Khz, 70ft at 56Khz
- Power: 12v DC, 200MA

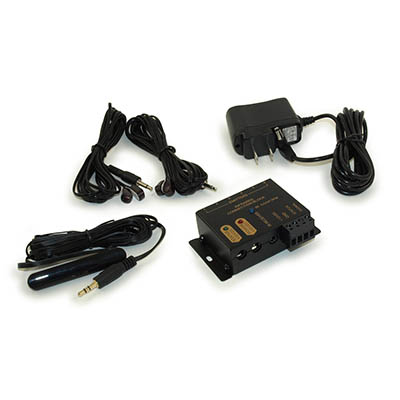

Included in Package:
- 1 IR Connecting Block
- 1 IR Receiver with 10ft cord
- 2 IR emitters with 10ft cord
- 1 Plug-in power supply with 6ft cord
- 2 Mounting screws
- Instruction Manual
Installation Note: if you need to EXTEND the emitter or receiver cables, be sure to use the correct 3.5MM cable type
