| Color: | White |
|
Ship Weight:
|
35.45 lbs |
|
Warranty: |
Ltd Lifetime |
|
Tariff Code: |
8544.42.20.00 |

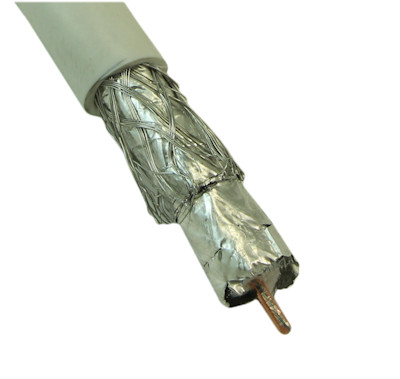

RG6 Quad Shield is great for Hi-Impact Acoustics, antennas, cable television and satellite installations, Its durable 18 AWG copper clad steel center conductor is surrounded by foam polyethylene dielectric. Sweep testing ensures 3.0GHz performance at applicable frequencies.
Features:
- 18AWG Solid .040 Bare Copper-Clad Steel Conductor
- (2) 100% Aluminum-Mylar Shielding
- Outer Diameter (OD): ~7.4mm
- Impedance: (+/- 3.0 Ohms) 75 Ohms
- (2) 60% Aluminum Braid
- Gas Injected Foam Polyethylene Insulation
- CM/CL2 Rated PVC Jacket
- Sweep Tested to 3.0GHz
- Sequential Foot Markers
- CMR Rated
- UL and CUL Listed

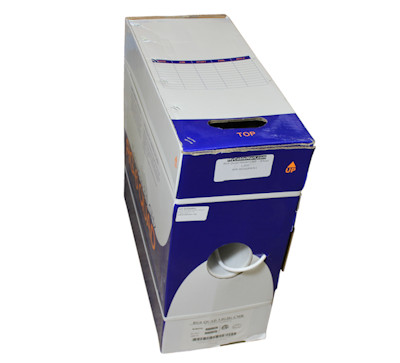

NOTE: This product may ship as either a PULL-BOX or WOODEN SPOOL depending on inventory availability
LOT COLOR DISCLAIMER: My Cable Mart manufactures and purchases their grommets, wall-plates, keystone inserts, decora frames, and other ABS and PVC products from MULTIPLE different factories and suppliers. As such, we cannot guarantee that a product listed as the SAME COLOR will exactly match another product also with that same color due to lot dye differences. Color shown on photo is an approximate representation of the actual color.
