| Connector A: | RCA/Phono Male |
| Connector B: | RCA/Phono Male |
| Color: | Black |
|
Ship Weight:
|
0.14 lbs |
|
Warranty: |
Ltd Lifetime |
|
Tariff Code: |
8544.42.20.00 |

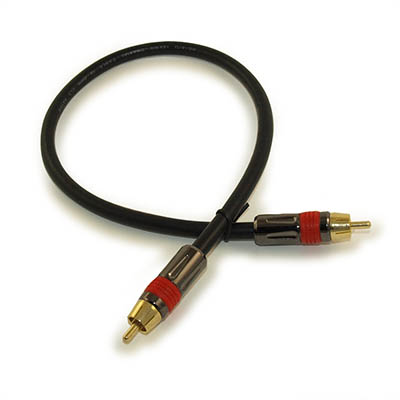

This single wire PREMIUM Gold Plated RCA cable is suitable for S/PDIF Audio Connections (Typically an Orange Connector), Legacy Composite Video Connection (normally with a yellow connector), and Sub-Woofer Connectors. This premium cable has braid shielding to prevent electrical interference and shielded 75ohm coax conductors to maximum audio performance. This cable can be bundled together for component audio and video application and also works for sub-woofer applications. It also has molded and Yellow color-coded with gold-plated connectors. It is RoHS-2 compliant
Specifications:
- Connectors: single RCA Plug (male) to single RCA Plug (male)

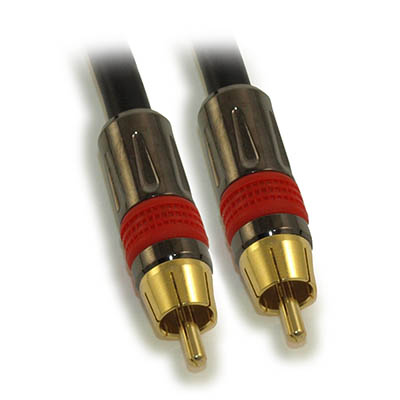

- 24k Gold Plated 8-cut connectors ensure long-lasting, corrosion-free connections
- Cable Outer Diameter: 7.0mm
- Fully molded connecters provide excellent strain relief
- High-quality coax wire with copper braid shield reduces unwanted noise and distortion
- Gold-plated, RCA connectors give you solid, corrosion-free contact
- Easy installation with non slip rubber grip
- Improves digital signal delivery as compared to standard RCA type audio cables
- True digital signal maintained by high materials and connectors
- 99.999% Pure Copper Non-OFC conductor
- THICK 18AWG 75 Ohm RG6/u Coax Copper Wire
- Conduction Impedance: 3 Ohms
- Pure Copper 99.99%, #144 Braid
- PVC Jacket Outer Diameter: 7.0mm
- High-density double shielding for max rejection of EMI and RFI
What is SPDIF? - S/PDIF (Sony/Philips Digital Interface) is a standard audio transfer file format. It is usually found on digital audio equipment such as a DAT (Digital Audio Tape) machine or audio processing device. It allows the transfer of audio from one file to another without the conversion to and from an analog format, which could degrade the signal quality.
