| Connector A: | HDMI Standard Type A Female |
| Connector B: | RCA/Phono Female |
|
Ship Weight:
|
0.54 lbs |
|
Warranty: |
Ltd Lifetime |
|
Tariff Code: |
8525.50.30.35 |
IMPORTANT TECHNICAL NOTE: There are known incompatibilities with older CRT (tube-based) televisions that will NOT successfully accept a converted HDMI signal. MyCableMart is UNABLE to confirm in advance whether your specific CRT will be compatible. Purchases intended for older CRT's will be accepted for return however please note that MyCableMart does not provide return shipping nor refund original shipping in such cases.

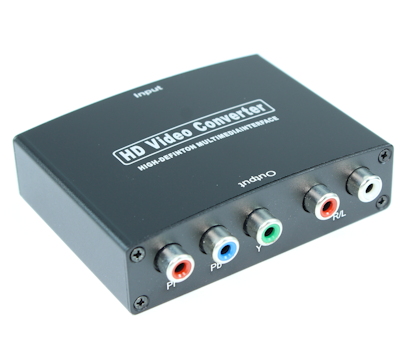

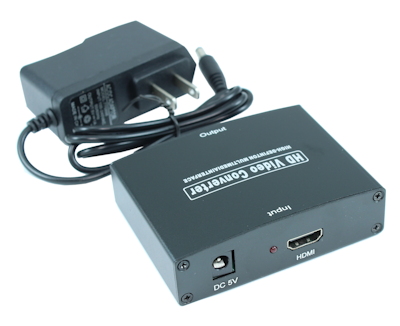

This product converts HDMI (Input) into COMPONENT (Output). Input digital HDMI video/audio for output COMPONENT (YPbPr) Video with RCA L/R Audio. Use to connect a newer source device with HDMI to an older television, monitor or projector with COMPONENT Video/Audio. It is a low power device consuming only 5V/1Amp of power (power supply included). Note that resolution is automatically determined and cannot be selected manually. See important technical note above for possible CRT incompatibility.
Specifications and Features:- Power: 5V/1A included
- Input: HDMI signal, bandwidth 165M, HDMI 1.3 compatible, HDCP 1.2 Support
- Output: YPBPY signal output with the same resolution as the input HDMI signal, stereo sound signal output
- Audio Format: LPCM
- YPBPR signal impedance matching: 75Ohms
- Support HDMI input format is as follows: 480P (60Hz), 576P (50Hz), 720P (50 / 60Hz), 1080i (50 / 60Hz)
- Support YPbPr output format is as follows: 480P (60Hz), 576P (50Hz), 720P (50 / 60Hz), 1080i (50 / 60Hz)
- HDMI and Component Video (RCA) cables NOT included (required)
