| Connector A: | DisplayPort Male |
| Connector B: | DisplayPort Male |
| Color: | Black |
|
Ship Weight:
|
0.70 lbs |
|
Warranty: |
Ltd Lifetime |
|
Tariff Code: |
8544.42.20.00 |

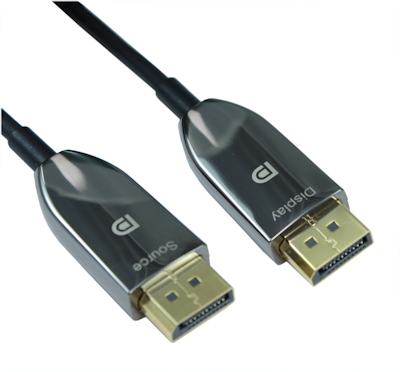

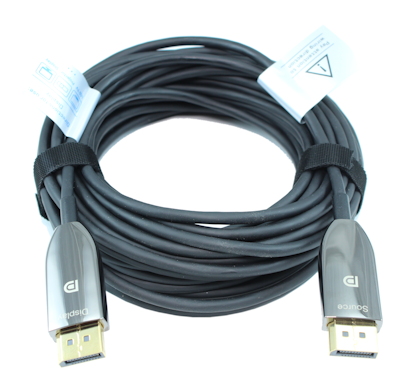

DisplayPort version 1.4 was approved in March of 2016. DisplayPort v1.4 offers dazzling resolutions up to 8K@60Hz, with support also for 4K@120Hz, and of course previous v1.2 resolutions and features. This standard increases overall transmission bandwidth to 32.4 Gbit/s with the new HBR3 mode featuring 8.1 Gbit/s per lane (up from 5.4 Gbit/s with HBR2 in version 1.2), for a total data throughput of 25.92 Gbit/s after factoring in 8b/10b encoding overhead. This bandwidth is enough for a 4K UHD display (3840 x 2160) at 120 Hz with 24 bit/px RGB color, a 5K display (5120 x 2880) at 60 Hz with 30 bit/px RGB color, or an 8K UHD display (7680 x 4320) at 30 Hz with 24 bit/px RGB color. DisplayPort 1.4 adds support for Display Stream Compression 1.2 (DSC) and extends the maximum number of inline audio channels to 32. This cable is a FIBER OPTIC Hybrid cable using state of the art fiber optics to deliver the video and audio to 8K@60Hz. The SOURCE and DISPLAY connector ends draw power from the DisplayPort devices.
Specifications and Features- Supports DP v1.4 (to 8K@60Hz)
- Resolution support to 8K@60Hz
- HBR3 (High Bit Rate 3): 8.10 Gbit/s per lane
- Audio: Sample Rate - 1536 kHz / 24bits / 32channels
- Color: Black
