Connector A: | USB Type Micro-B Female |
Connector B: | USB Type Micro-B Male |
Ship Weight:
|
0.03 lbs |
Warranty: |
Ltd Lifetime |
Tariff Code: |
8544.42.20.00 |

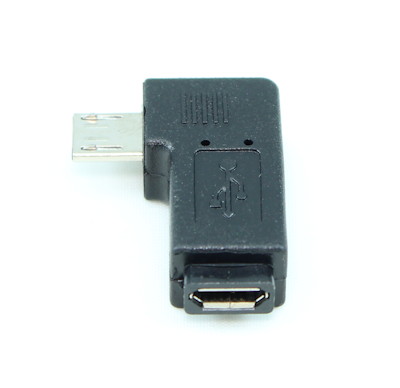

Micro USB-B Male to Micro USB-B Female LEFT Angle Adapter. Suitable for smart-phone or other Micro-B devices for voltage and data connectivity (4 of 5 connected leads).
Specifications:- Micro-B 5pin Female
- Micro-B 5pin Male
- Nickel Plated
- Pin-out: 1-1, 2-2, 3-3, 5-5. PIN 4 is NOT connected (and generally not needed)
- Supports charge and Data (Fully Wired/Pinned)
- Short Length: 14.4mm
- Long Length: 26.5mm
NOTE: Please carefully view the photo to make sure you are ordering the CORRECT orientation. Please see part
FE-ADT-256 for the alternative angled product.
