Ship Weight:
|
40.24 lbs |
|
Warranty: |
Ltd Lifetime |
|
Tariff Code: |
8302.50.00.00 |

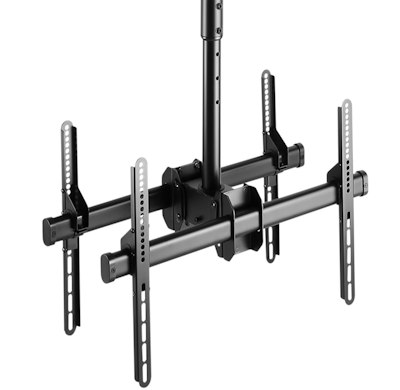

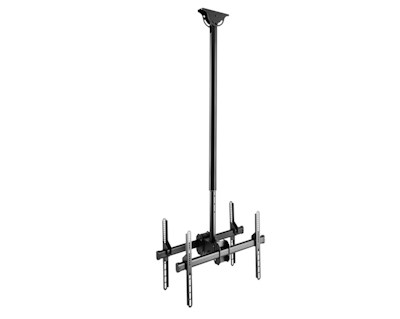

Our PLB-CE946-01XLD is a flexible ceiling mount designed to provide extra possibilities by allowing two screens to be placed back-to-back. Tilting ceiling plate for flat and sloping ceiling application. It allows displays to tilt and swivel around the pole without tools. Universal mounting pattern fits virtually any 37 to 70inch flat panel TVs. Each mount holds up to 45kg / 99lbs. Features adjustable height for perfect TV positioning and a wire management channel to keep cables concealed and organized. The vertical pole is a 2-pole assembly which now EXCLUDES the additional center pole extension pole (additional poles sold separately, see part
LU-PLB-CE946-01XLD-SP01
The HEIGHT of this mount can be incrementally changed by ordering separately our
LU-PLB-CE946-01XLD-SP01 extension pole. Up to TWO additional extension poles can be added to this mount to extend the height up to 160 inches (ceiling to center point of mount). Both the LOWER and UPPER poles are included in the base configuration.
You can use it for a SINGLE TV simple by discarding and not attaching the second plate. This mount will tilt DOWN 20 degrees, and UP 5 degrees.
Specifications:- Maximum weight capacity: 198lbs (2 TVs)
- TV mount plate: 23.8 x 15.9 inches
- VESA Spec: 200x200 to 600x400
- Mount Tilt: 5 degrees up, 20 degrees down
- Pole Tilt (At Ceiling): Yes
- Pole Height: 55 to 76 inches adjustable (2 actual poles)
- Up to 160 inch height when optional LU-PLB-CE946-01XLD-SP01 pole purchased (NOT included)
- Solid toughened steel construction
- Durable scratch resistant
- Black Finish
- Easy installation
- Mounting hardware
