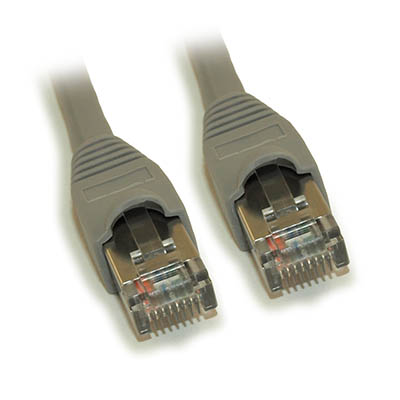

| Connector A: | RJ45 Ethernet Male |
| Connector B: | RJ45 Ethernet Male |
| Color: | Gray |
|
Ship Weight:
|
3.93 lbs |
|
Warranty: |
Ltd Lifetime |
|
Tariff Code: |
8544.42.20.00 |

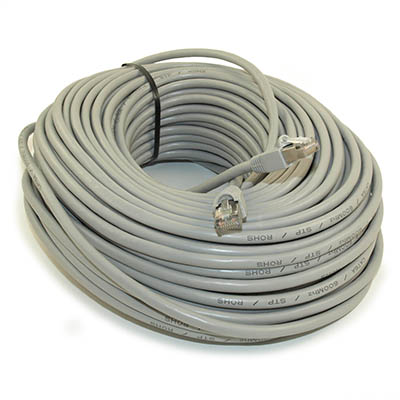

Connects any CAT6 or CAT6A (Shielded) application such as computer to hub, patch panel or wall jack. Augmented CAT-6 or CAT-6A as it is referred is capable of supporting data transfer rates of up to 10Gbps at a maximum bandwidth of 500MHz. CAT-6A has additional and tighter twists, with additional insulation to reduce cross talk.CAT-6A is also backwards compatible with CAT-6 and CAT-5e, however, speeds are always limited and will perform to the lowest category cable or connector that is installed in the link.CAT-6A is fast becoming the lowest cost effective solution as it is seen as a future proof cable system. CAT-6A components are used in Class EA networks as defined in ISO/IEC 11801 and TIA/EIA 568. CAT6A is now the recommended standard for PoE installations. CAT6A is fully backward compatible to CAT6 standards.
Technical Specifications:- 26AWG Copper twisted pairs
- Suitable for any 10Mbit, 100Mbit, 1GB network standards up to 330ft segment runs
- 550Mhz Category 6, exceed IEEE standards suitable for 1Gbit networks.
- SHIELDED Twisted pairs (STP) suitable for most business and home network installations
- CM NEC Rated for In-wall installation (Home or business)
- Meets EIA/TIA TSB-40A for Stranded 568B standards
- Double shielded: Each pair foil shielded / 4 pair braid shielded
- Metal shielded RJ-45 connectors
- 50u Gold Plated contacted
- Molded Strain Relief boot connectors
- RoHS-2 Compliant
- See TECH DOC for drawing and additional technical information
- NOT UL Listed, but meets UL standards
