| Connector A: | VGA HD15 Male |
| Connector B: | VGA HD15 Female |
| Color: | Black |
|
Ship Weight:
|
0.18 lbs |
|
Warranty: |
Ltd Lifetime |
|
Tariff Code: |
8544.42.20.00 |

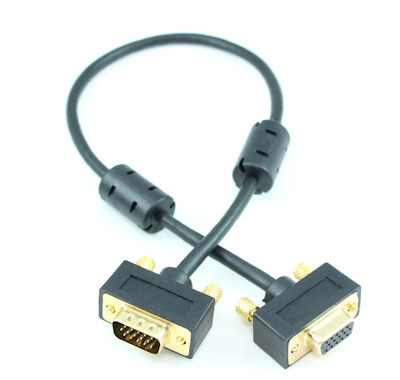

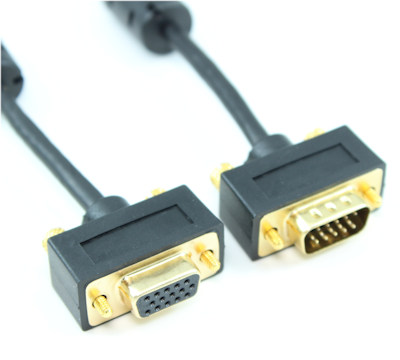

PortSavers protect the wear and tear of HD15 port! This male to female cable provides a pigtail connection on HD15 port if space is tight or the port is being used for testing purposes. It can also be used as extension cable. Supports all VGA/QXGA monitors including analog flat panel display, high resolution desktop, CAD and graphic workstations. It is fully-wired for maximum compatibility with both PC and HDTV applications. UltraThin diameter provides space-saving design and flexibility not found on regular VGA cables. Interchangeable mounting allows you to replace the thumbscrews with stand-off screws (not included) and can be mounted on a face plate.
Specifications:- Fully wired (all 15 wires terminated)
- 30AWG copper wire conductors
- Fully shielded Mylar/Braid
- 2 Ferrite Cores for added EMS protection
- HD15P Male to HD15P Female Connectors
- Length: 1ft
- PVC Over-mold shells
- Cable OD: 5.5mm, black
- Thumb screws at both ends.
- Female receiving nuts NOT supplied at female end
