| Connector A: | Serial DB9 (RS-232) Male |
| Connector B: | Euroblock/Phoenix |
|
Ship Weight:
|
0.16 lbs |
|
Warranty: |
Ltd Lifetime |
|
Tariff Code: |
8536.69.40.10 |

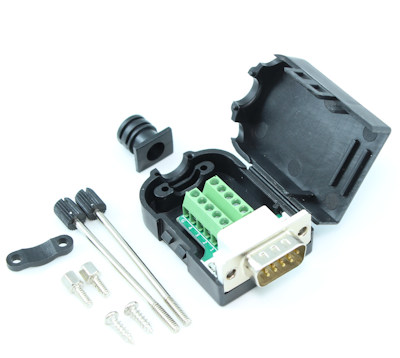

DB9 male adapter plate connector signal module, RS232 serial DB9 9-pin to 4+5 positions screw terminal block. The screw terminal block wire range is 24-12awg, and the pitch is 5.08mm.
Specifications and Features:- DB9 male adapter, total Size: 45 x 31 x 18mm/1. 8" x 1. 2" x 0. 71" (L*w*h)
- Hole diameter with 1 grommet, 7mm inside diameter for cable
- Package content : 1 x DB9 female adapter, 1 grommet, 2 screws, 1 wire clamp, 1 terminal block (numbered)
- Male connection screws (2) AND hex nuts (2) both included allowing for any serial connection type
- Protective plastic cover included to protect connection points
- The hood can be totally removed if desired
