| Connector A: | RJ45 Ethernet Male |
| Connector B: | RJ45 Ethernet Male |
| Color: | Gray |
|
Ship Weight:
|
0.08 lbs |
|
Warranty: |
Ltd Lifetime |
|
Tariff Code: |
8544.42.20.00 |

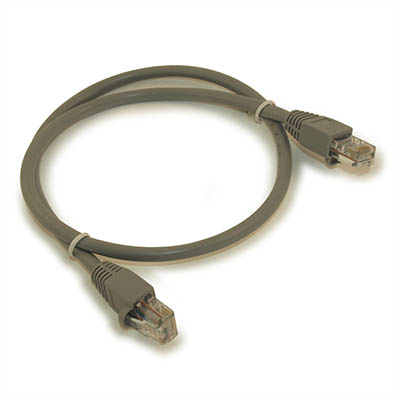

Connects any CAT5 or CAT5E (Enhanced) application such as computer to hub, patch panel or wall jack. This 350MHz CAT5E PVC stranded patch cord meets TIA/EIA 568A specifications, and support all CAT5E and other high speed applications. Uses stranded wires for added cable flexibility.
Technical Specifications:- 26AWG Copper twisted pairs
- Suitable for any 10Mbit, 100Mbit network standards up to 330ft segment runs
- 350 Mhz Category 5E, exceed IEEE standards suitable for 100Mbit networks. May support 1Gbps in shorter lengths
- Unshielded Twisted pairs (UTP) suitable for most business and home network installations
- CM NEC Rated for In-wall installation (Home or business)
- Meets EIA/TIA TSB-40A for Stranded 568B standards

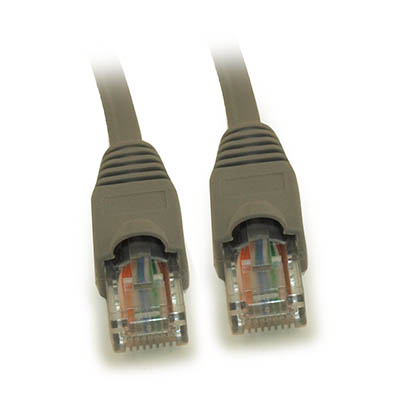

- 50u Gold Plated contacted
- Molded Strain Relief boot connectors
- RoHS Compliant
- See TECH DOC for drawing and additional technical information
- NOT UL Listed, but meets UL standards
