| Connector A: | BNC Female |
| Connector B: | SMA Antenna Male |
|
Ship Weight:
|
0.05 lbs |
|
Warranty: |
Ltd Lifetime |
|
Tariff Code: |
8536.69.40.10 |
SMA (SubMiniature version A) connectors are semi-precision coaxial RF connectors developed in the 1960s as a minimal connector interface for coaxial cable with a screw-type coupling mechanism. The connector has a 50 ohm impedance. An SMA female connector has the threaded connector end and a center pin. The SMA connector employs a 1/4-inch diameter, 36-thread-per-inch threaded barrel. The male is equipped with a hex nut measuring 5/16 inch (0.3125 inch / 7.9 mm) across opposite flats, thus taking the same wrench as a #6 SAE hex nut. SMA connectors are commonly used for antenna applications.

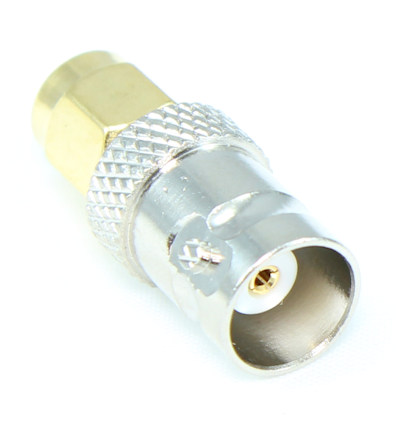

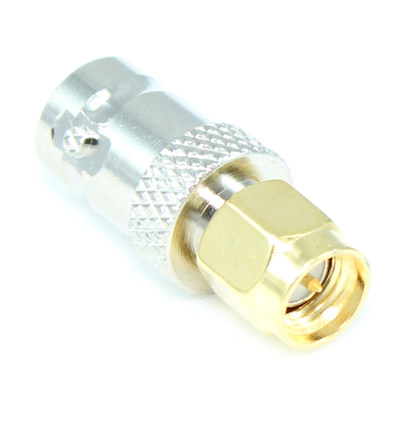

Specifications:- End 1: BNC Female
- End 2: SMA Male
- Nickel Plated
- 75 Ohms
