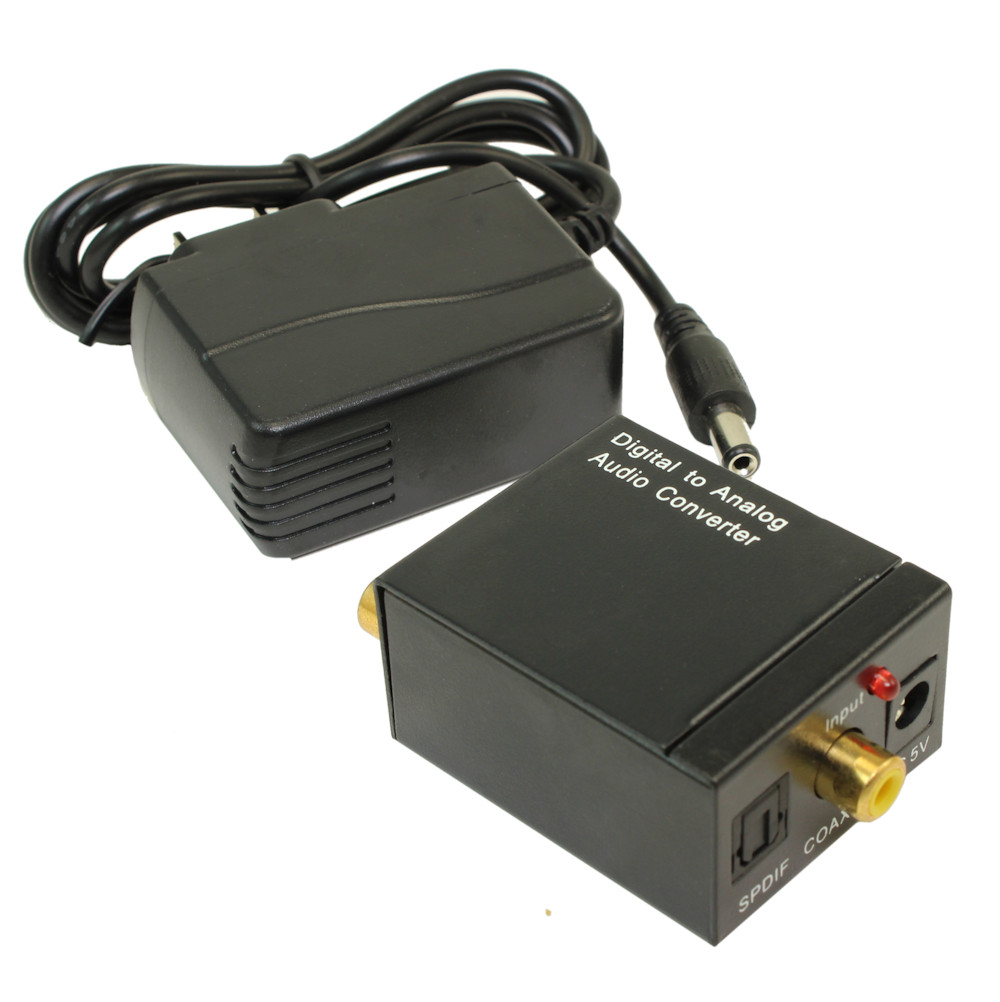

Digital Audio (Toslink or Coax) to Analog Audio Converter PLUS 3.5mm Output

Lengths Available:
Colors Available:
Part Numbers this model:	ZT-T-609S

Sales Category:	Optical Cables	Wire Gauge (AWG):	Not Specific / Not Applicable
Connector A:	Toslink Optical Audio Female	Specification:
Connector B:	RCA/Phono Female	Number Ports:	N/A
Export Tariff Code (HST):	8525503035	Transfer Rate:
Feature / Style:		Images Length/Size Shown:	EA
# Positions:		Shielding:
Convert From/To:		Type:	Toslink to RCA

The Digital to Analog Audio Decoder will accept a 2 channel PCM digital audio input and output 2 channel analog audio. This product does not work with bitstream audio and/or will not downmix multichannel audio to stereo output.

Specifications
1. Input ports: 1 x Toslink/SPDIF, and 1 x Coaxial (RCA Type)

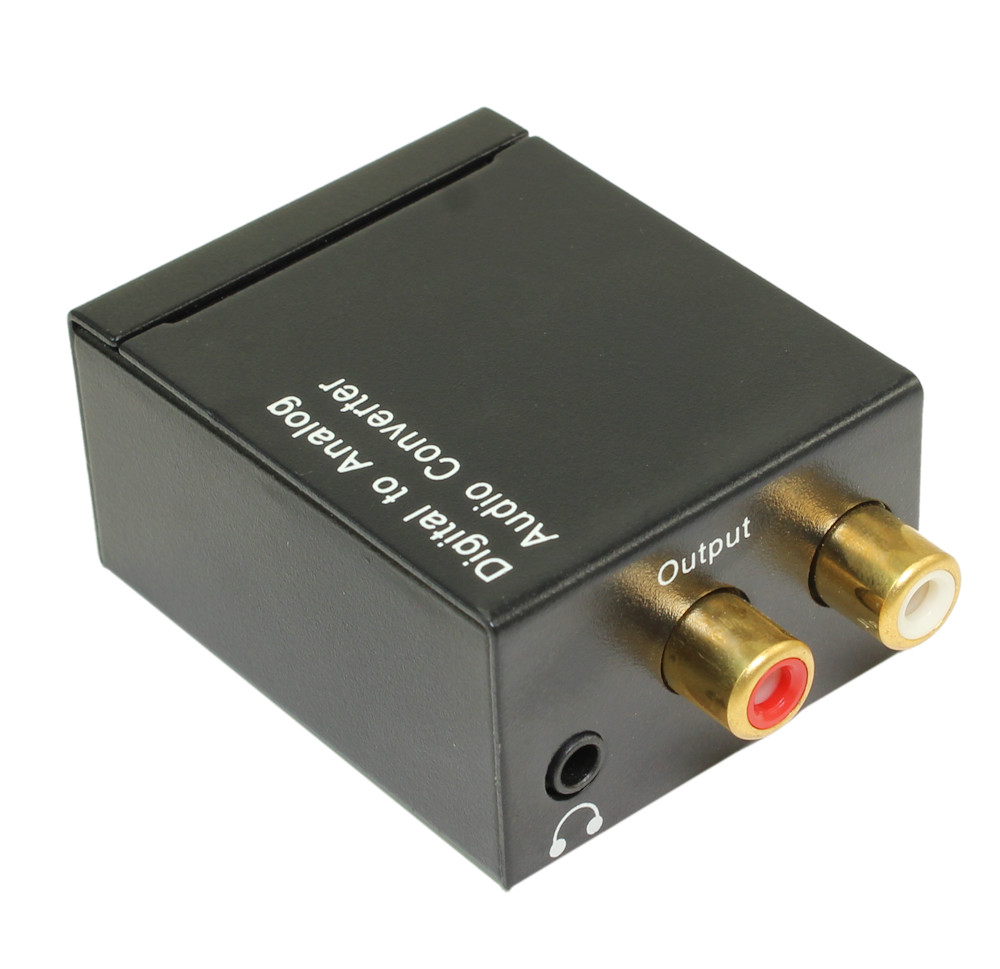

2. Output ports: 2 x RCA (Left/Right), 1 x 3.5mm Stereo Phone Jack.
3. Signal to Noise: 120db
4. Degree of Separation: 85db
5. Frequency Response: (20Hz ~ 20KHz) +/- 0.5db
6. Dimensions (mm): 72(D) x 55(W) x 20(H)
7. Weight (g): 40g

Contents
1. Main Unit (Digital to Analog decoder)
2. 5volt AC/DC Power Adapter (110/240v)
3. User Manual
