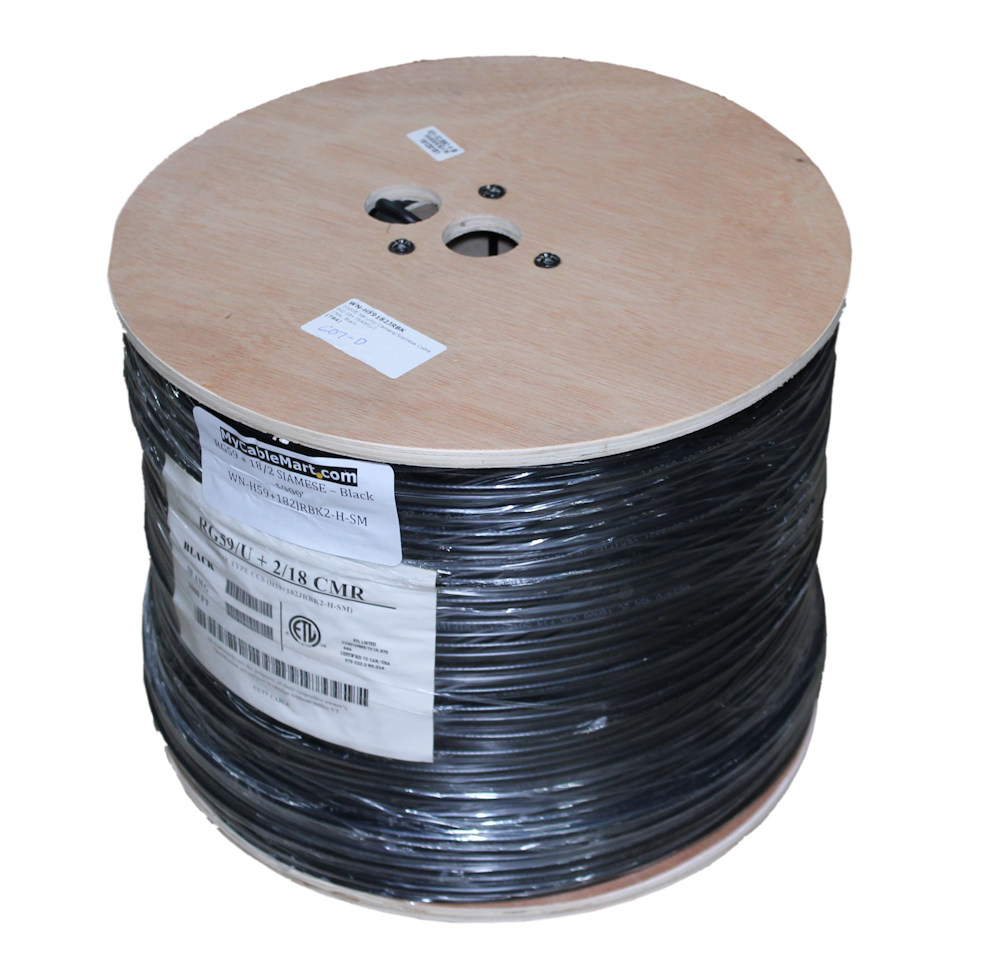

1000ft Security Camera/Siamese Cable RG-59+18AWG/2 CMR, Black


 Lengths Available:
 Colors Available: Black
 Part Numbers this model: WN-H59182JRBK

 Sales Category: RG6 Coax Cables and Adapters  Wire Gauge (AWG): 20 AWG
 Connector A: *Not Applicable*  Specification:
 Connector B: *Not Applicable*  Number Ports: N/A
 Export Tariff Code (HST): 8544422000  Transfer Rate:
 Feature / Style: Images Length/Size Shown: 1000 FT
# Positions: Shielding:
Convert From/To: Type:

Perfect cable for installation and wiring of security systems that require RG59 18AWG/2 cable

Specifications
  • RG59/U Coax Cable
  • 18AWG 1 Pairs Solid Conductors (2 conductors TOTAL)
  • PVC Black Jacket
  • CMR/FT4 Rate (3180662)
  • 500 ft. / Reel inside Box
  • ETL Certified
  • Center Conductor: 20AWG, CCS, Diameter 0.813mm
  • Dielectric: Material-Foam PE, Diameter 3.66mm
  • Outer Conductor: 18AWG, CCA, 95% Braiding
  • Power Cable: 18AWG, Solid Copper (CU), Diameter 1.8mm
  • Jacket Material: PVC (Black/White), Cable Diameter: 6.1mm
