1000ft CAT6A Bulk Network Cable, STP/FTP 550Mhz 10Gbits SHIELDED, Blue

Lengths Available:
Colors Available:
Part Numbers this model:	WN-6A04FRBL2

Sales Category:	CAT 6 Networking Cables	Wire Gauge (AWG):	24 awg
Connector A:	Not Applicable	Specification:
Connector B:	Not Applicable	Number Ports:	N/A
Export Tariff Code (HST):	8544422000	Transfer Rate:
Feature / Style:		Images Length/Size Shown:	1000 FT
# Positions:		Shielding:
Convert From/To:		Type:	Multi-Pair, Cat6

The latest standard from the TIA for enhanced performance standards for twisted pair cable systems was defined in February 2008 in ANSI/TIA/EIA-568-B.2-10. Category 6a (or Augmented Category 6) is defined at frequencies up to 500 MHz "twice that of Cat. 6. Category 6a performs at improved specifications, in particular in the area of alien crosstalk as compared to Cat 6 UTP (unshielded twisted pair), which exhibited high alien noise in high frequencies.

The global cabling standard ISO/IEC 11801 has been extended by the addition of amendment 2. This amendment defines new specifications for Cat. 6A components and Class EA permanent links. These new global Cat. 6A/Class EA specifications require a new generation of connecting hardware offering far superior performance compared to the existing products that are based on the American TIA standard.

The most important point is a performance difference between ISO/IEC and EIA/TIA component specifications for the NEXT transmission parameter. At a frequency of 500 MHz, an ISO/IEC Cat., 6A connector performs 3 dB better than a Cat. 6A connector that conforms with the EIA/TIA specification. 3 dB equals 100% increase of near-end crosstalk noise reduction when measured in absolute magnitudes;

Specifications:

23 AWG., 4 Twisted Pairs (UTP)

UL Verified and Registered

TIA/EIA (ETL)

PVC Multi-Color Jacket

Solid Copper Wire core for easy connections

Shielded Twisted Pair (STP/FTP CMR)

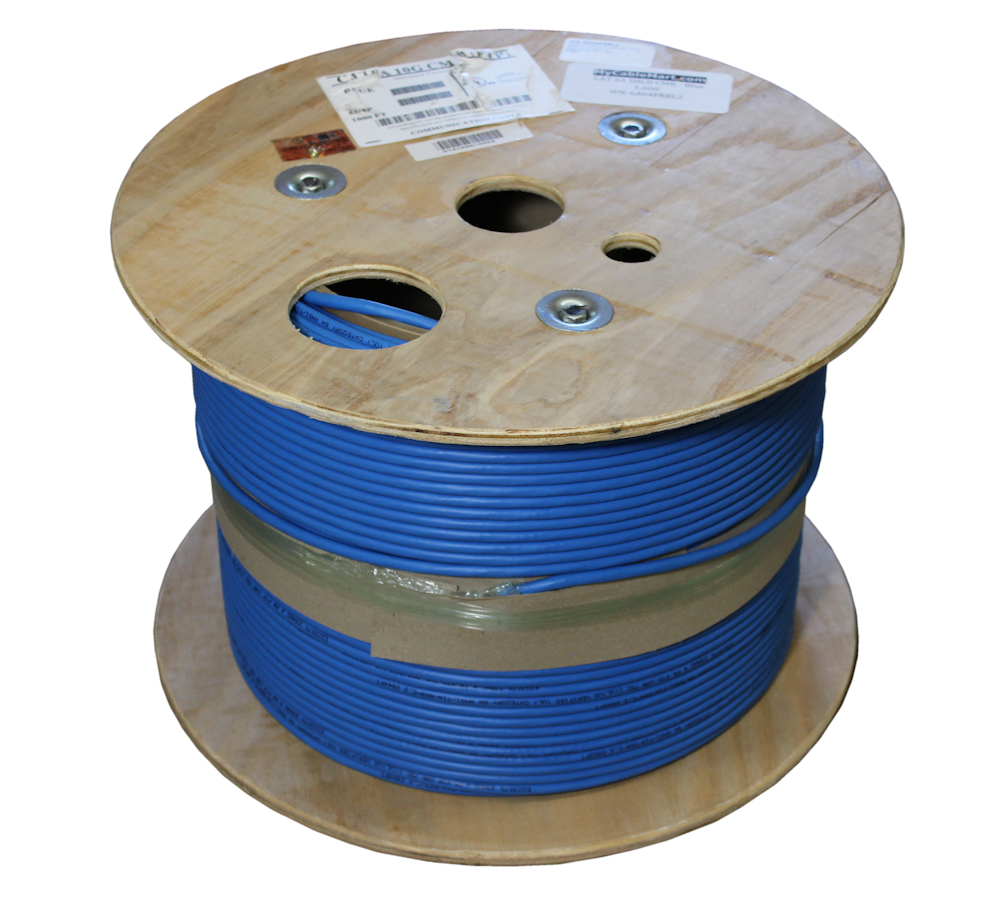

1,000 ft. / Reel on Wooden Spool
