HDTV Off-Air UHF Antenna, Compact, Side/Roof Mount, up to 30 Miles


 Lengths Available: ea, ea, ea, ea, ea, ea, ea, ea,
 Colors Available:
 Part Numbers this model: NW-55W7740, NW-55W7741, NW-25AC5066, NW-25AC5067, NW-88W2140, NW-29X0161, NW-71Y5463, NW-84Y7953,

 Sales Category: Antennas  Wire Gauge (AWG): Not Specific / Not Applicable
 Connector A: *Not Applicable*  Specification:
 Connector B: *Not Applicable*  Number Ports: N/A
 Export Tariff Code (HST): 8544422000  Transfer Rate:
 Feature / Style: Images Length/Size Shown: EA
# Positions: Shielding:
Convert From/To: Type:

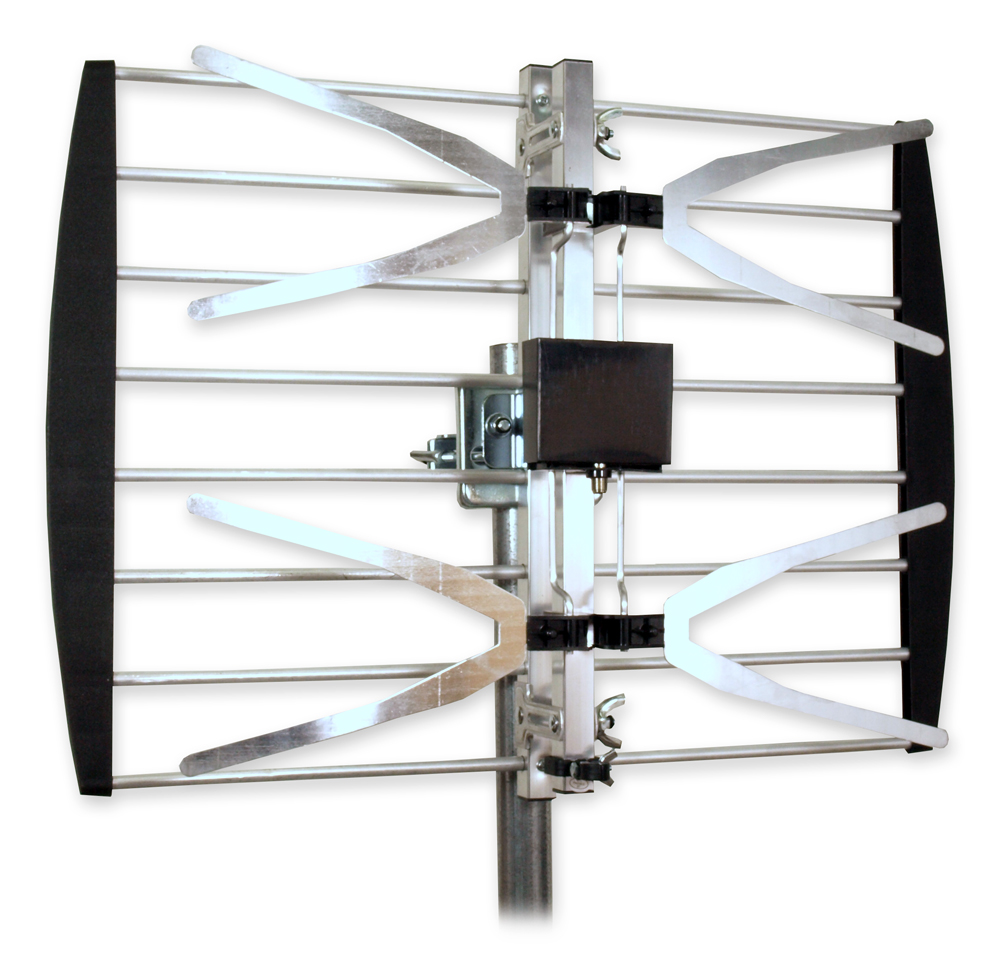

Dual Bay Outdoor UHF/HDTV Bowtie Antenna. Compact directional antenna is engineered to receive UHF signals for digital and high definition television. Bowtie design provides wider pickup pattern, ideal when channels not all in the exact same direction. Vertical profile makes this ideal for attic mounting. Both VHF and UHF signals in general can be successfully received using this antenna when mounted in a location facing your antenna array.

  • Features:
  • Stacked dual bay design for increased gain
  • Pre assembled antenna sections for reduced installation time
  • Heavy duty construction with rugged mast clamps and associated hardware
  • Normal Mount Location: Side of House facing antenna array location

    Specifications:
  • Nominal range: Approx 30 miles
  • Frequency range: 460 ~ 862Mhz (covers all digital channels)
  • Maximum gain: 8dB
  • Maximum front/back ratio: 22dB
  • Horizontal beam width: 60 degrees
  • Impedance: 75ohm, female “F” connector
  • Overall height: 15.75”

NOTE: Mast (pole) not included. See related products at RIGHT for suitable mounting pole. Your TV MUST have a built-in TV tuner to receive “over-the-air” TV signals. Please consult your TV manual.

If SIDE-MOUNTING, be sure to order the Side-Mounting Clamp Kit
