HDTV Off-Air UHF Antenna, Full Sized, Roof/Attic Mount, up to 80 Miles

Lengths Available:	ea, ea, ea, ea, ea, ea, ea, ea,
Colors Available:
Part Numbers this model:	NW-55W7740, NW-55W7741, NW-25AC5066, NW-25AC5067, NW-88W2140, NW-29X0161, NW-71Y5463, NW-84Y7953,

Sales Category:	Antennas	Wire Gauge (AWG):	Not Specific / Not Applicable
Connector A:	Not Applicable	Specification:
Connector B:	Not Applicable	Number Ports:	N/A
Export Tariff Code (HST):	8544422000	Transfer Rate:
Feature / Style:		Images Length/Size Shown:	EA
# Positions:		Shielding:
Convert From/To:		Type:

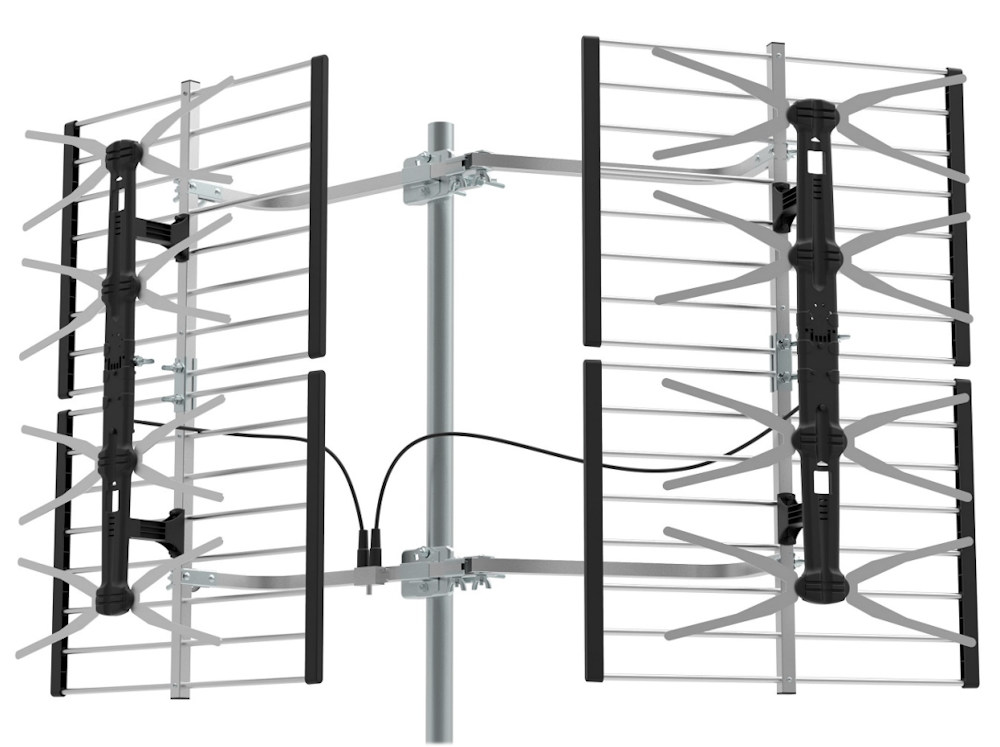

Dual Quad Bay Outdoor UHF/HDTV Bowtie Antenna. High gain outdoor directional antenna is engineered to receive UHF signals for digital and high definition television. Bowtie design provides wider pickup pattern. Adjustable horizontal boom allows vertical sections to be independently aimed, allowing greater pickup width flexibility. Note: Vertical mast pipe shown is not included

Features:

Dual, stacked quad bay design for increased gain
Pre assembled antenna sections for reduced installation time
Heavy duty construction with rugged mast clamps and associated hardware
Vertical mast shown in background is not included
Nominal Range: Approx 80 miles (both sections aimed together)
Frequency range: 470 to 862Mhz
Maximum gain: 25dB (both sections aimed together)
Maximum front/back ratio: 22dB
Horizontal beam width: 60 degrees
Impedance: 75ohm, female F connector
Height: 31.50"
Width: 32.75"

Your TV MUST have a built-in TV tuner to receive "over-the-air" TV signals. Please consult your TV manual
