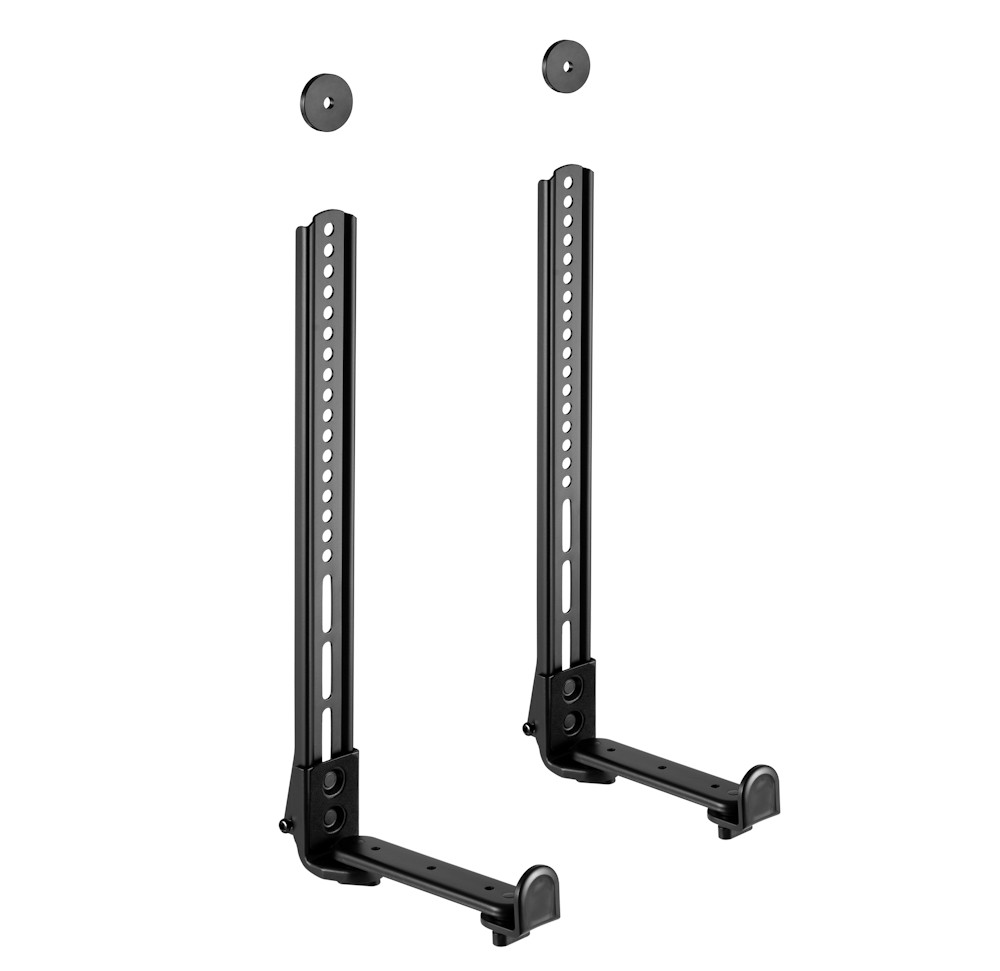

Soundbar Bracket Mounting Base Holder, Heavy Duty to 33lbs (Set of 2)


 Lengths Available:
 Colors Available:
 Part Numbers this model: LU-SB-49

 Sales Category: TV Mounts  Approx TV Size / Weight: - , lbs Max
 VESA Type / Style: /  Vesa Specs (WxH) mm:
   Mount Holes (WxH):  Supports Curved TVs?:

The SB-49 Versatile TV Soundbar Bracket offers the convenience to adapt to the VESA holes found on TVs, allowing the consumer to freely choose most any brand soundbar. Mounts the soundbar above or below the TV to optimize the listening experience no matter what size room or where furniture is placed. Best of all, the SB-49 versatile TV soundbar bracket mount is easy to install with no drilling, no holes or hard to follow instructions resulting in a great customer experience and positive reviews. The sound-bar mount comes with a COMPLETE bolt set, washers, and spacers. Most customers will use the bolts already attached to their TV mount.

TWO MOUNTING CONFIGURATIONS:

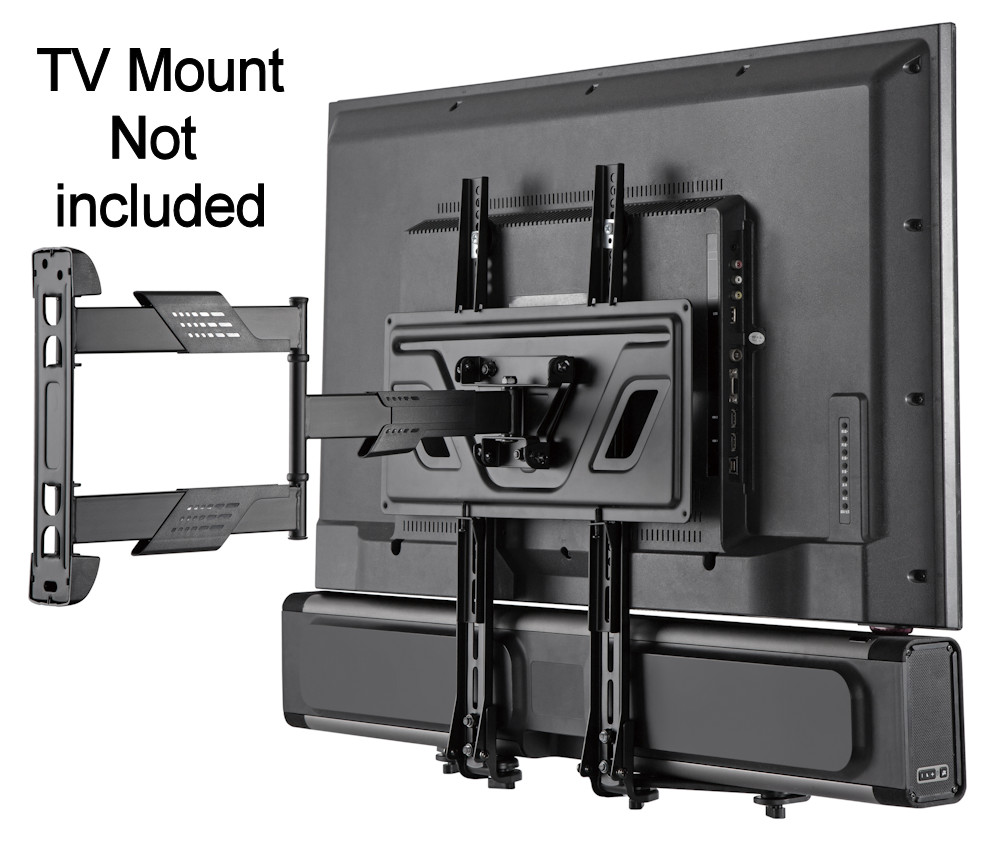

1. Using your existing free-standing TV mount, simply attach the vertical arms of the sound-bar mount to the bottom, or top TV VESA mount holes using the bolts supplied, OR
2. Attach vertical arms using the 2 (or 4) TV VESA mount holes, then OPTIONALLY overlay your TV mount's vertical arms. Then, use the bolts and insert them through BOTH the sound bar vertical arms AND the vertical arms of the TV mounts, and tighten. Sound bar can be mounted BELOW, or ON-TOP of your TV.

Product Details and Specifications
  • Convenient Placement and VESA Attachment: allows the sound-bar to be mounted above or below the TV
  • Adjustable Holders: 1.6''-7.2'' depth providing a strong grip, ensuring the sound-bar does not tip over when the bracket is tilted to 10 degrees
  • Adjustable Height: for nearly seamless look between the TV and sound-bar
  • Adjustable base "feet" of this sound-bar mount allows the safety tips to tightly hold the sound bar to the mount assembly
  • Material: Steel and Plastic, powder black color
  • Maximum Vertical Height (top to bottom): 437mm (17.2 inches)
  • Maximum Horizontal Width: 182mm (7.2 inches)
  • Weight Capacity: 33lbs
  • Hardware Included: 8 Small Spacers 5mm, 8 Large Spacers 14.5mm, 4 washers, Bolts - 4 each of M5x16, M6x16, M5x25, M6x40, M8x40, M8x60
  • See PDF Manual for complete list and visual
  • Above or below TV mount location capable


Installation Note: The VERTICAL BARS attach via the VESA MOUNT HOLES on the back of a TV. The larger the TV, potentially the further apart the vertical arms will be - and if they are TOO far apart, your sound bar may not be supported. The best thing to do is to check the VESA MOUNT specifications on the larger TVs (or the WIDTH of the mount holes).

For example, a typical VESA number for a larger TV might be "400x400". The FIRST number is the width in metric mm. Take 400/25.4 = 15.75inches. That will be the WIDTH of where these vertical bars will hang. If your sound bar is LARGER than this width, then it will be properly supported.
