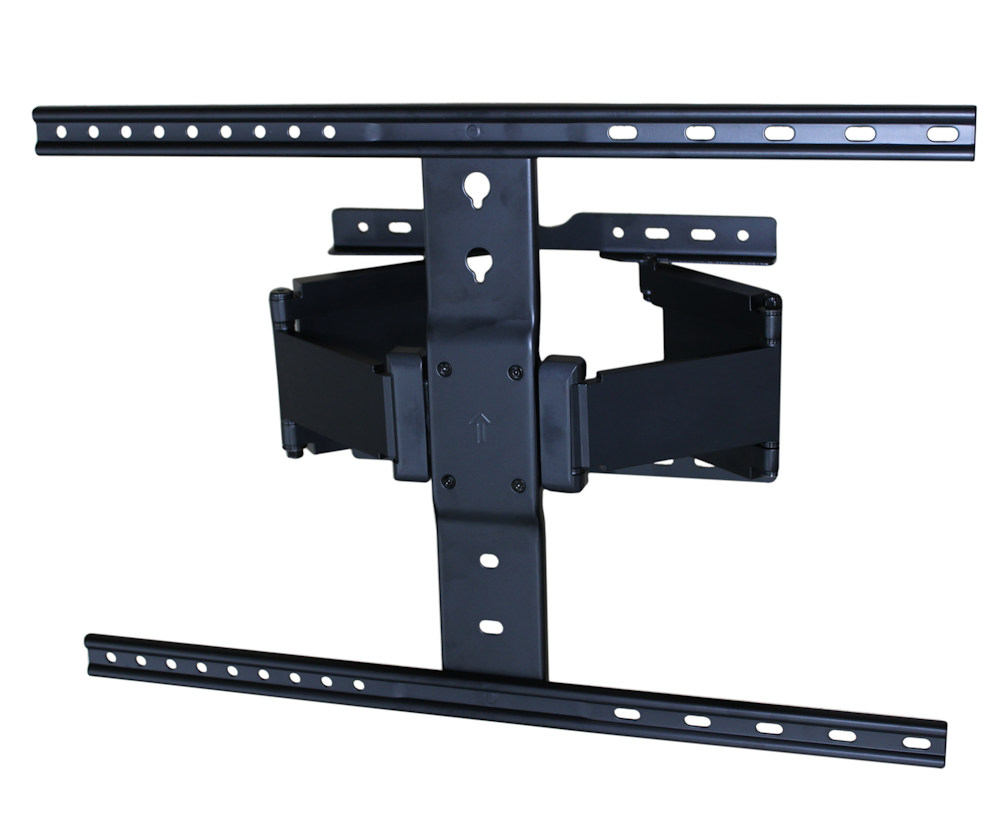

FULL MOTION SLIM 2-ARM Wall Mount Bracket 37-90 TVs to 110 lbs, Black
|
|
|
|
|
|
|
Lengths Available: |
32-55in, 32-55in, 37-80in, 37-90in, 42-74in, 42-90in, 43-70in, |
|
Colors Available: |
Black
|
|
Part Numbers this model: |
LU-LPA36-443A, LU-LPA49-443, LU-LPA63-466, LU-LPA72-464, LU-LPA13-484, LU-LPA49-486, LU-LPA53N-461, |
| |
|
|
Sales Category: |
TV Mounts |
Approx TV Size / Weight: |
37 - 90, 110lbs Max |
|
VESA Type / Style: |
VARIABLE / FULL MOTION |
Vesa Specs (WxH) mm: |
FROM 200x200 TO 600x400 |
|
Mount Holes (WxH):
RANGE |
FROM: 7.9" (W) x 7.9" (H) TO: 23.6" (W) x 15.7" (H) |
Supports Curved TVs?: |
Yes |
|
| |

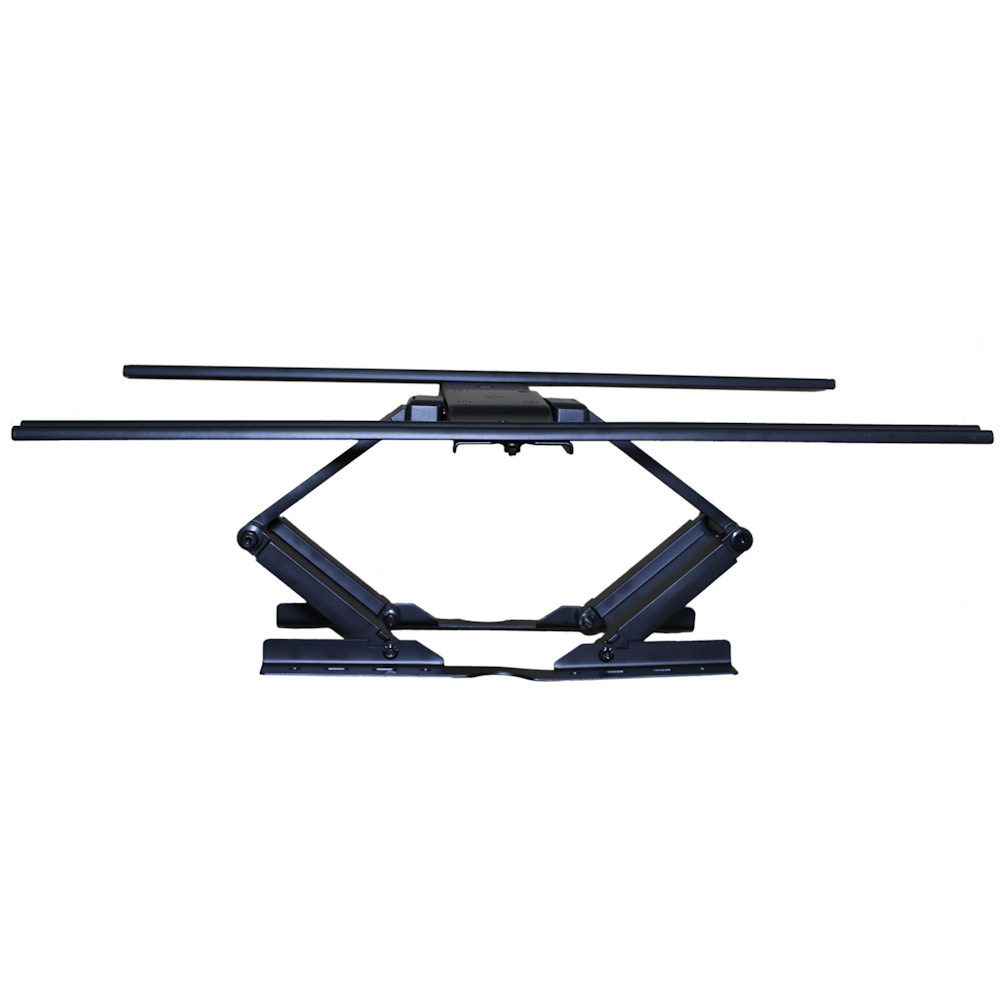

Ultra-slim adjustable tilting up/down (-10 degrees DOWN) and Swivel left/right (+-30 degrees side to side) Wall Mount Bracket for LCD/LED/Plasma (Max 110Lbs, 32-90inch). This is an angle adjustable wall bracket for any larger flat panel LCD, LED, or Plasma TV. This mount fully collapses to wall leaving only a 0.91 inch gap making it our slimmest full-motion mount, keeping the screen and arms out of way when not in use.
- Will fit most small to mid-sized flat panel plasma and LCD TVs with mounting patterns up to VESA 600x400.
- Mounting holes on television should be 23.6'' or less apart horizontally & 15.8'' or less apart vertically
- Maximum weight capacity: 110lbs
- Wall Back mount plate:13.8" W x 8.3'' H
- TV Front mount plate: 25.1" W x 17" H
- Tilt: 10 degrees down (variable)
- Swivel: -30 to +30 degree rotation (left/right depending on TV size and location from wall)
- Extension from wall: 0.91'' Min (SLIM), to 10.5'' Max.
- Solid toughened steel construction
- Durable scratch resistant
- Black Finish
- Easy installation
- Mounting hardware (Screws to go into back of TV & Fittings for brick and stud walls)
- Metric Mounts Bolts Supplied: M5x14, M6x14, M6x30, M8x30, M8x50, spacers, washers, and 4 Lag Bolts supplied
NOTE: Video link provided is of the model LU-LPA72-464A, which has a larger rear plate compared to the model that is sold.
|
