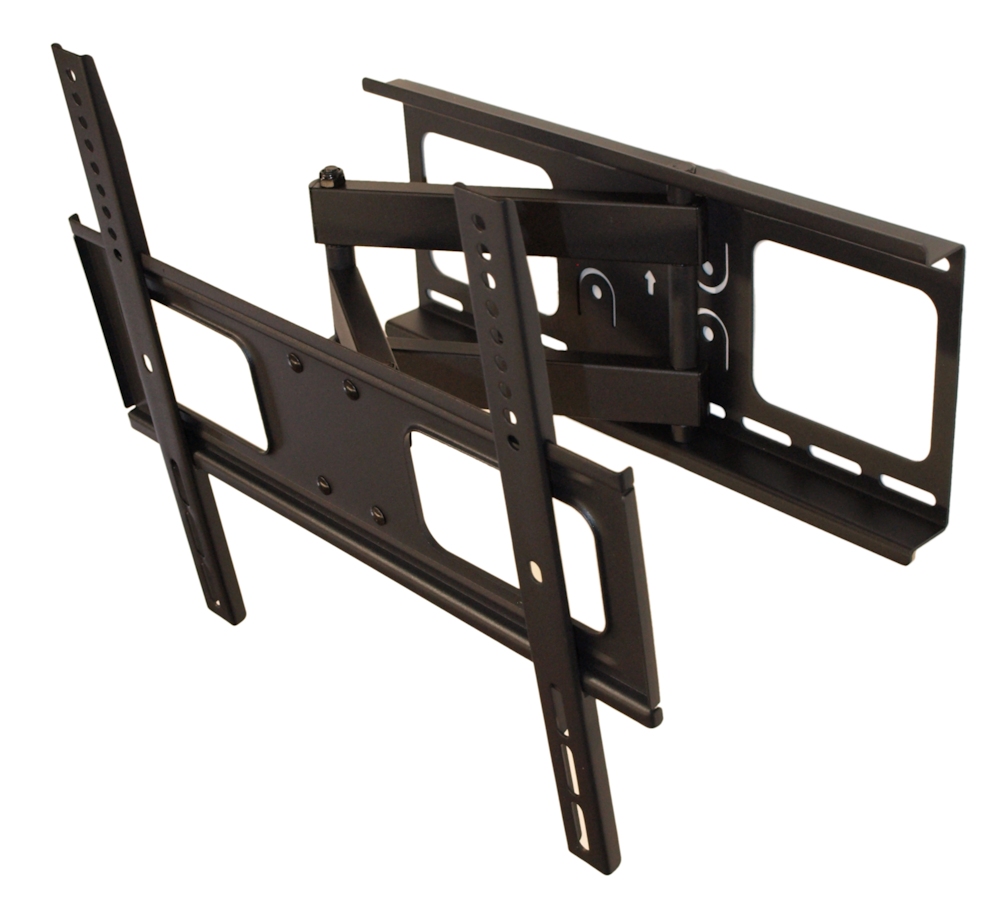

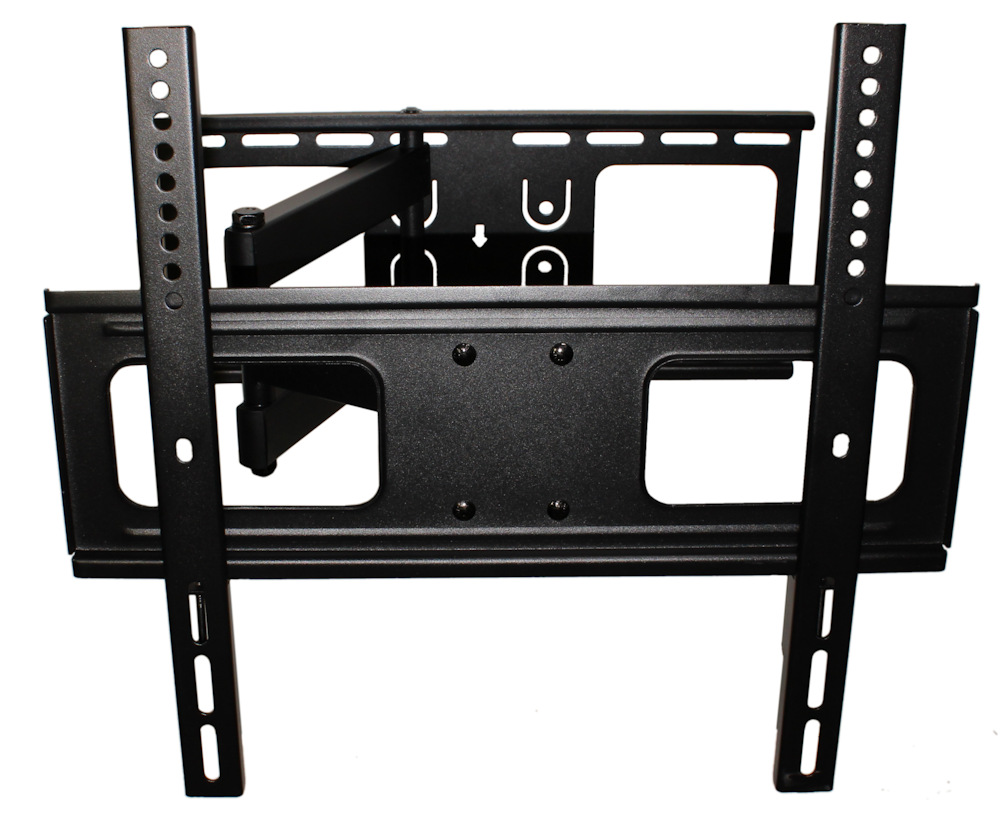

FULL MOTION 1-ARM 19"" Wall Mount Bracket 32-55 TVs Wide Plate, Black
 |
|
| Lengths Available: | 32-55in, 32-55in, 37-80in, 37-90in, 42-74in, 42-90in, 43-70in, | ||
| Colors Available: | Black | ||
| Part Numbers this model: | LU-LPA36-443A, LU-LPA49-443, LU-LPA63-466, LU-LPA72-464, LU-LPA13-484, LU-LPA49-486, LU-LPA53N-461, | ||
| Sales Category: | TV Mounts | Approx TV Size / Weight: | 32 - 55, 110lbs Max |
| VESA Type / Style: | VARIABLE / FULL MOTION | Vesa Specs (WxH) mm: | FROM 200x200 TO 400x400 |
| Mount Holes (WxH): RANGE | FROM: 7.9" (W) x 7.9" (H) TO: 15.7" (W) x 15.7" (H) | Supports Curved TVs?: | Yes |
This mount can be single stud mounted (see note below).
The slim wall plate keeps the screen close to the wall for a very discreet installation that is perfect for corner mounting, digital signage, or home theaters. The mount includes simple to align brackets and a unique wall plate that can be mounted to a single wood stud, two wood studs, or concrete.
- Compatibility:
- Will fit most small to mid-sized flat panel plasma and LCD TVs with mounting patterns up to VESA 400x400.
- Mounting holes on television should be 15.75" or less apart horizontally & 15.75" or less apart vertically
- Maximum weight capacity: 110lbs/50kg
Dimensions:
- Wall Back mount plate width: 18.9"
- Wall Back mount plate height: 8"
- TV Front mount plate width: 18.9"
- TV Front mount plate height: 16.3"
- Measurements are from edge to edge. Mounting points for bolts will be shorter.
Range of Motion:
- Tilt: up to 5 degrees upward & 20 degrees down (variable) (Lock In Fixed Position)
- Swivel: -90 to +90 degree rotation (depending on TV size and location from wall)
- Mount continues to allow for left/right swivel after mounting, with tension controlable via supplied hex tool
- Extension from wall: 2.5" to 18.7"
Design & Construction:
- Solid toughened steel construction
- Durable scratch resistant
- Black Finish
- Easy installation
- Level adjustment
Included in Box:
- Mount
- Mounting hardware
- Mount bolts included: (4) M4x30, (4) M5x30, (4) M6X30, (4) M8X40, (4) M5X16, (4) M8X16
Please Note: Retail box or supplied documentation may indicate this mount is suitable for a different sized TV. CEDIA (Consumder Electronics Design and Installation Association) has provided us with a REVISED recommendated TV size range based on a TV mount's VESA and/or bolt width/height measurements. This revision has generally INCREASED the size capacities of smaller TV mounts as many larger TVs are now much lighter than previous models. We are now using these RECOMMENDED TV Size measurements when stating the approximate TV size ranges that this mount may be suitable. Please DOUBLE CHECK your TVs VESA SIZE and/or mount hole widths and heights and compare these measurements to our clearly published hole width and height size ranges shown above
IMPORTANT INSTALLATION NOTE: The SINGLE STUD solution should only be performed if you are able to "center
mount" it on that single stud. You should also be ABSOLUTELY SURE that you are locating your lag bolts in the CENTER of the wooden stud. If you are unable to "center mount" (which means that you are putting the lag bolts through the mount plate in the CENTER of the mount plate), you must mount in such a manner that you are using 2 studs.
Mounting your TV onto Brick, Masonry, or Concrete? Check out our Anchor Bolts
Mounting your TV directly onto Drywall? Check out our Drywall Mount Kits
NOTICE: All returned TV mounts are subject to a 10% re-stocking fee. All TV mounts, however, have a 1 year replacement warranty (not subject to ANY restocking fee).
