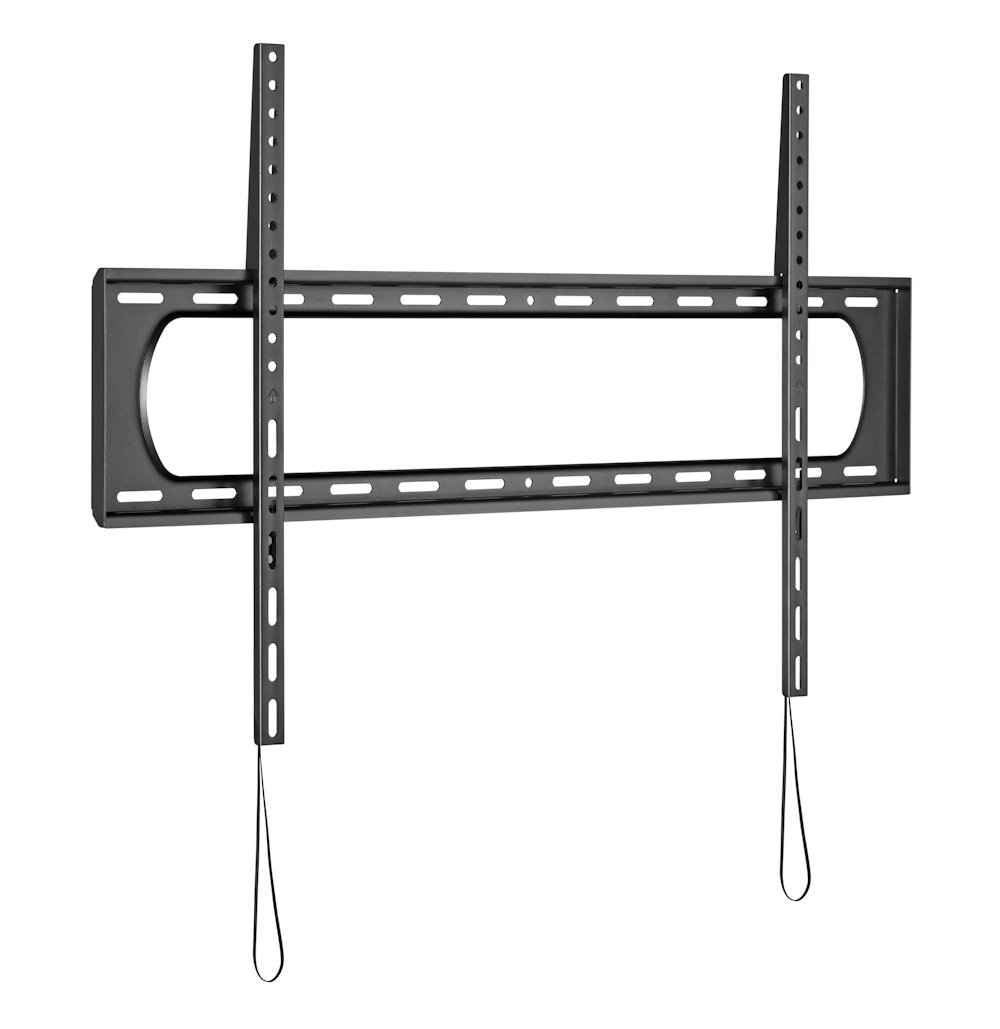

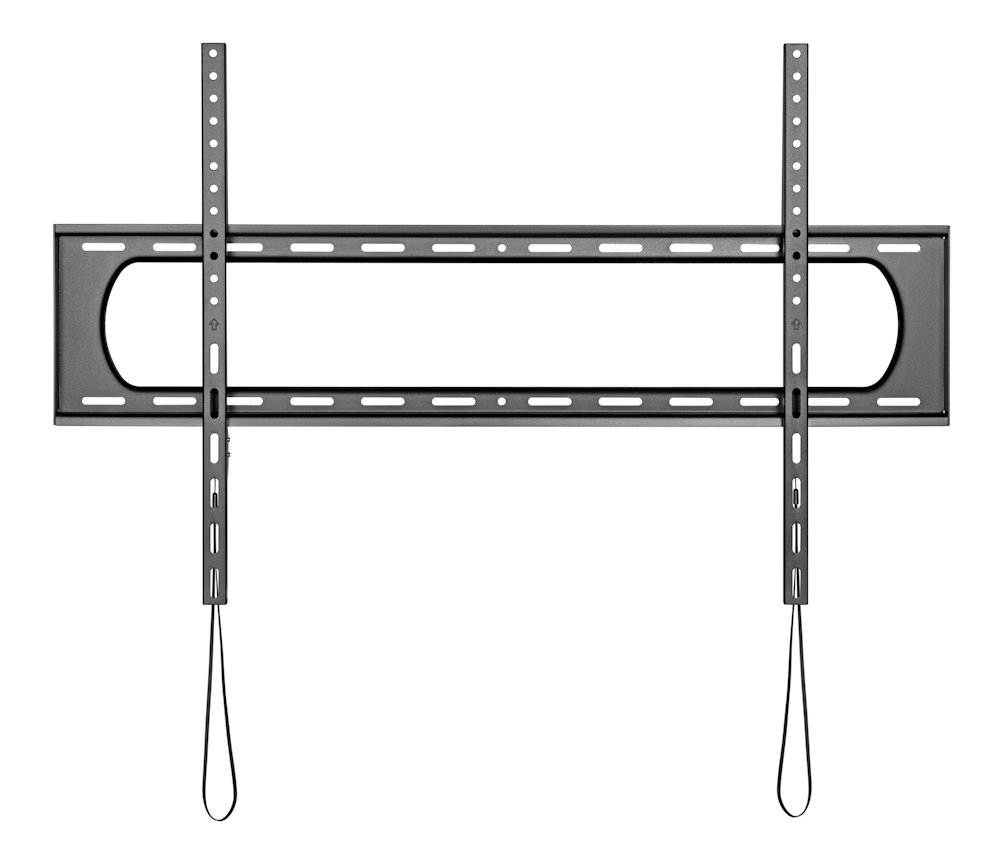

LOW PROFILE Wall Mount Bracket 60-120" TVs to 220 lbs Black


 Lengths Available: 32-55in, 32-55in, 37-70in, 37-80in, 60-100in, 60-120in, each,
 Colors Available: Black
 Part Numbers this model: LU-KL22-44F, LU-LDT03-17S, LU-PLB-34L, LU-KL22-64F, LU-LP37-69F, LU-LP73-69F, BE-502731BK,

 Sales Category: TV Mounts  Approx TV Size / Weight: 60 - 120, 264lbs Max
 VESA Type / Style: VARIABLE / FLAT TO WALL  Vesa Specs (WxH) mm: FROM 200x200 TO 900x600
   Mount Holes (WxH):  RANGE FROM: 7.9" (W) x 7.9" (H) TO: 35.4" (W) x 23.6" (H)  Supports Curved TVs?: Yes

To address the gap in the niche market of heavy-duty large-sized TV wall mounts, the LP73-69F Affordable Heavy-Duty TV Wall Mount is a reasonable solution. A stiffener structure levels the weight capacity up to 120kg/264lbs to firmly hold 60"-120" TVs. Ample space in the center is perfect for installing the socket outlet and concealing all the messy cables. A quick-release spring lock allows TV removal quick and easy and only takes seconds to install. All mounting hardware included.

Compatibility:
  • Will fit most small to LARGE flat panel LCD and LED TVs with mounting patterns up to VESA 974x602.
  • Mounting holes on television should be 36.3in or less apart horizontally & 24in or less apart vertically
  • Maximum weight capacity: 264lbs

    Dimensions:
  • Wall plate: 39.6in x 8.9in
  • Arm Measurements (length): 24.6in
  • Measurements are from edge to edge. Mounting points for bolts will be shorter.

    Range of Motion:
  • Tilt: Fixed
  • Swivel: None
  • Extension from wall: 1.4in when parallel to the wall
  • Curved TV Support using supplied spacers and bushings

    Design & Construction:
  • Solid toughened steel construction
  • Durable scratch resistant
  • Black Finish
  • Easy installation

    Included in Box:
  • Mount
  • Mounting hardware
  • Supplied Bolts: (4) M5x14, (4) M6x14, (4) M8x20, (4) M6x30, (4) M8x30
  • User manual

    Please Note: Please DOUBLE CHECK your TVs VESA SIZE and/or mount hole widths and heights and compare these measurements to our clearly published hole width and height size ranges shown above
