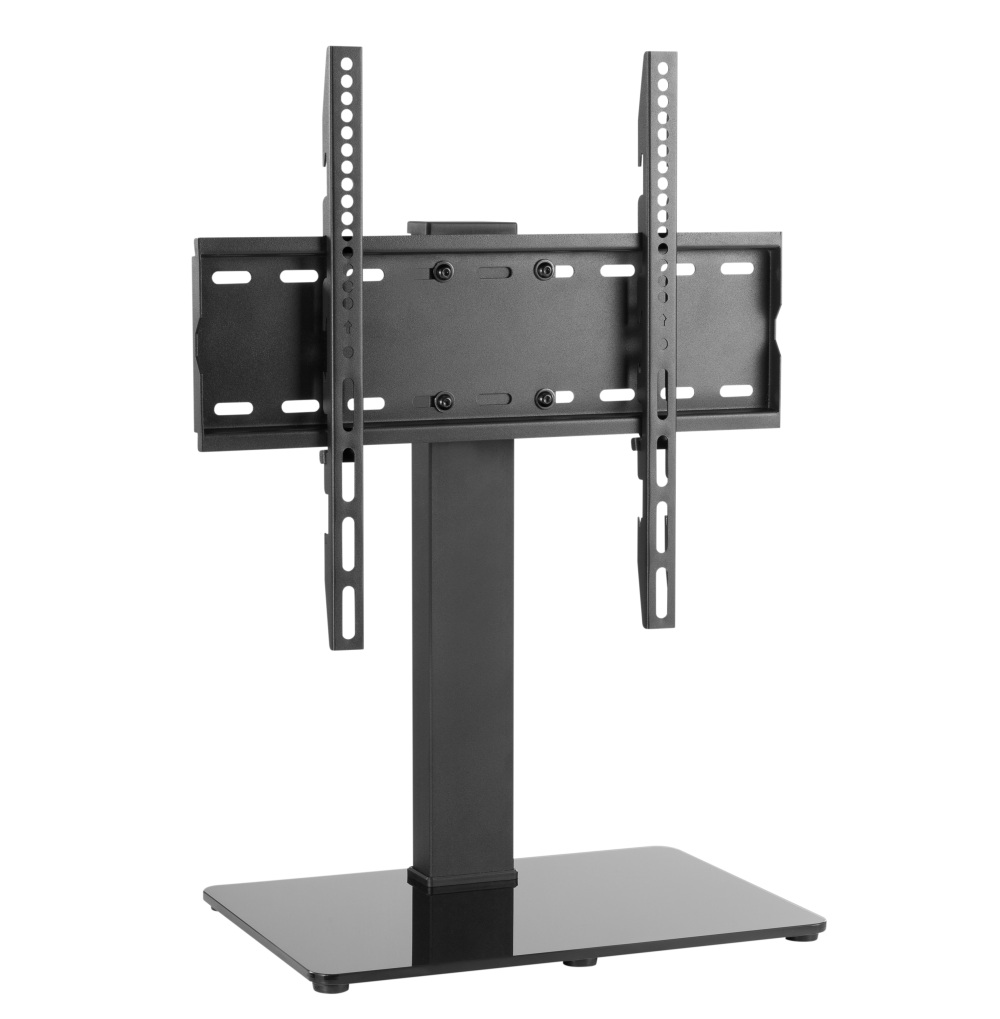

Table Top Mount Bracket SWIVEL ONLY 32-55 TVs to 88 lbs, Black
|
|
|
|
|
|
|
Lengths Available: |
32-55in, 32-55in, 37-70in, 37-80in, 60-100in, 60-120in, each, |
|
Colors Available: |
Black
|
|
Part Numbers this model: |
LU-KL22-44F, LU-LDT03-17S, LU-PLB-34L, LU-KL22-64F, LU-LP37-69F, LU-LP73-69F, BE-502731BK, |
| |
|
|
Sales Category: |
TV Mounts |
Approx TV Size / Weight: |
32 - 55, 88lbs Max |
|
VESA Type / Style: |
VARIABLE / FLAT TO WALL |
Vesa Specs (WxH) mm: |
FROM 200x200 TO 400x400 |
|
Mount Holes (WxH):
RANGE |
FROM: 7.9" (W) x 7.9" (H) TO: 15.7" (W) x 15.7" (H) |
Supports Curved TVs?: |
Yes |
|
| |
Constructed with metal and solid glass, the LDT03-17S offers you a cost-saving TV mount solution. Apart from the durable structure and well-design appearance, the unit also features flexible adjustment. 70-degree swivel range offers more horizontal movement than standard TV brackets. Bearing easy installation in mind, this stand designs for assembling in minutes. Featuring cable management that elegantly hides any cables that are attached to displays, continuous swivel for an optimal viewing angle, vertical height adjustment for proper positioning. Elegant Glossy Glass Base adds a modern touch to your home.
Compatibility:
- Will fit most small to mid-sized 32''-55'' flat panel plasma and LCD TVs with mounting patterns up to VESA 400x400.
- Mounting holes on television should be 15.75'' or less apart horizontally & 15.75'' or less apart vertically
- Maximum weight capacity: 88lbs
- Base Size: Approximately 15.75" W x 11" D
Range of Motion:
- Tilt: NONE
- 35 degree left/right rotation each direction
- Height from base to middle mount point: 17.3 inches

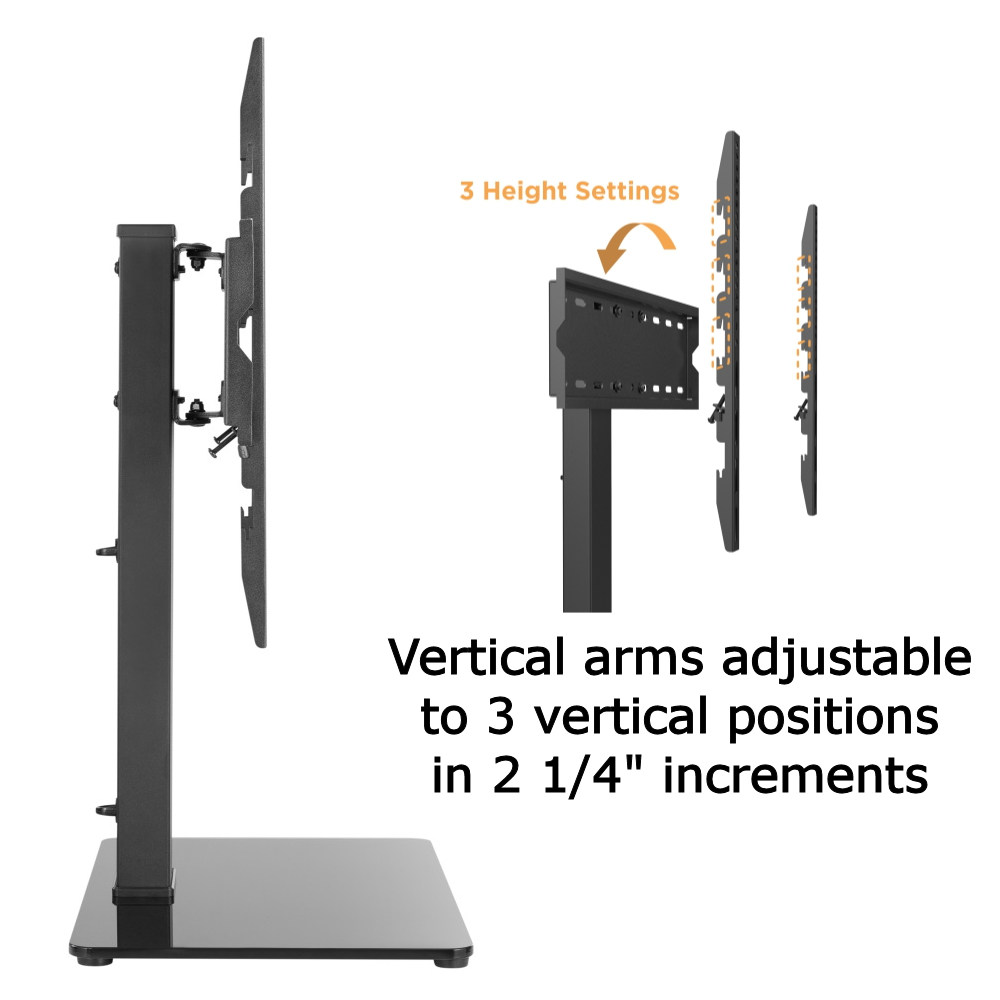

- Height of TV from base adjustable by hanging the vertical mount arms into three different hang positions (2 1/4 and 4 1/2inch adjustable)
Design & Construction:
- Easy to install
- NO Welds - solid construction
- High Quality Toughened Steel
- Scratch resistant surface
- Black Finish
Included in Box:
- Mount
- Mounting Hardware, TV Mount Bolts Provided: M4, M5, M6 and M9
- User Manual
|
