ARM 3-Way TRAVEL/LOCK Adjustable/Tilt Wall Mount Bracket 13-42"" to 33 lbs


 Lengths Available: 12-27in, 13-32in, 13-42in,
 Colors Available:
 Part Numbers this model: LU-LCD-CM311, LU-LDA18-111, LU-LDA18-222,

 Sales Category: TV Mounts  Approx TV Size / Weight: 13 - 42, 33lbs Max
 VESA Type / Style: FIXED / ARM  Vesa Specs (WxH) mm: 75x75 100x100 200x100 100x200 200x200
   FIXED  Mount Holes (WxH): 3" x 3" , 4" x 4" , ~8" x 4" , 4" x ~8" , ~8" x ~8"  Supports Curved TVs?: No

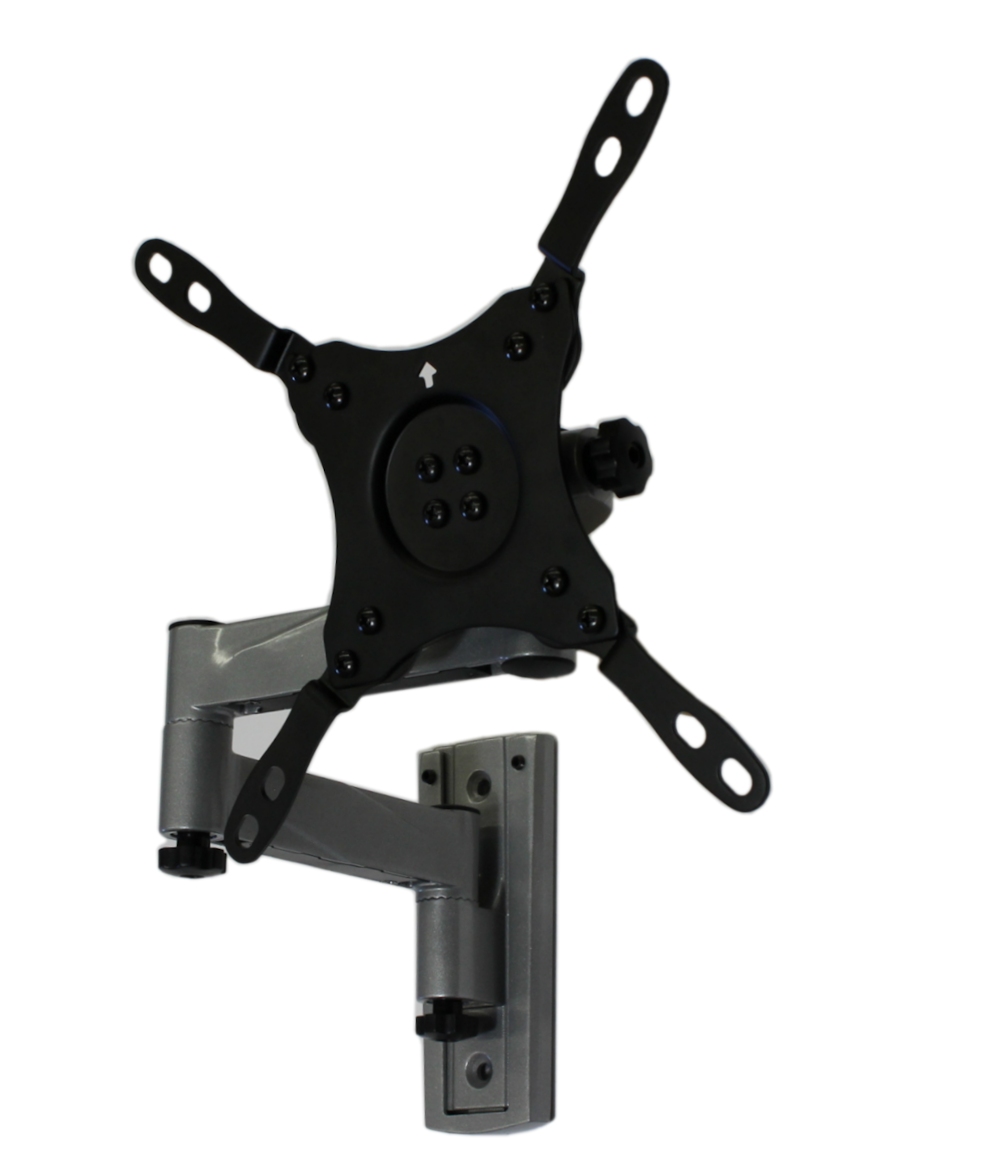

The LDA18-222 is an articulating wall mount for 13"-42" flat-panel TVs up to 15kg/33lbs especially designed for RVs, TRAILERS, ICE HOUSES, or other mobile units. With enhanced fixing structure, it can be widely applied in RVs, Motor Homes, Caravans, or Ice Houses where the TV needs to be protected from the damage while travelling. Full motion allows maximum flexibility tilts, swivel and extend your TV up to 390mm from the wall in every direction for easy viewing and also can be fold when not in use for saving space. In-arm cable clip routes cables for a clean appearance. Slide-in wall plate ensures easy installation. VESA-compatible fits 75 x 75, 100 x 100, 200 x 100 and 200 x 200 hole patterns. TWO REAR DOCKING PLATES are included so TV easily slides in and out of the docking stations and can be transferred effortlessly from one station to the other! Each ARM joint is fully lockable ensuring your TV will stay in its place during travel.

Suitable for mounting monitors, and smaller LED, LCD, and plasma sets from 13-42in diag up to 33 lbs.
    Compatibility:
  • Will fit most small to mid-size flat panel LCD monitors with mounting VESA Standard patterns:
  • 3"x 3" (VESA 75x75)
  • 4"x 4"(VESA 100x100)
  • 8" x 4"(VESA 200x100)
  • 4" x 8"(VESA 100x200)
  • 8" x 8"(VESA 200x200)
  • Maximum weight capacity: 33lbs

    Dimensions:
  • Wall Mount Plate: 6.2"H x 2.6"W X .5"D
  • Wall Mount Plate: Distance between mounting holes is ~4.5"

    Range of Motion:
  • Tilt: Up or Down approx: 55 degrees UP, 35 degrees DOWN (Lockable in any position)
  • Swivel (left right)l: 180 degrees (Lockable in any position)
  • Minimum Arm (when fully collapsed): Approx 3.5"
  • Maximum Arm Reach (when fully extended): 15.43"

    Design & Construction:
  • Cast Aluminum (with some steel components)
  • Dual segment, double long extension arm
  • Black and Silver Finish
  • Lockable at each joint

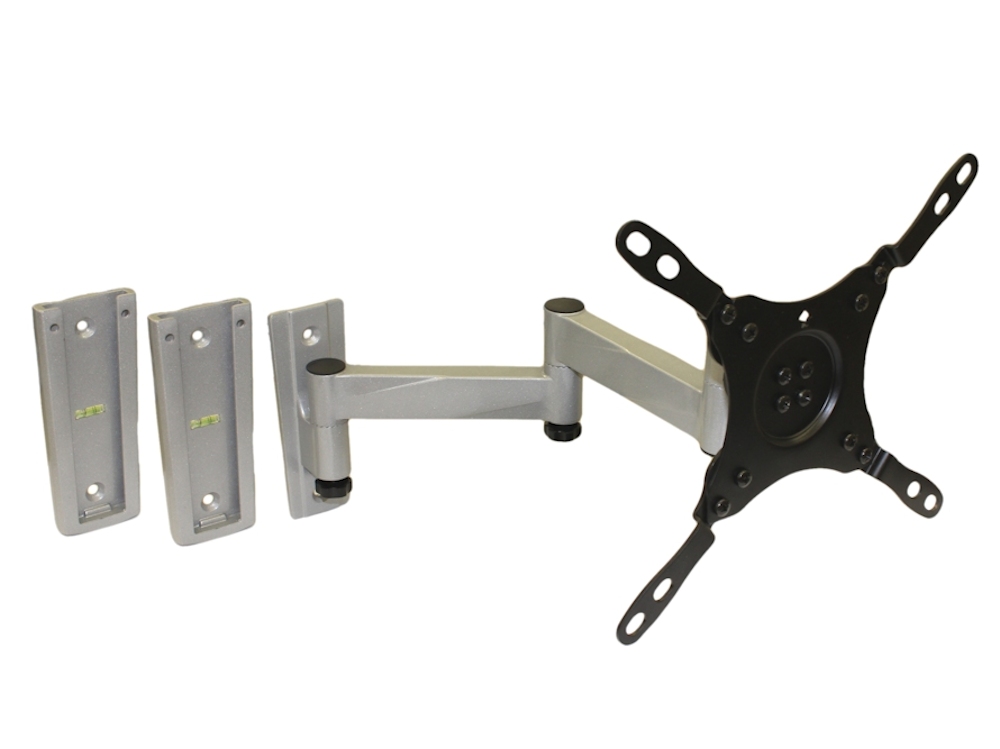

  • 2 rear docking plates included for quick location swaps
  • Bubble Level
  • Easy installation

    Included in Box:
  • Mount
  • Mounting hardware
  • Additional rear docking plate
  • Mount bolts included: (4) M4x10, (4) M5x10
  • User manual

TECH TIP: Is the support arm bracket not staying in place? Use the supplied ALLEN KEY to tighten the bolt from underneath instead!
