LOW PROFILE Wall Mount Bracket 37-80 TVs to 77 lbs Black


 Lengths Available: 32-55in, 32-55in, 37-70in, 37-80in, 60-100in, 60-120in, each,
 Colors Available: Black
 Part Numbers this model: LU-KL22-44F, LU-LDT03-17S, LU-PLB-34L, LU-KL22-64F, LU-LP37-69F, LU-LP73-69F, BE-502731BK,

 Sales Category: TV Mounts  Approx TV Size / Weight: 37 - 80, 77lbs Max
 VESA Type / Style: VARIABLE / FLAT TO WALL  Vesa Specs (WxH) mm: FROM 50x50 TO 630x400
   Mount Holes (WxH):  RANGE FROM: 2.0" (W) x 2.0" (H) TO: 24.8" (W) x 15.7" (H)  Supports Curved TVs?: No

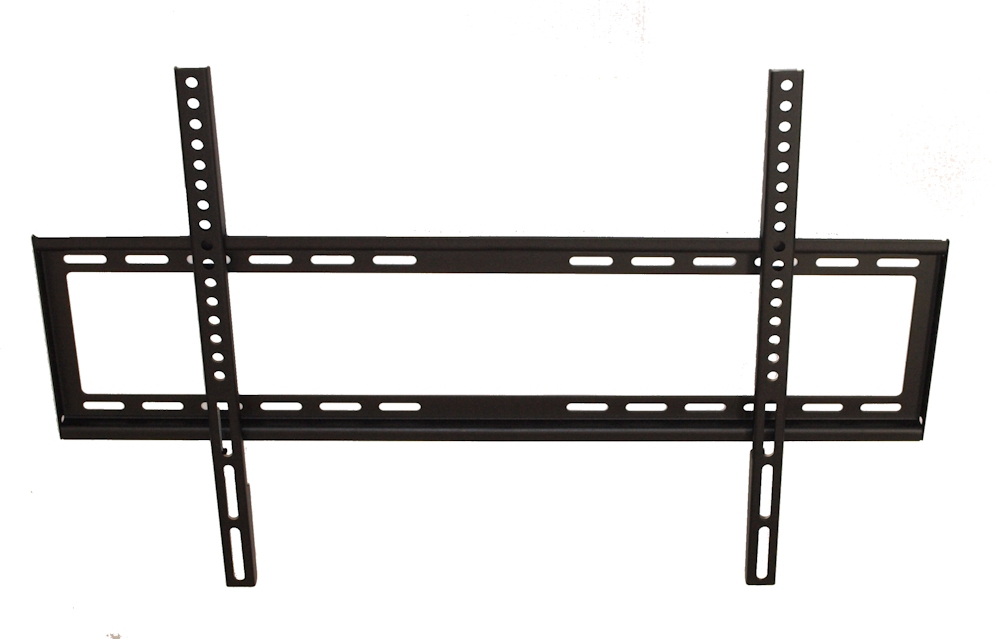

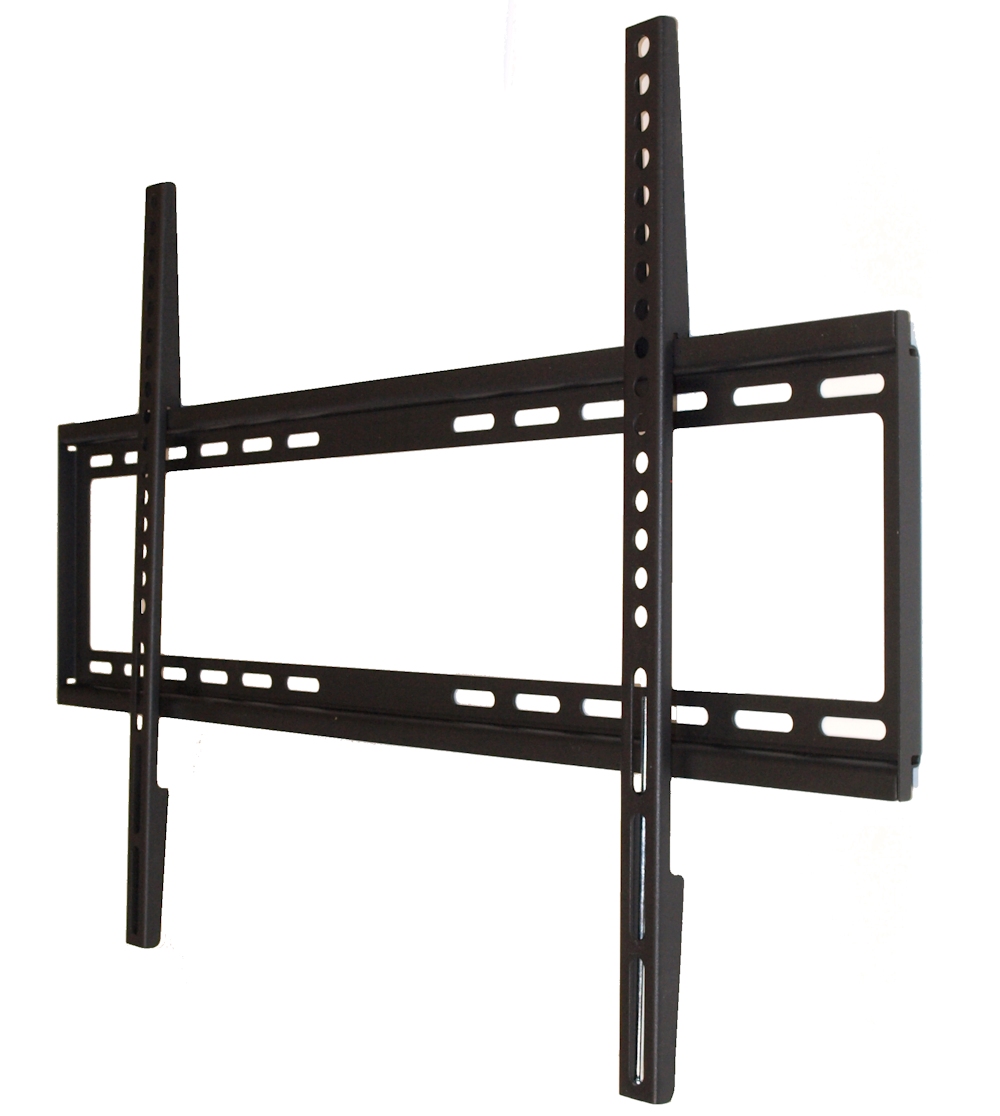

Our new KL22-44F ultra slim fixed TV wall mount is designed to fit any 37"-70" Flat Panel TV up to 35kg/77lbs. Super Slim design sits just 19.5mm from wall to complement the sleek look of ultra-thin TVs. It features an open design which maximizes airflow to equipment and provides easy access to the back of components. It also allows lateral shift adjustment, allowing the TV to slide left and right on the wall plate so it’s positioned exactly where you want it. This fixed-position mount is perfect for viewing your TV at eye level
Compatibility:
  • Will fit most small to mid-sized flat panel LCD and LED TVs with mounting patterns up to VESA 600x400.
  • Mounting holes on television should be 24.9in or less apart horizontally & 15.75in or less apart vertically
  • Maximum weight capacity: 77lbs/35kg

    Dimensions:
  • Wall plate: 26in x 6.6in
  • Arm Measurements (length): 16.5in
  • Measurements are from edge to edge. Mounting points for bolts will be shorter.

    Range of Motion:
  • Tilt: Fixed
  • Swivel: None
  • Extension from wall: 0.76in when parallel to the wall

    Design & Construction:
  • Solid toughened steel construction
  • Durable scratch resistant
  • Black Finish
  • Easy installation

    Included in Box:
  • Mount
  • Mounting hardware
  • User manual
    Please Note: Please DOUBLE CHECK your TVs VESA SIZE and/or mount hole widths and heights and compare these measurements to our clearly published hole width and height size ranges shown above

    Mounting your TV onto Brick, Masonry, or Concrete? Check out our Anchor Bolts
    Mounting your TV directly onto Drywall? Check out our Drywall Mount Kits

    NOTICE: All returned TV mounts are subject to a 10% re-stocking fee. All TV mounts, however, have a 1 year replacement warranty (not subject to ANY restocking fee).
