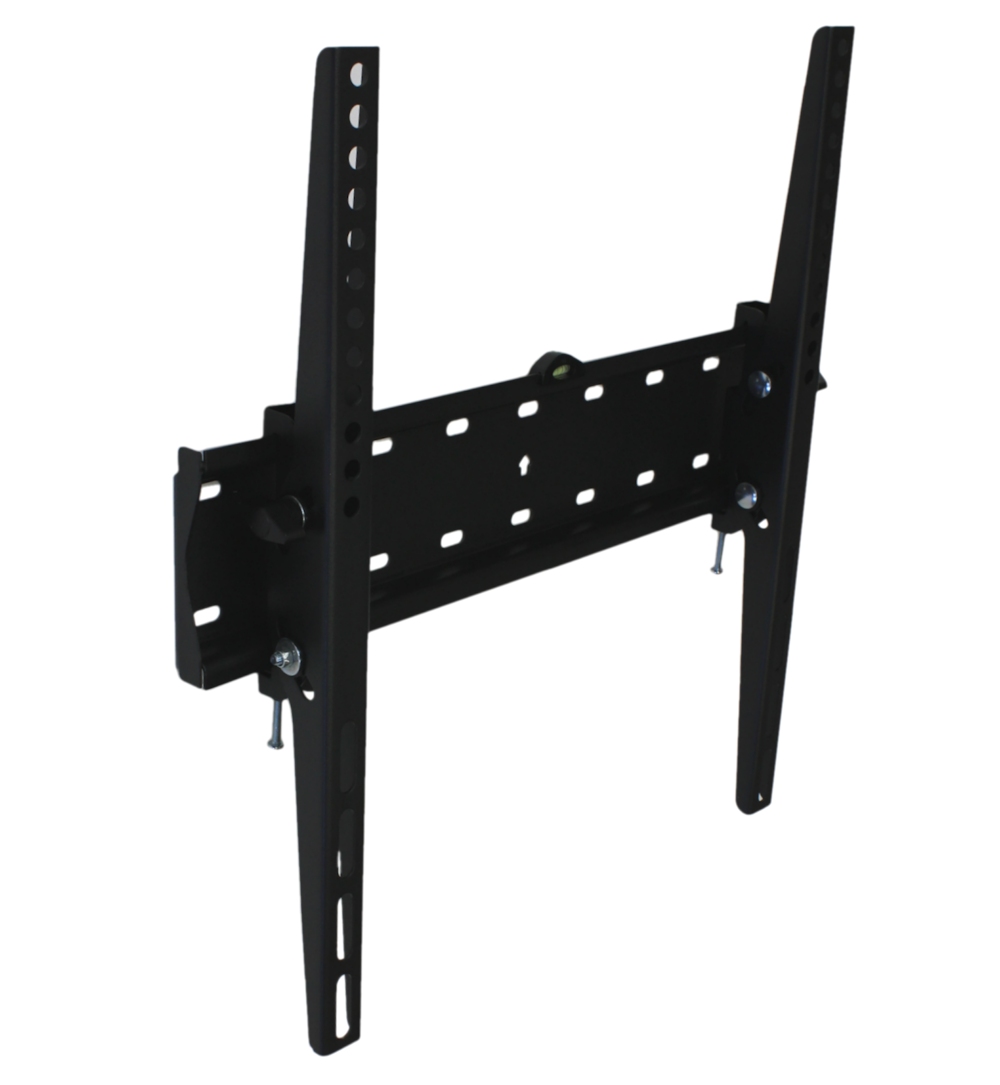

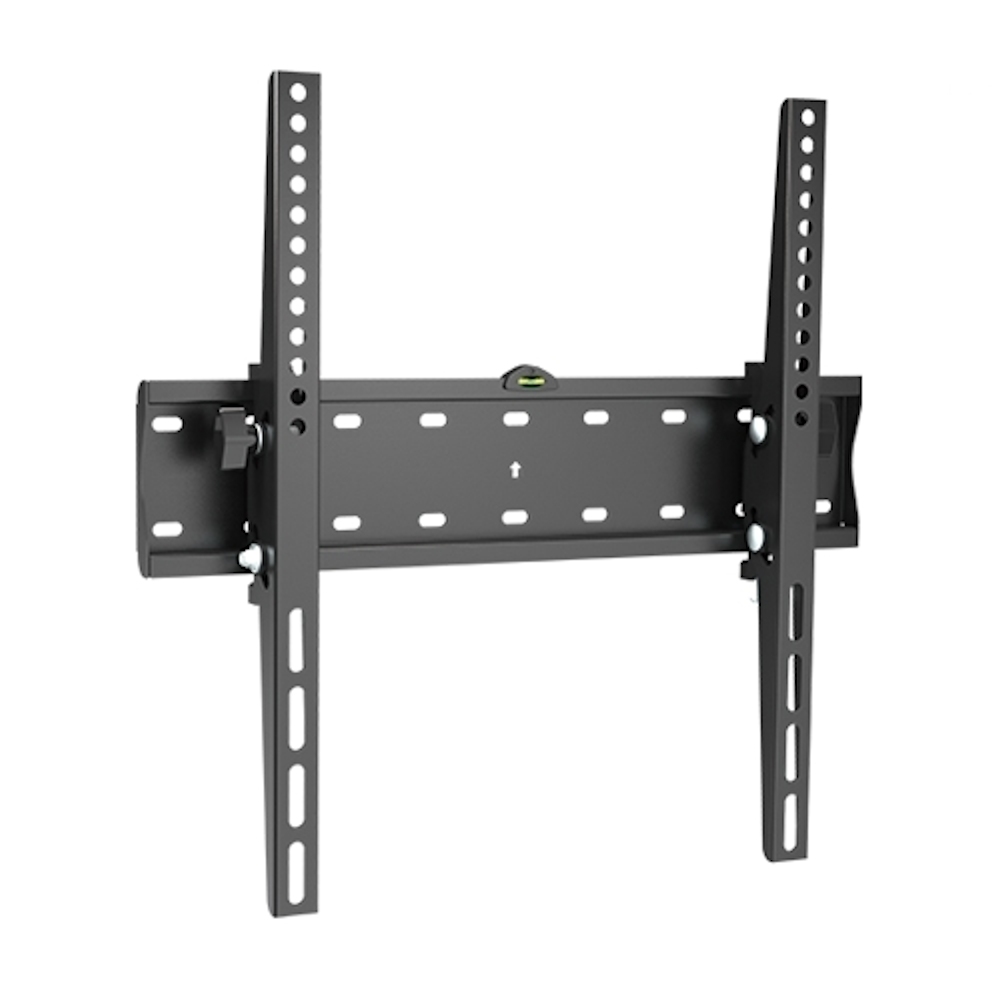

TILT ONLY Wall Mount Bracket 32-55 TVs to 88 lbs, Black
|
|
|
|
|
|
|
Lengths Available: |
32-55in, 37-70in, 42-80in, 43-90in, 60-100in, |
|
Colors Available: |
Black
|
|
Part Numbers this model: |
LU-KL21G-44T, BE-502688BK, LU-PLB-35XL, LU-LP59-48T, LU-LP37-810T, |
| |
|
|
Sales Category: |
TV Mounts |
Approx TV Size / Weight: |
32 - 55, 88lbs Max |
|
VESA Type / Style: |
VARIABLE / TILT ONLY |
Vesa Specs (WxH) mm: |
FROM 100x100 TO 400x400 |
|
Mount Holes (WxH):
RANGE |
FROM: 3.9" (W) x 3.9" (H) TO: 15.7" (W) x 15.7" (H) |
Supports Curved TVs?: |
Yes |
|
| |
Adjustable Tilting Wall Mount Bracket for LCD Plasma (Max 88Lbs, 32-55inch) - This is an angle adjustable wall bracket for LED, LCD or Plasma TV's. This TILTING Wall Mount supports most any 32 to 55 inch flat panel screen and plasma TVs up to 88 lb weight that comply with VESA mounting standards. You will not find a TV bracket for this quality ANYWHERE for this price!.
The slim wall plate keeps the screen close to the wall for a very discreet installation that is perfect for boardrooms, digital signage, or home theaters. The mount includes simple to align brackets and a unique wall plate that can be mounted to a single wood stud, two wood studs, or concrete.
Compatibility:
- Will fit most small to mid-sized 32"-55" flat panel plasma and LCD TVs with mounting patterns up to VESA 400x400.
- Mounting holes on television should be 15.75" or less apart horizontally & 15.75" or less apart vertically
- Maximum weight capacity: 88lbs
Dimensions:
- Wall plate: 17" x 3.93"
- Mount Arm Bracket Height: 16.7"
- Measurements are from edge to edge. Mounting points for bolts will be shorter.
Range of Motion:
- Tilt: 12 UP to 12 degree DOWN (variable)
- Extension from Wall: 2.1"
Design & Construction:
- Easy to install
- NO Welds - solid construction
- High Quality Toughened Steel
- Scratch resistant surface
- Black Finish
Included in Box
- Mount
- Mounting Hardware, TV Mount Bolts Provided: M4, M5, M6 and M9
- User Manual
NOTE: Supported screen sizes in descriptions are provided as a guide. Not all models of televisions will fall within guidelines.
|
