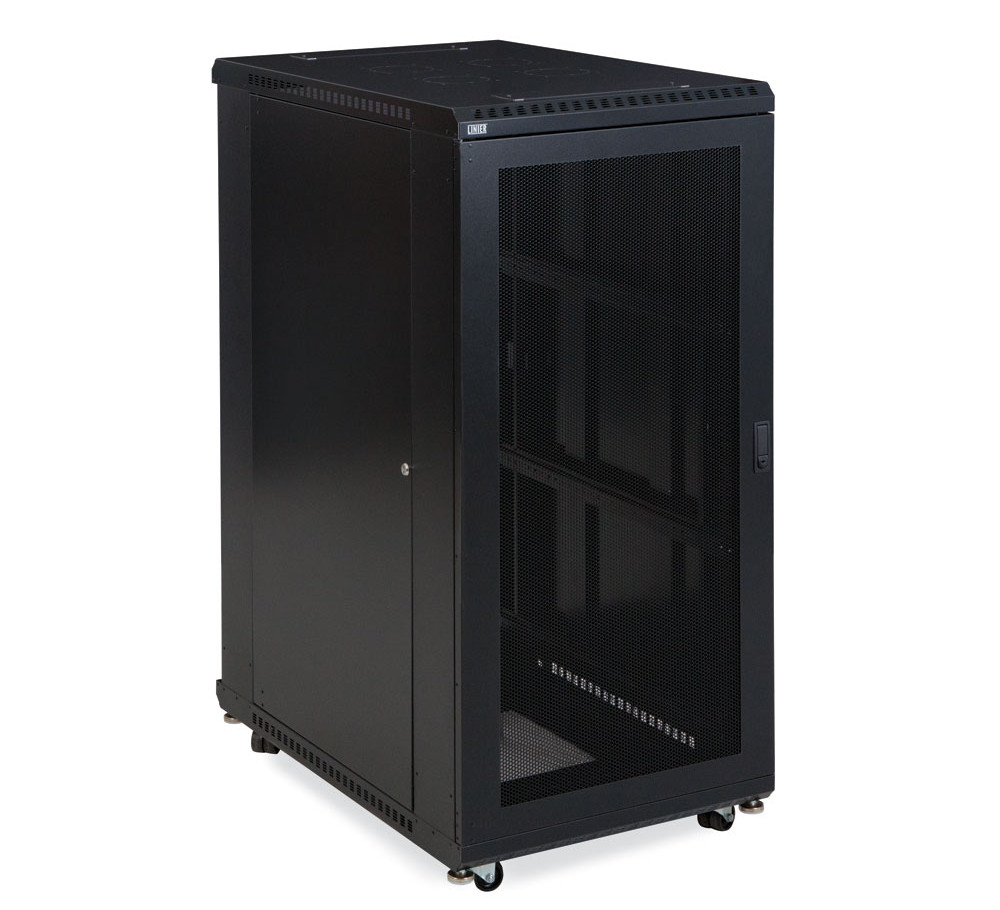

27U Linier(TM) Server Cabinet 36 inches Deep with Vented Door


 Lengths Available:
 Colors Available:
 Part Numbers this model: KH-3107-3-001-27

 Sales Category: Racking (Wall Mount/Floor)  Wire Gauge (AWG): Not Specific / Not Applicable
 Connector A: *Not Applicable*  Specification:
 Connector B: *Not Applicable*  Number Ports: N/A
 Export Tariff Code (HST): 8544422000  Transfer Rate:
 Feature / Style: Images Length/Size Shown: 27 U
# Positions: Shielding:
Convert From/To: Type:

SHIPPING NOTICE: Due to the 165lb shipping weight, this product MUST ship freight and will be QUOTED after the checkout process, and shipping cost will be adjusted accordingly after customer approval

The 3107 series is one of Kendall Howard's best looking LINIER enclosures. Our design is packed with some of the most popular rack features for a price virtually anyone can afford. Built with a 36" depth, this LINIER(TM) Server Cabinet is suitable for network servers, battery backups, switching banks, and other larger network equipment. The cabinet features laser knockouts allowing you to install fans, while removable slots provide numerous cable routing options. When you need a low cost solution loaded with features, the LINIER(TM) brand delivers big!

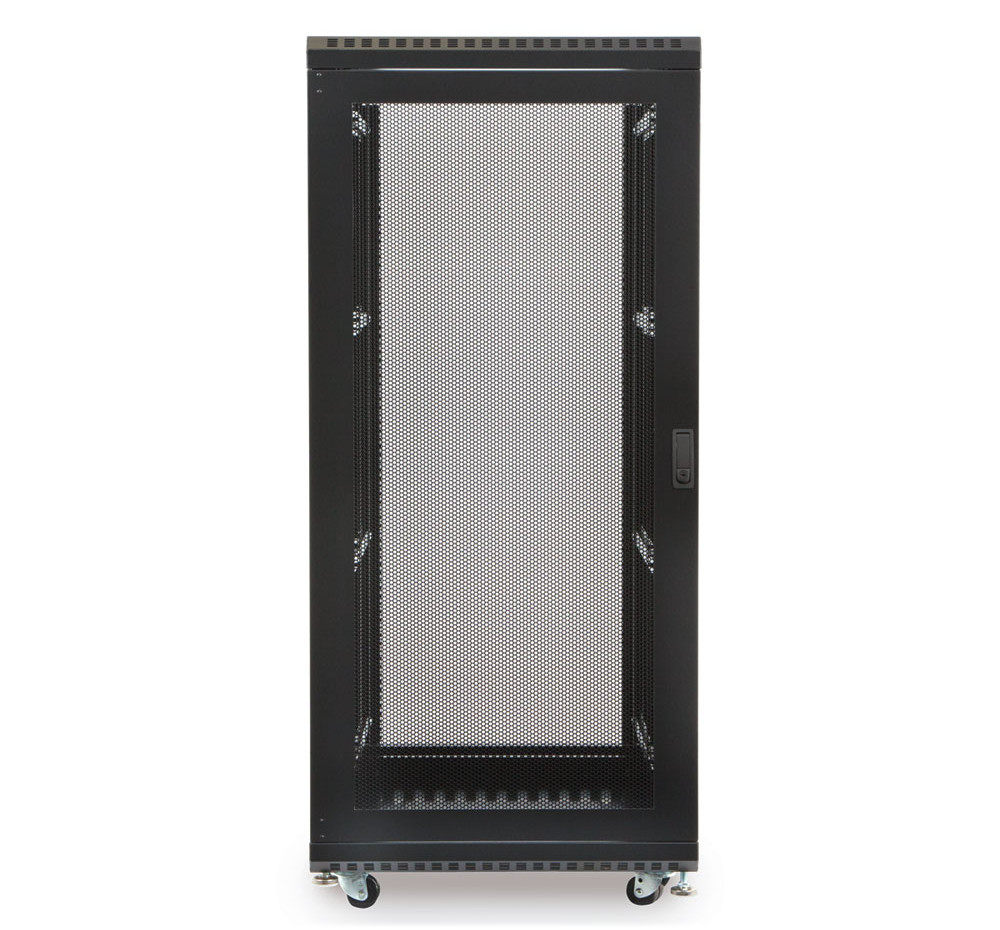

Casters and levelers are preinstalled to allow you to easily move and load your system into the desired location. (Rack hardware not included.). The top of the server cabinet includes removable laser knockouts for cable access and added versatility. Includes two sets of adjustable, vertical rails which extend to a maximum depth of 36" for versatile mounting options. The locking perforated doors promote better air circulation within the cabinet. This vented design is especially helpful for equipment that generates a lot of heat, such as servers, UPS’s, and more.

Features
  • Includes 2 locking vented doors
  • Removable locking side panels
  • 37.72" depth (36" usable)
  • 1300 lb. weight capacity (Holds 800 lbs. on casters)
  • Includes preinstalled casters and levelers
  • Dimensions - Depth: 37.72", Height: 54.25", Width: 24"
  • Includes two sets of adjustable cage nut style mounting rails
  • 27U Capacity
  • Top includes removable laser knockouts
  • 19" EIA compliant
  • Made in the USA
  • 5-Year Limited Warranty
