Lengths Available: |
2port, 4port, 4port, 8port, 16port, |
|
Colors Available: |
|
|
Part Numbers this model: |
HD-V-B12IH, HD-V-B14IH, HD-C-SPB14D60, HD-V-B18IH, HD-C-SPB116, |
| |
|
|
Sales Category: |
HDMI Switch/Boosters |
Wire Gauge (AWG): |
Not Specific / Not Applicable |
|
Connector A: |
HDMI Standard Type A Female |
Specification: |
|
|
Connector B: |
HDMI Standard Type A Female |
Number Ports: |
N/A |
|
Export Tariff Code (HST): |
8525503035 |
Transfer Rate: |
|
|
Feature / Style: |
|
Images Length/Size Shown: |
8 PORT |
|
# Positions: |
|
Shielding: |
|
|
Convert From/To: |
|
Type: |
HDMI Splitter |
|

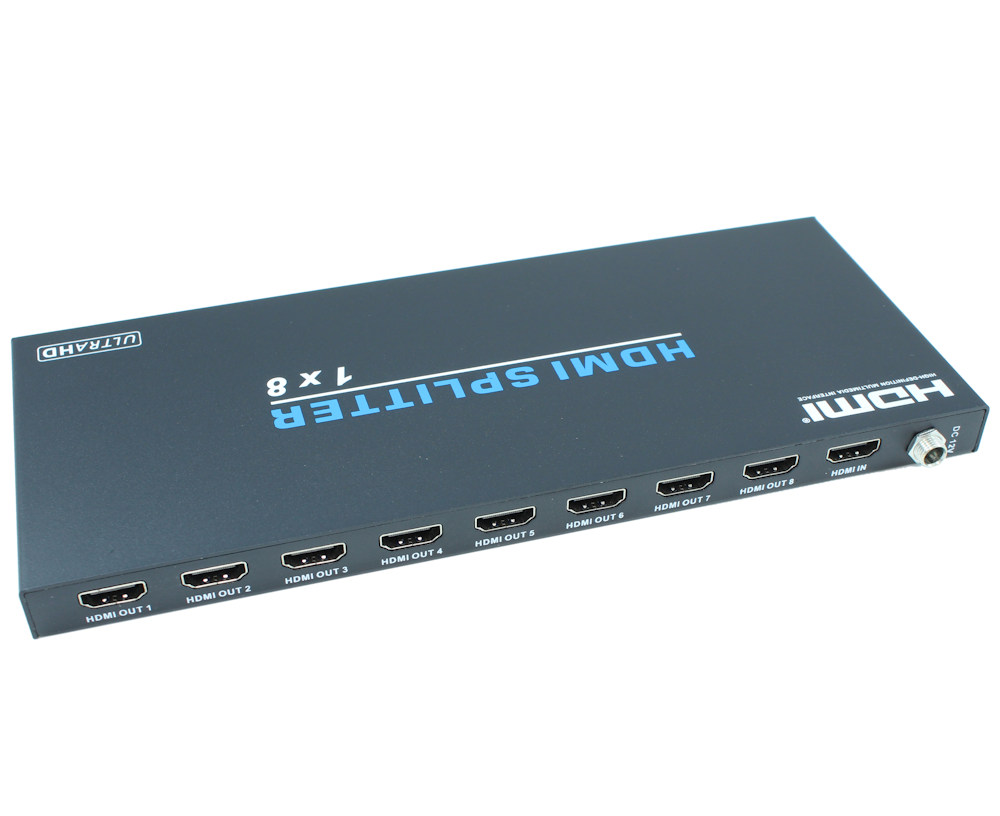

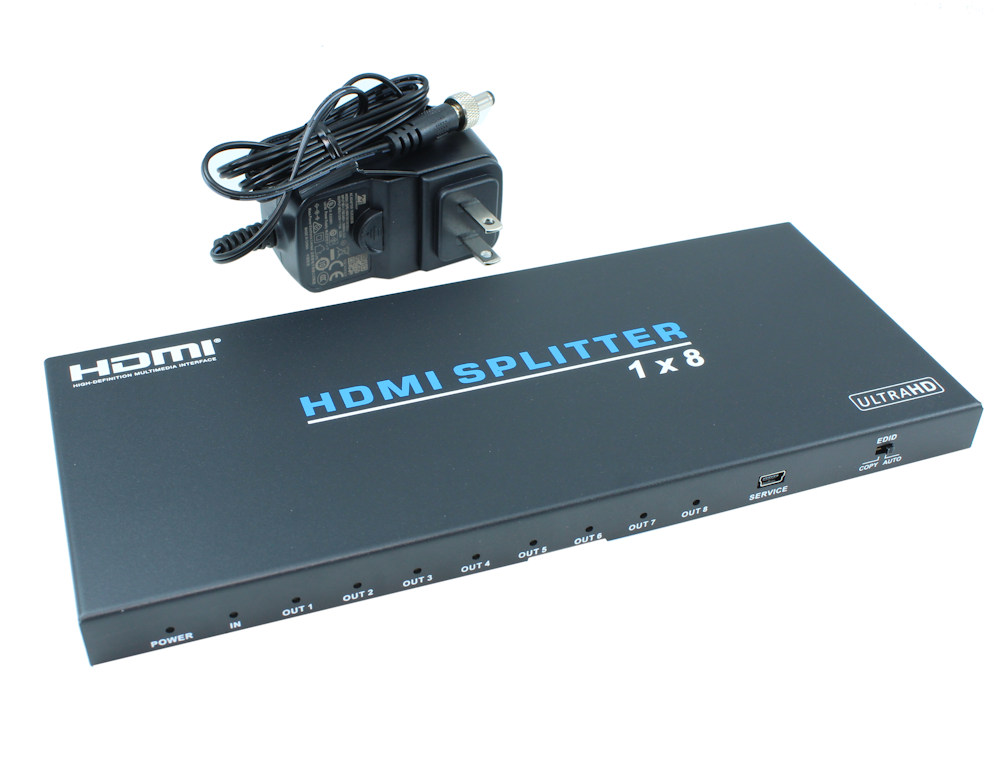

The 18Gbps 1x8 HDMI Splitter can distribute 1 HDMI source signal to 8 HDMI display devices synchronously. Supported video resolution is up to 4K2K@50/60Hz 4:4:4. The product supports advanced EDID management. It also supports HDR, HDR10, HDR10+, HLG and Dolby vision function. This product is widely used in multimedia conference halls, TV teaching, large-screen display projects and other places. Device is fully EDID configurable (via side panel DIP switches)
Features and Specifications:- HDMI 2.0b, HDCP 2.2 / DVI 1.0 compliant
- Support 18Gbps video bandwidth
- Support video resolution up to 4K2K@50/60Hz 4:4:4
- Support digital audio format: DTS-HD/Dolby-true-HD/LPCM 7.1/DTS/Dolby-AC3/DSD
- Support HDR, HDR10, HDR10+, HLG and Dolby vision
- Advanced EDID management (Copy/Auto dip-switch settable)
- Compact design for easy and flexible installation
- Video: 594MHz/18Gbps, 8-bit,10-bit,12-bit(1080p@60Hz), 8-bit (4K2K@60Hz YUV4:4:4), 8-bit,10-bit,12-bit(4K2K@60Hz YCbCr 4:2:2/4:2:0)
- Color: RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2/4:2:0, Support HDR, HDR10, HDR10+, HLG, Dolby vision
- Audio Formats: PCM 2CH, LPCM 7.1/5.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos and DTS:X
- Inputs/Outputs: 1 HDMI Input, 8 HDMI Outputs, 1 Micro-USB (Service)
- Metal Enclosure, Black
- Dimensions: WxDxH: 243 x 102 x 16mm
- Power: Input: AC100 - 240V 50/60Hz, Output: DC 12V/1A, (US/EU standards, CE/FCC/UL certified)
|
