5 IN/1 OUT HDMI Switch AUTO-SELECT, 4Kx2K @60Hz / 4:4:4 / HDCP2.2, Remote
|
|
|
|
|
|
|
Lengths Available: |
2x1, 2x1, 2x1, 2x1, 3x1, 3x1, 4x1, 5x1, |
|
Colors Available: |
|
|
Part Numbers this model: |
HA-HSW21K, HA-CSW21NN00NK, CE-HSWUH0201S, HD-C-SWC21, HD-S-B31, FE-CSW31NN00K, CE-HSWUH0401S, HD-S-B51, |
| |
|
|
Sales Category: |
HDMI Switch/Boosters |
Wire Gauge (AWG): |
Not Specific / Not Applicable |
|
Connector A: |
HDMI Standard Type A Female |
Specification: |
|
|
Connector B: |
HDMI Standard Type A Female |
Number Ports: |
N/A |
|
Export Tariff Code (HST): |
8525503035 |
Transfer Rate: |
|
|
Feature / Style: |
|
Images Length/Size Shown: |
5x1 |
|
# Positions: |
|
Shielding: |
|
|
Convert From/To: |
|
Type: |
HDMI Switch |
|
| |

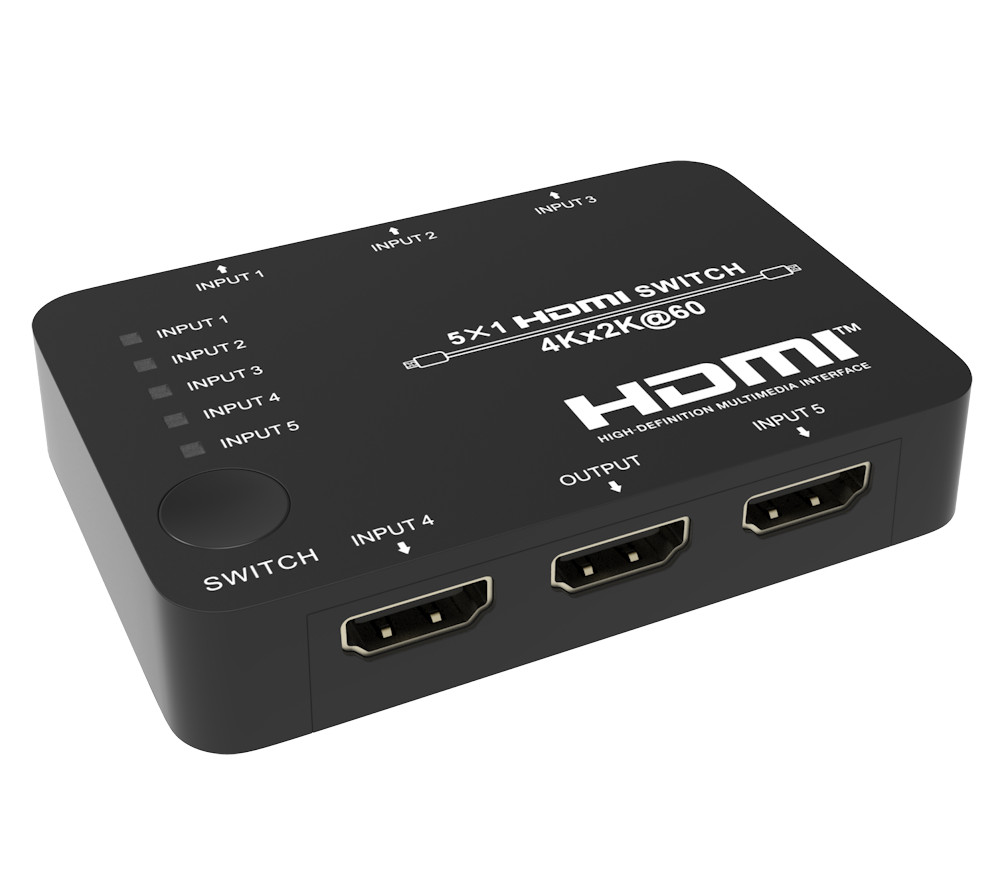

The 18Gbps 5 by 1 HDMI Switcher can switch any of 5 HDMI sources to 1 HDMI display. Supported video resolution is up to 4K2K@50/60Hz YCbCr 4:4:4. The product supports HDR, HDR10, Dolby Vision and HLG. It supports all 3D video formats. The product has low power consumption. It can also be controlled by the panel button and remote control.
Specifications and Features:- HDCP 2.2/1.x and DVI 1.0 compliant
- Support 18Gbps video bandwidth
- HDR, HDR10, Dolby Vision and HLG are supported
- Support video resolution up to 4K2K@50/60Hz YCbCr 4:4:4
- Support 3D video format
- Low power consumption
- Support IR remote control and panel button control
- Compact design for easy and flexible installation
- Power: 5V USB Cable, Power supply NOT included
- Video: Up to 4k2k@60Hz, 18Gbps, RGB, YCbCr 4:4:4 / 4:2:2. YUV 4:4:4
- Audio: PCM2.0/5.1/7.1CH, Dolby 5.1, DTS 5.1, Dolby True HD, DTS-HD Master Audio
- Dimensions: (WxDxH) 87mm x 59.5mm x 19mm
|
