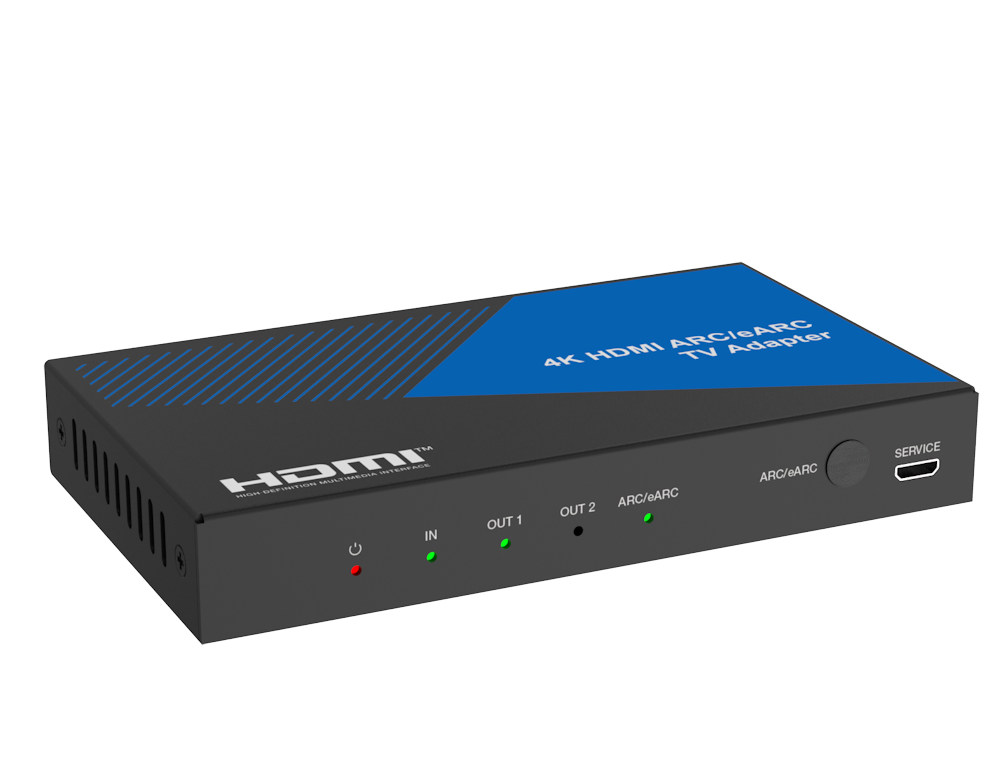

This 4K@60Hz (18Gbps) HDMI ARC/eARC Audio Adapter is capable to output Dolby Atmos audio from an external HDMI source to eARC/ARC sound systems. Since compliant with audio formats such as LPCM, Dolby True HD and DTS-HD Master Audio, this adapter is a perfect solution for connecting SONOS ARC/BOSE 500/BOSE 700 soundbars and other eARC/ARC audio/video receivers. It also provides a dedicated HDMI output port for outputing audio only when connecting with legacy AVR without eARC/ARC function. For complete product details, click the TECH DOC for the product manual.
Features and Specifications:- HDMI 2.0B and HDCP 2.3 compliant
- Support video resolution up to 4K2K@60Hz/18Gbps with 24-bit RGB/YCbCr 4:4:4
- Support HDR, HDR10, HDR10+, Dolby Vision and HLG pass through
- Support HDMI audio formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio,DSD
- Perfect solution for SONOS(TM) ARC/BOSE(TM) 500/BOSE(TM) 700 Soundbars and other eARC/ARC audio/video receivers
- Dedicated HDMI port for outputing audio only when connecting with legacy AVR without eARC/ARC function
- Built-in Equalizer, Retiming and Driver
- Auto EDID management
- Compact design for easy and flexible installation
- Package Contents: Electronic Adapter/Converter, 5V/1A Power Supply, Manual
- Resolutions to: Up to 4K2K@60Hz with 24-bit RGB/YCbCr 4:4:4, 8-bit,10-bit,12-bit, RGB, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0
- Audio Formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
- Input Ports: 1 HDMI
- Output Ports: 1-HDMI SOUND BAR, 2-HDMI OUT Additional, 1 Micro-USB for service updates
- Dimensions: 120Wx70Dx16H mm, 210G
- Power: DC 5V/1A, Consumption: 2.28W Max
|
