HDMI 4K@30Hz over Cat5E/Cat6 Network Cable Kit w/IR & Loop Out


 Lengths Available: 164ft, 230ft,
 Colors Available:
 Part Numbers this model: HD-C-EDB50C, HD-C-ED970C,

 Sales Category: HDMI Cables  Wire Gauge (AWG): Not Specific / Not Applicable
 Connector A: HDMI Standard Type A Female  Specification:
 Connector B: RJ45 Ethernet Female  Number Ports: N/A
 Export Tariff Code (HST): 8525503035  Transfer Rate:
 Feature / Style: Images Length/Size Shown: 230 FT
# Positions: Shielding: Double Shielded
Convert From/To: Type:

The HDMI with 4K@30Hz 10.2Gbit support OVER CAT5e/CAT6 is designed to carry HDMI signals up to 130ft, and to 1080P@60Hz up to 230ft. It extends video over the cost-effective Cat5e/CAT6 cables (1 ONLY cable required). Power over cable is also supported, powering from either end with a single power supply. Using a SINGLE CAT5E or CAT6 (solid core recommended) networking cable. CAT6 is recommended for 4K@30Hz signals.

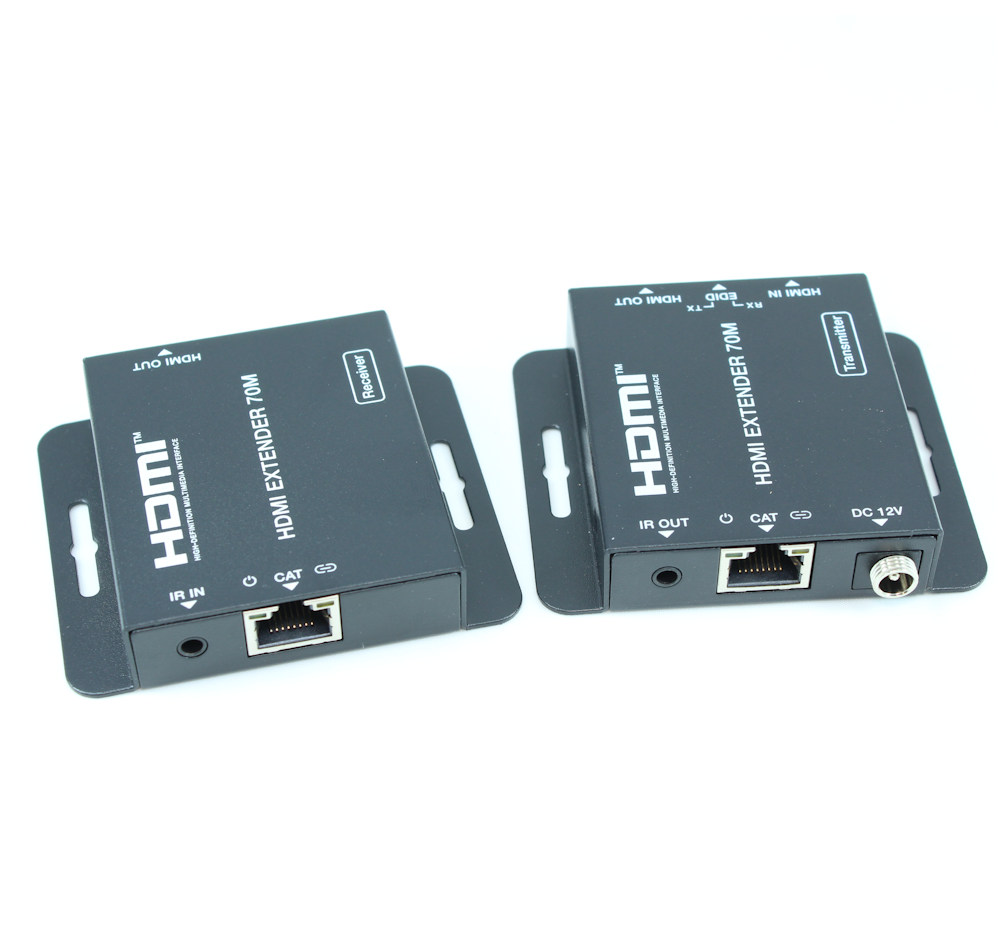

This HDMI Extender can extend high definition video/audio signal and IR control signal up to 230ft/70m for 1080p resolution, and 131ft/40m for 4K@30 resolution via a single CAT6 cable, which can achieve zero-delay,
uncompressed long-distance transmission between the transmitter and receiver. This extender with HDMI loop output can be cascaded to the next extender, supporting resolution up to 4K@30Hz. It supports EDID copy function (you can choose local or remote EDID). It supports audio formats up to PCM7.1, Dolby True HD, DTS HD. This product can be widely used in multimedia conference halls, TV teaching and large-screen displays.

Features and Specifications:
  • Extend HDMI over CAT5/6 up to 230ft (for 1080P), 130ft (for 4K@30Hz)
  • Resolutions (HDTV): 480i/576i/480p/576p/720p/1080i/1080p/4Kx2K at 30Hz
  • Digital audio support through HDMI
  • HDMI 1.4 and HDCP 1.4 Compliant
  • Automatic EDID functionality
  • Supports IR (Infra-red) blaster

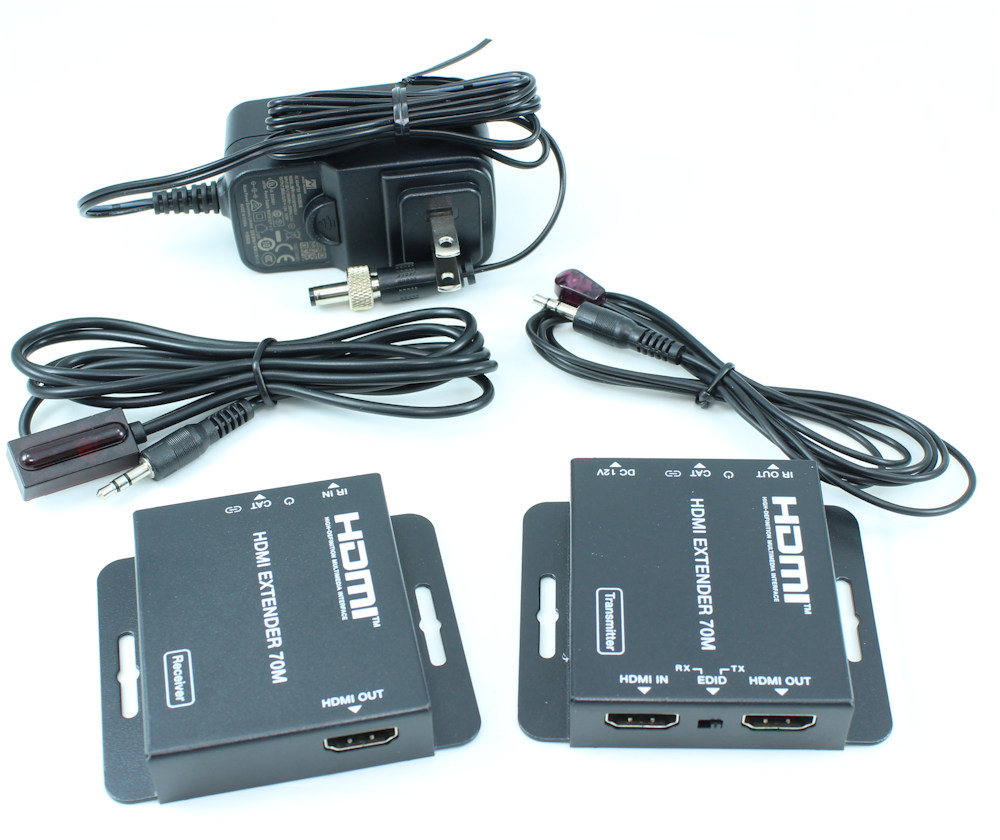

  • IR (20-60Hz) Transmitter and Receiver cables included (each 1.5 meters)
  • Compact metal enclosure, 12V/1A Power supply included
  • REQUIRES: 1 Cat5e/CAT6 networking cables (not included) up to 164ft / 50 Meters. CAT6 recommended.
  • 1-Way IR, from Receiver to Transmitter

NOTE: The use of SOLID CORE 23AWG CAT6 cable (as opposed to STRANDED patch cables) when attempting to support 4K signals for any length is strongly recommended.

Important Tech Note: The loop output works in two ways, in relation to the source connected to the TX. If the source is locked to a resolution, let's say 4k60, and your main display is capable of that resolution but the loop output is not, you will get a black screen/no signal on the loop output. If the source is set to 'auto' meaning it will set its output based upon the EDID table of the display, connecting a lower resolution display to the loop out will result in the EDID table of the main display and loop out display to be compared and will inform the source of the highest common resolution between them and set that resolution on the source output. If you're connecting the loop out temporarily as a test point and the system resolution was lowered to accommodate the loop out, you will need to reset the transmitter to have the EDID re-sync with the permanent TV to regain max resolution once you remove the loop out display.
