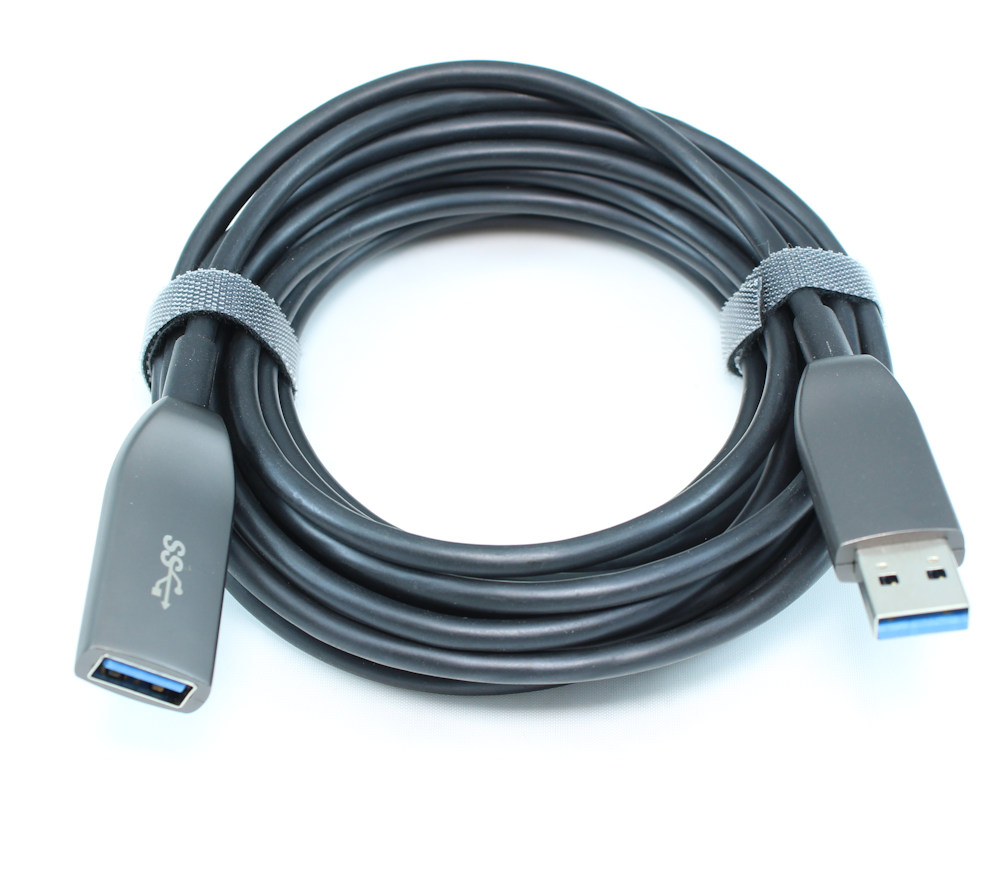

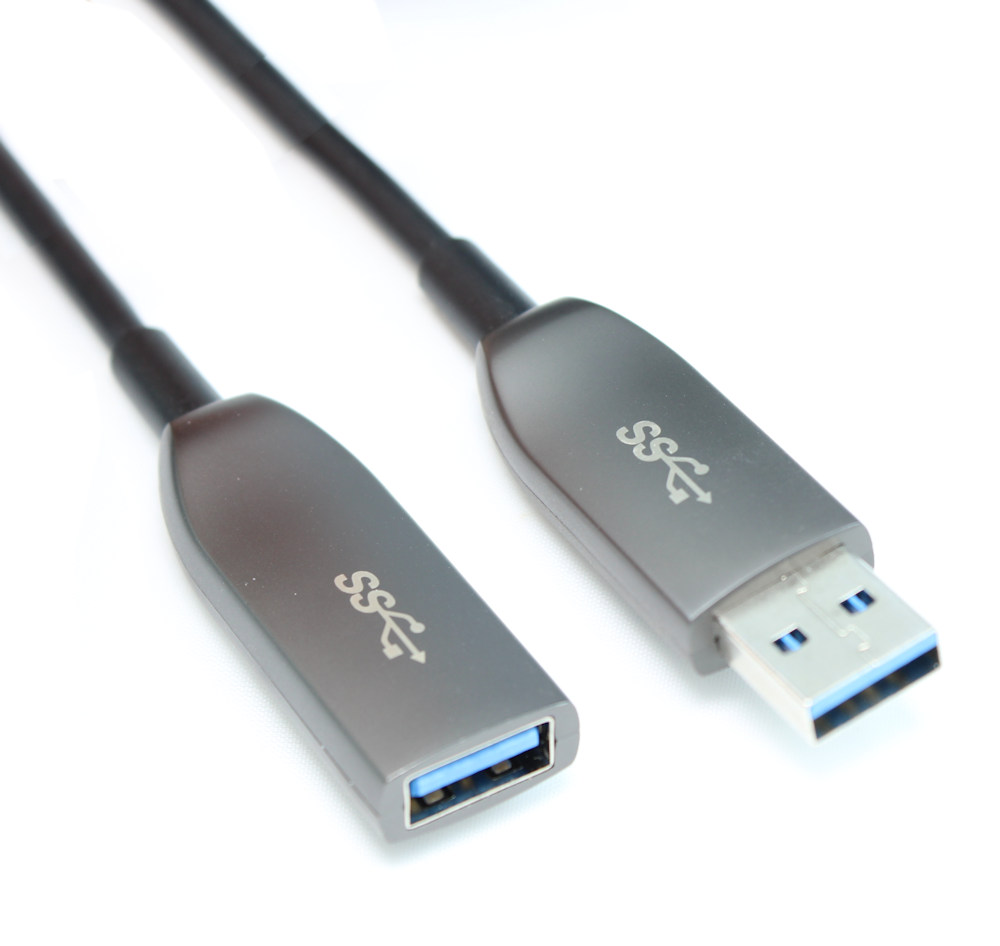

USB 3.2 Gen 1 5Gbps Type A Male to Female EXTENSION Fiber Cable


 Lengths Available: 10ft, 15ft, 16ft, 16ft, 25ft, 35ft, 50ft,
 Colors Available:
 Part Numbers this model: HA-USB3-AX-10, HA-USB3-AX-15, BB-USB3-RPTR, CV-USB3A-AF-16ACT, CV-USB3A-AF-25ACT, CV-USB3A-AF-35ACT, CV-USB3A-AF-50ACT,

 Sales Category: USB Cables  Wire Gauge (AWG): 24 AWG, 28 AWG
 Connector A: USB Standard Type A Male  Specification: USB 3.0 (USB 3.1 Gen 1, Superspeed)
 Connector B: USB Standard Type A Male  Number Ports: N/A
 Export Tariff Code (HST): 8544700000  Transfer Rate: 5Gbps
 Feature / Style: Data Transfer and Charge Images Length/Size Shown: 10 FT
# Positions: Shielding: Shielded
Convert From/To: Type:

IMPORTANT NOTE: USB 3.2 Gen 1 terminology defines certain data speeds and specifications that a USB 3 cable adheres to. Many of our USB 3.2 Gen 1/Gen 2 cables have physical markings on the cable raw material that only state "USB 3". The cable assembly itself has met and certified to meet USB 3.2 Gen1 specifications based on the product title description.

Extend your USB 3 cable while maintaining 5Gbps SUPERSPEED capabilities using leading edge FIBER OPTICAL technology! This specialized cable is an active optical cable system designed to connect two USB-enabled devices with high performance, low power consumption, and low cost. Using optical fiber to replace copper wire as the high-speed signal transmission medium, this USB fiber cable can perfectly transmit USB 3.0 (5Gbps) to distances up to 150 feet. Compared with traditional copper wire cables, fiber USB is not only longer, softer, and slimmer, but also offers better signal quality without the need for external power for USB 3.0 speeds.

Simply connect your shorter length USB 3 Type-A to Type-C Male/Male (or other cable, sold separately) to this fiber extender to lengthen your net USB cable run to 100+ feet!

Specifications and Details
  • USB 3.2 Gen 1 Technology speeds to 5Gbps
  • Extend an existing USB 3 Type A cable up to 150ft
  • Thin 4.2mm Outer Diameter
  • Minimum Bend Radius: 25mm (Approx 1 inch)
  • Operating Temperature Range: -20 to 70C (-4F to 158F)
  • Cable Type: TPE Jacket
  • Connector A: USB 3.2 Type A Male, Connector B: USB 3.2 Type A FEMALE

NOTE: This product is NOT backward compatible with USB 2.0 type devices. USB 2.0 cables or device will NOT work with this product
