2 IN/1 OUT HDMI Switch AUTO-SELECT, 4K@30Mhz, HDCP2.2
|
|
|
|
|
|
|
Lengths Available: |
2x1, 2x1, 2x1, 2x1, 3x1, 3x1, 4x1, 5x1, |
|
Colors Available: |
|
|
Part Numbers this model: |
HA-HSW21K, HA-CSW21NN00NK, CE-HSWUH0201S, HD-C-SWC21, HD-S-B31, FE-CSW31NN00K, CE-HSWUH0401S, HD-S-B51, |
| |
|
|
Sales Category: |
HDMI Switch/Boosters |
Wire Gauge (AWG): |
Not Specific / Not Applicable |
|
Connector A: |
HDMI Standard Type A Female |
Specification: |
|
|
Connector B: |
HDMI Standard Type A Female |
Number Ports: |
N/A |
|
Export Tariff Code (HST): |
8525503035 |
Transfer Rate: |
|
|
Feature / Style: |
LED Indicator |
Images Length/Size Shown: |
2x1 |
|
# Positions: |
|
Shielding: |
|
|
Convert From/To: |
|
Type: |
HDMI to BNC Converter |
|
| |

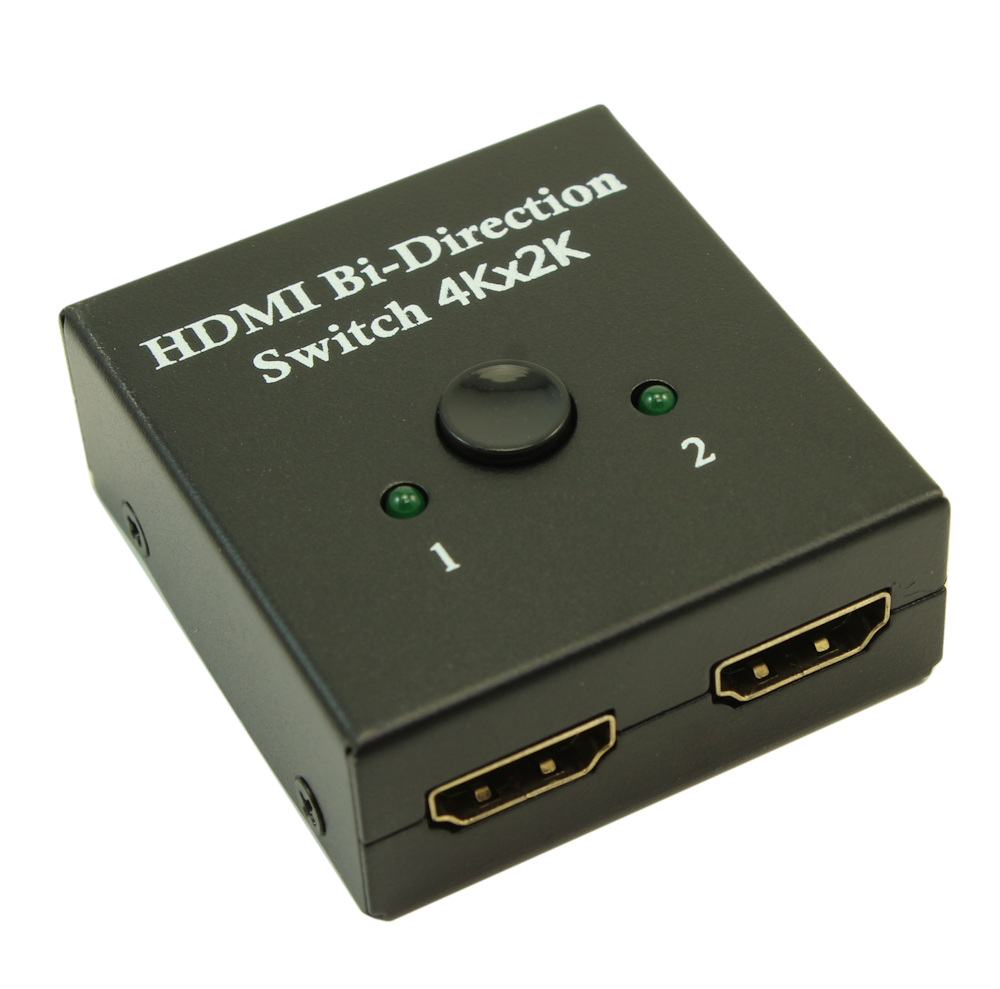

The 2 x 1 4K HDMI switcher routes high definition video (in multiple resolutions up to 4K@30Hz, but also supporting 1080P) and digital audio from any one of the two sources to 1 display unit. Two inputs accommodate the simultaneous connection of up to two high definition video sources, such as satellite, cable box, and BlueRay players. The output sends the high definition audio/video signals to a high definition HDTV display. Switching is done via it self automatically when signal present on the ports OR by depressing the top button. NOTE: Some devices are not fully compatible with the auto-switching feature as even when the device is powered OFF, it continues to output a video signal. Switch works WITHOUT a power supply to HDMI cable lengths of 25ft.
This switch is also BI-DIRECTIONAL, meaning that you can use is in REVERSE attaching the SOURCE video to the OUTPUT port, and the 2 TVs to the INPUT ports and act as an HDMI VIDEO SWITCHER. Only ONE TV will display at a time, however.
Features:- Switch easily between any two HDMI sources automatically, or use button
- Maintains high resolution video, sharp HDTV resolutions up to 4K@30Hz
- Resolutions supported: 480, 720, 1080, 2160, 3840, 4096
- No external power needed (for lengths 25ft or less)
- Up to 36-bit color depth
- Durable metal chassis
- Can be used in REVERSE: 1 HDMI source, switch between 2 HDMI Displays.
- Supports the following audio formats: DTS Master Audio, LPCM, Dolby AC3 and Digital Plus
- HDMI pass-through
- HDCP pass-through v2.2 (DRM)
This is a NON-POWERED switch and is only recommended for short cable length runs, and for use with cables of good quality. The use of LONGER cables for either the SOURCE or DESTINATION feeds may result in signal loss
|
