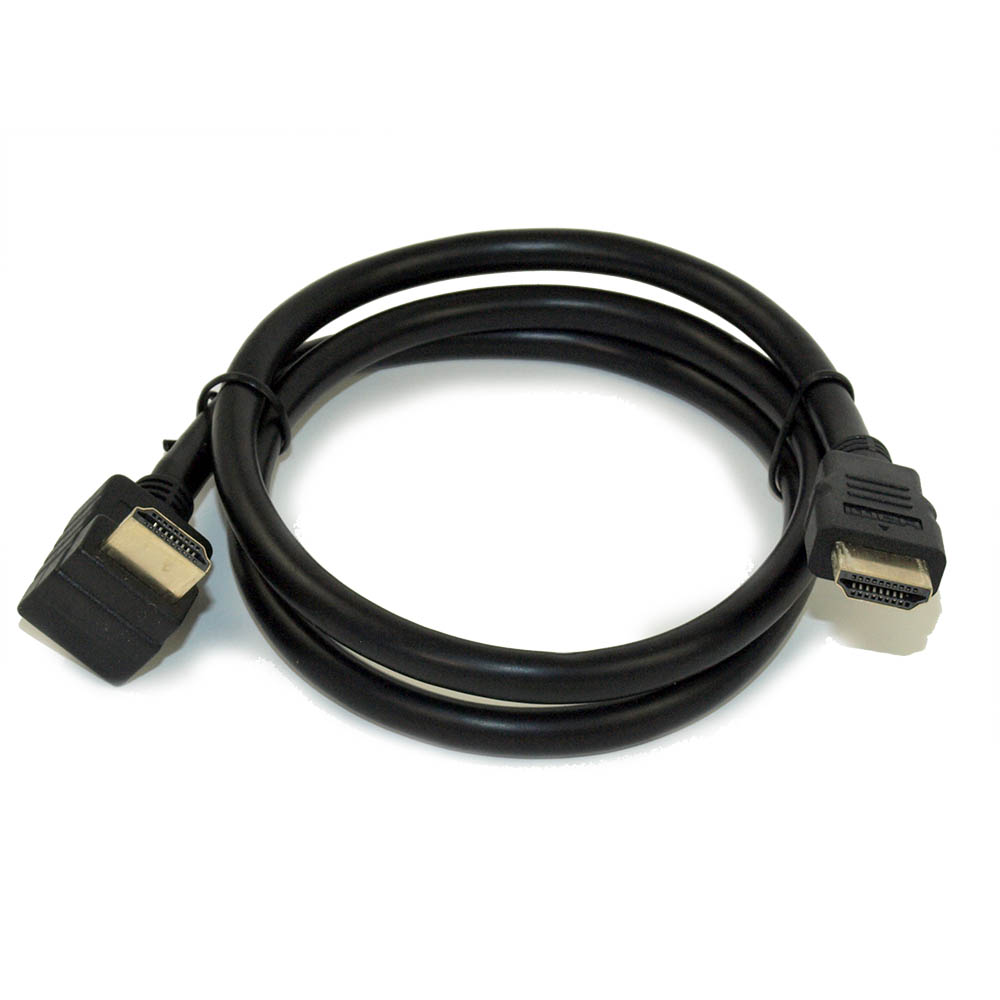

90 Degree ANGLED High Speed HDMI Cable 4K@60Hz/18Gbps 28AWG
|
|
|
|
|
|
|
Lengths Available: |
3ft, 6ft, 10ft, 15ft, |
|
Colors Available: |
|
|
Part Numbers this model: |
HA-HH90-03, HA-HH90-06, HA-HH90-10, GC-HH90-15, |
| |
|
|
Sales Category: |
HDMI Cables |
Wire Gauge (AWG): |
28 AWG |
|
Connector A: |
HDMI Standard Type A Male |
Specification: |
|
|
Connector B: |
HDMI Standard Type A Male |
Number Ports: |
N/A |
|
Export Tariff Code (HST): |
8544422000 |
Transfer Rate: |
|
|
Feature / Style: |
|
Images Length/Size Shown: |
3 FT |
|
# Positions: |
80 |
Shielding: |
Double Shielded |
|
Convert From/To: |
|
Type: |
|
|
| |
Connect any Blu-Ray player, Satellite Box, Cable Box, DVD Player, or ANY device accepting the standard HDMI connector. All our HDMI cables are manufactured to specific HDMI LLC standards and have passed stringent ATC testing requirements (see our certificates below).Features and Description:
- 100% Backward compatible with all previous HDMI versions

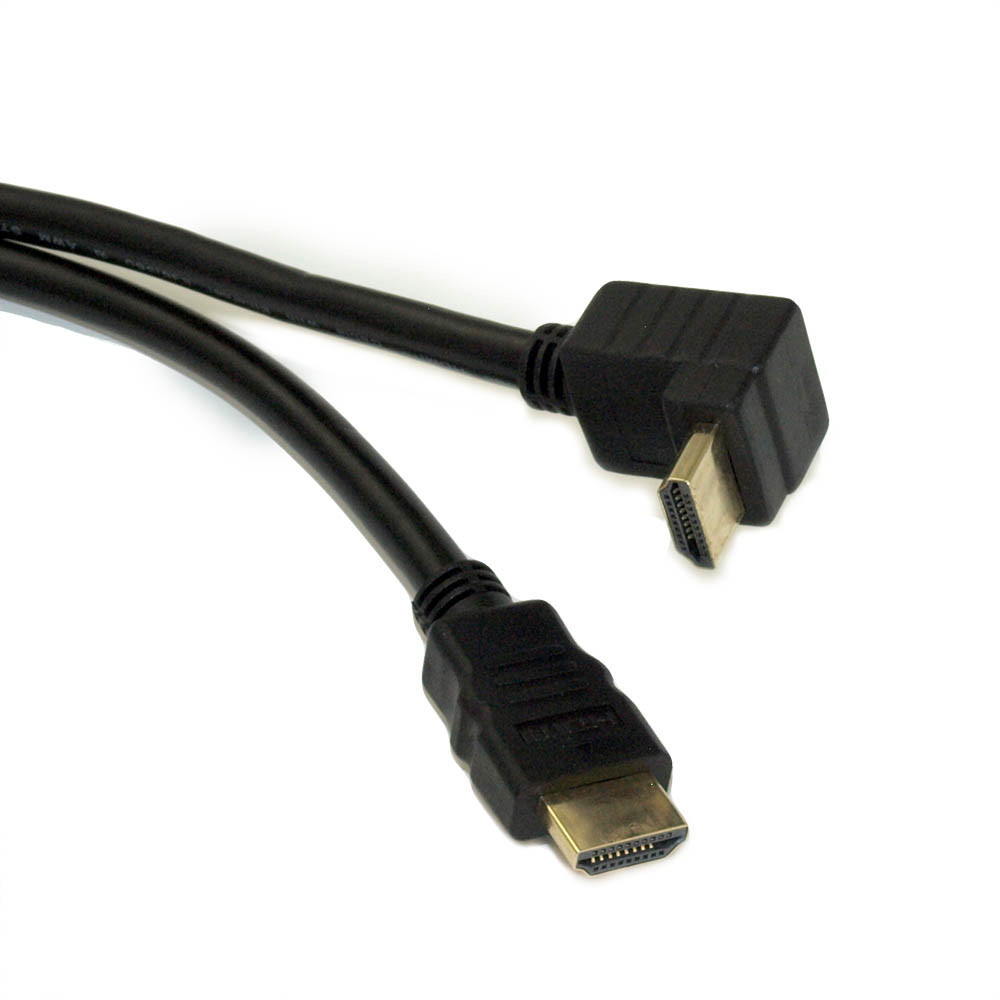

- One connector end at 90 degrees for hard to reach places. Other end at standard 180 degrees (Straight)
- 4K x 2K Support - Supports ANY resolution to 4K (4096x2160) at 30/60Hz
- HDMI Ethernet Channel - Delivers Ethernet data interconnectivity to compatible devices through the HDMI port so you don't need extra cables to get extended features
- Audio Return Channel
- Full 3D Support - If your source and receiving device support 3D, this cable will!
- Support for ANY TV refresh rates (such as 120Hz/240/480/600Hz), HDCP 1.2 and 2.2
Cable Specifications:
- Wire Gauge: 28AWG
- End Connector Dimension (Straight End): 20.1mm W x 10.7mm H, Cable Thickness: 7.5mm
- High Speed bandwidth: 10.2 GigaBit/sec (Tested and Certified to ATC Specification)
- Gold Plated 1u (All 19 wires and Ground Shroud)
- 19 pin, Male to Male, Type A Connector
- Silver-tinned PURE copper wire for maximum conductivity - without ANY harmful lead (RoHS)
- Triple Shielded, EMI (Foil, braid, foil)
|
