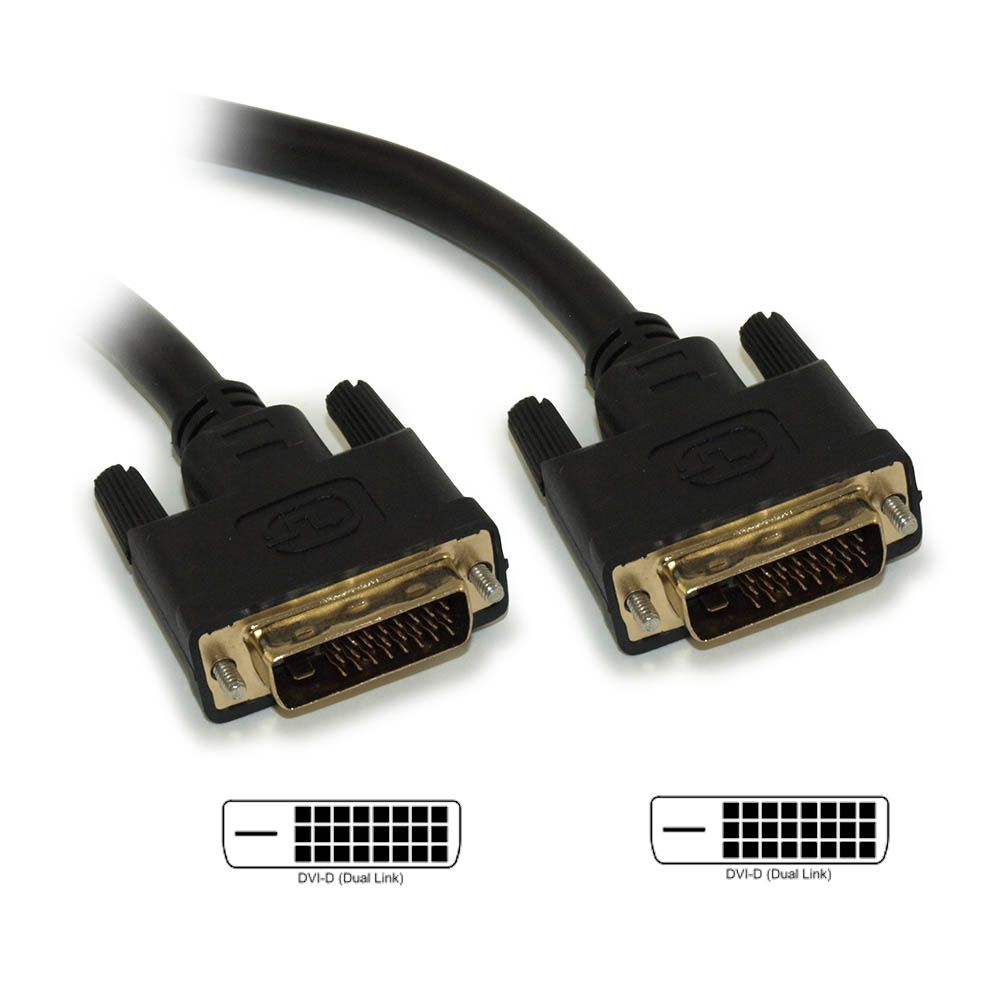

DVI-D Dual Link DIGITAL (24 AWG) Male to Male Gold Plated Cable

Lengths Available:	6in, 1.5ft, 3ft, 6ft, 10ft, 15ft, 25ft, 30ft, 35ft, 50ft,
Colors Available:
Part Numbers this model:	FE-DD-6IN, GC-DD-01, GC-DD-03, GC-DD-06, HA-DD-10, GC-DD-15, HA-DD-25, GC-DD-30, HA-DD-35, HA-DD-50,

Sales Category:	DVI Cables	Wire Gauge (AWG):	24 AWG
Connector A:	DVI-D (Dual Link) Male	Specification:
Connector B:	DVI-D (Dual Link) Male	Number Ports:	N/A
Export Tariff Code (HST):	8544422000	Transfer Rate:

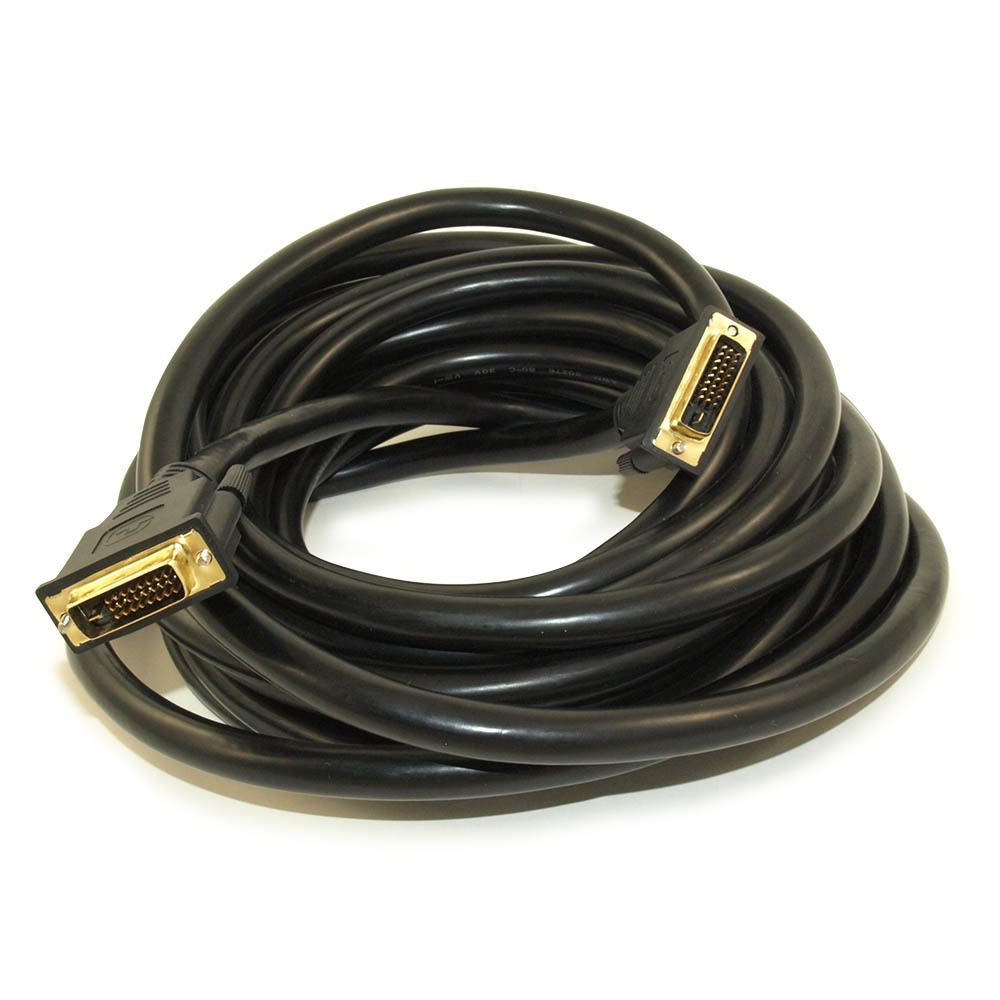

Feature / Style:		Images Length/Size Shown:	25 FT
# Positions:		Shielding:	Double Shi
Convert From/To:		Type:

Digital Visual Interface (DVI) is the standard interface for a high-performance connection between PCs and flat panel displays, digital CRT displays, projectors, and HDTV

Signal Type: Digital ONLY

Connector Finish: Gold Plated

Gauge/AWG: 24AWG

Pin Configuration 24 + 1 Blad

Shielding level: Triple

Shielding type: EMI

Ferrite Cores: No

1080p support Yes

Bandwidth: Dual Link (Single Link also supported)

Maximum Resolution 2048 x 1536

Min Clock Freq. 21.76 Mhz, Max: 165 Mhz x 2

Max Throughput 7.4 Gbs

Pixels per cycle 2, Bits per Pixel 24

DDWG, HDCP, & RoHS Compliant
This cable is NOT suitable for DVI-A (analog) connections as the HDMI standard is SINGLE LINK DIGITAL ONLY. Photo shows product WITH ferrite cores. Actual product supplied is WITHOUT ferrite cores.
DVI FAQ
The DVI connector usually contains pins to pass the DVI-native digital video signals. In the case of dual-link systems, additional pins are provided for the second set of data signals. As well as digital signals, the DVI-I connector includes pins providing the same analog signals found on a VGA connector, allowing a VGA monitor to be connected with a simple plug adapter. This feature was included in order to make DVI universal, as it allows either type of monitor (analog or digital) to be operated from the same connector.
