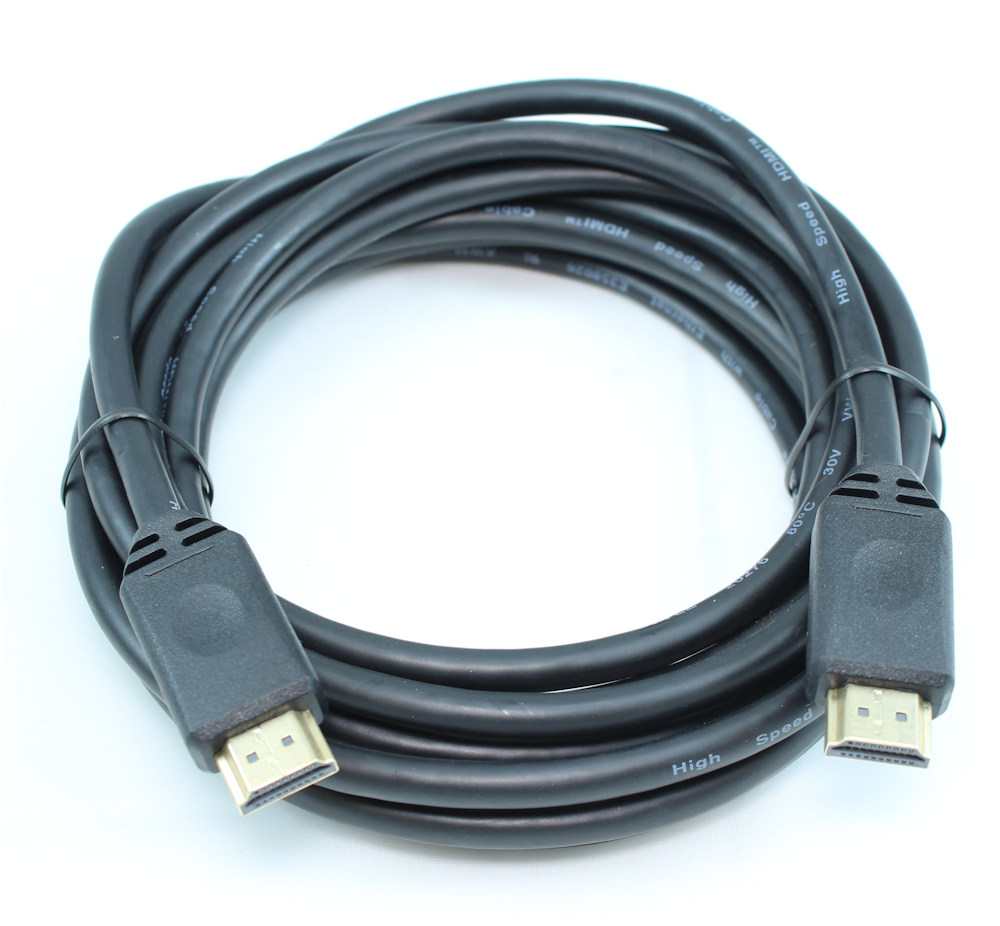

High Speed 4K@60Hz HDMI Cable 18Gbps 28AWG Gold Plated


 Lengths Available: 8in, 1.5ft, 3ft, 6ft, 8ft, 10ft, 12ft, 15ft, 20ft, 25ft, 30ft, 35ft, 40ft,
 Colors Available:
 Part Numbers this model: FE-HH14-8IN, GC-HH14-01, GC-HH14-03, GC-HH14-06, HA-HH14-08, GC-HH14-10, GC-HH14-12, GC-HH14-15, GC-HH28-20, GC-HH28-25, GC-HH28-30, GC-HH26-35, GC-HH26-40,

 Sales Category: HDMI Cables  Wire Gauge (AWG): 28 AWG
 Connector A: HDMI Standard Type A Male  Specification:
 Connector B: HDMI Standard Type A Male  Number Ports: N/A
 Export Tariff Code (HST): 8544422000  Transfer Rate:
 Feature / Style: Images Length/Size Shown: 15 FT
# Positions: 80 Shielding: Double Shielded
Convert From/To: Type:

Connect any Blu-Ray player, Satellite Box, Cable Box, DVD Player, Media Player, or ANY device accepting the standard HDMI connector. All our HDMI cables are manufactured to specific HDMI LLC standards and have passed stringent HDMI version 2.0 ATC
testing requirements.

    Supports the following features that are included in the HDMI Version 2.0 specification:
  • 4K x 2K Support - Supports ANY resolution to 4K (4096x2160) at 30/60Hz
  • HDMI Ethernet Channel - (HEC) Delivers Ethernet data interconnectivity to compatible devices through the HDMI port so you don't need extra cables to get extended features
  • Audio Return Channel-(ARC) Allows the HDMI connection between a television and A/V receiver to transmit audio two ways, both upstream and downstream. This eliminates the need for a separate audio cable and ensures you maintain the high digital audio quality of HDMI
  • Full 3D Support - If your source and receiving device support 3D, this cable will!
  • 18 Gbps Total Bandwidth (independently lab tested by Agilent Technologies to the HDMI v2.0 specification
  • Support for ANY TV refresh rates (such as 120Hz/240/480/600Hz), HDCP 1.2 and 2.2 Support

    Cable Specifications:
  • Wire Gauge: 28 AWG
  • End Connector Dimension: 20.1mm W x 10.7mm H, Cable Thickness: 7.5mm
  • High Speed bandwidth: 18 GigaBit/sec (Independently lab tested to HDMI v2.0 testing specifications)
  • Gold Plated 1u (All 19 wires and Ground Shroud)
  • Silver-plated (20u) PURE copper wire for maximum conductivity WITHOUT any harmful lead (RoHS)

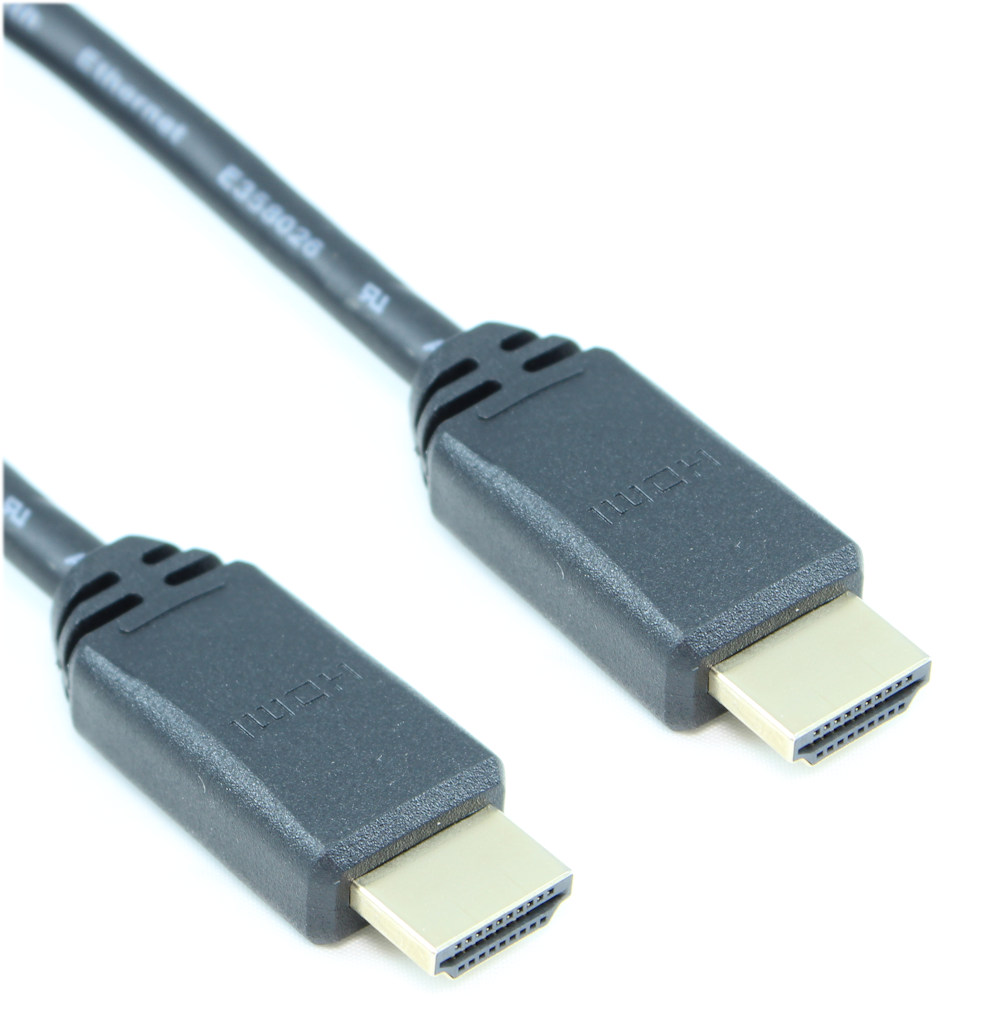

  • 19 pin, Male to Male, Type A Connector
  • Triple Shielded, EMI (Foil, braid, foil)
  • No bulky, unnecessary ferrites cores
  • UL / CSA listed (UL File #: E329703, Style: 20276), Max Temperature: 80 C
  • Fully HDMI LLC / ATC Certified to Version 2.0 testing specifications.




View ATC Testing Certificate issued by Silicon Images
View SimplayHD Verification of Testing Certificate
Manufactured by an HDMI LLC Certified Adopter (Pak Heng Technologies)
