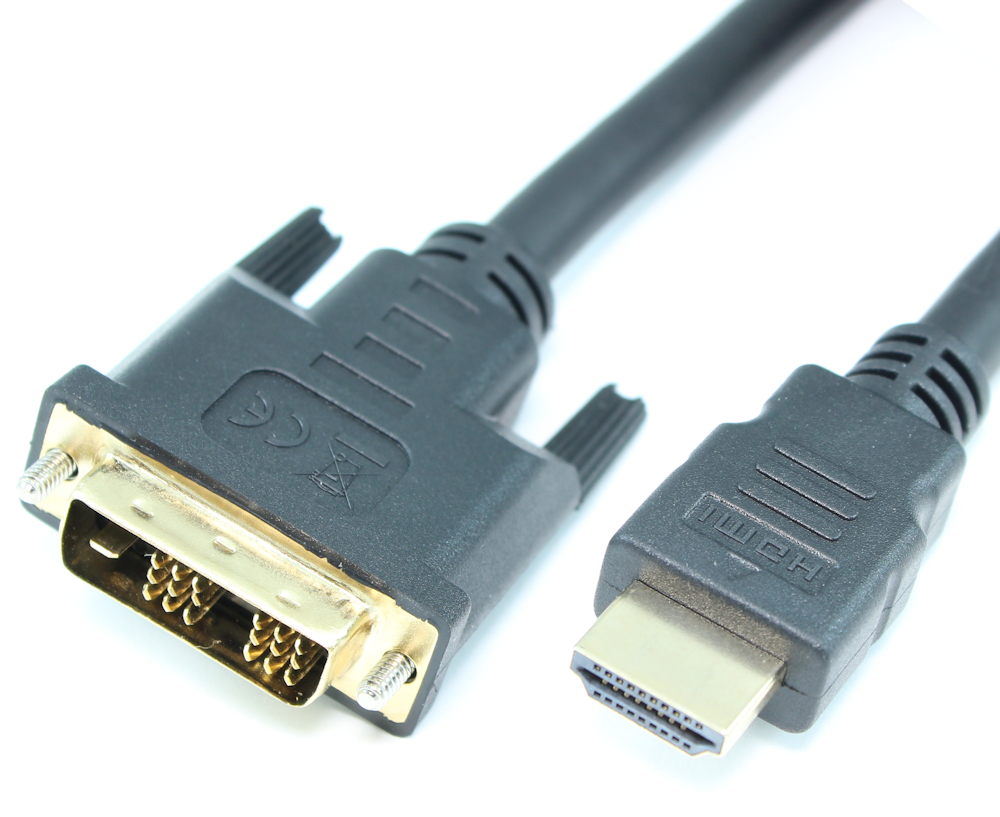

HDMI/DVI-D Combination Cable (26 AWG Gold Plated


 Lengths Available: 6in, 1.5ft, 3ft, 10ft, 15ft, 15ft, 20ft, 25ft, 35ft, 50ft,
 Colors Available:
 Part Numbers this model: HA-HD-6IN, GC-HD-01, FE-HD-03, HA-HD-10, HA-HD-15, FE-HD-15, BE-181325, GC-HD-25-8, GC-HD-35-6, HA-HD-50-6,

 Sales Category: HDMI/DVI Cables  Wire Gauge (AWG): 26 AWG
 Connector A: HDMI Standard Type A Male  Specification:
 Connector B: HDMI Standard Type A Male  Number Ports: N/A
 Export Tariff Code (HST): 8544422000  Transfer Rate:
 Feature / Style: Images Length/Size Shown: 35 FT
# Positions: Shielding: Double Shielded
Convert From/To: Type:

This "combo cable" allows a signal transmitted in EITHER HDMI or DVI-D (digital only) to be displayed in EITHER HDMI or DVI-D (digital only). DVI-D and HDMI share the same video digital encoding and are thus compatible without any electronic conversion. Because DVI-D ONLY supports video, this combo cable will NOT provide for the audio and must be provided using a different (additional) cable if needed.
  • Connectors: DVI-D 18pin + 1 blade male to HDMI Type-A Standard Male
  • Signal Type: Digital ONLY Video (no audio)
  • Connector Finish: Gold Plated
  • Gauge/AWG: 26AWG
  • Shielding level: Triple
  • Shielding type: EMI
  • Ferrite Cores: No
  • 1080p support Yes
  • Maximum Resolution 1080P
  • DDWG, HDCP, & RoHS Compliant
  • RoHS 3 Compliant
  • Operating Temperature to 80 degree C
  • Cable Outer Diameter (OD): 8.0mm
  • E358026, AWM Style: 20276

NOTE: This cable is NOT suitable for DVI-A (analog) connections as the HDMI standard is SINGLE LINK DIGITAL ONLY.
