IMPORTANT NOTE: USB 3.2 Gen 2 terminology defines certain data speeds and specifications that a USB 3 cable adheres to. Many of our USB 3.2 Gen 2 cables have physical markings on the cable raw material that only state "USB 3". The cable assembly itself has met and certified to meet USB 3.2 Gen2 specifications based on the product title description.
The USB 3.2 Gen 2 standard introduces the new symmetrical/reversible Type C connector. The new connector is only slightly larger than the older mini and micro Type B connectors, which means that it can be used on mobile devices, replacing the existing use of mini or micro connectors. Also, unlike the earlier use of different connectors for the host (Type A) and peripheral (Type B) devices, the Type C connector is used at both ends. Best of all, the connector is symmetrical, which means no more fumbling around to figure out which side is supposed to be on top. Just grab either end and plug it in! This products has FERRITES at both ends to virtually eliminate ANY EMS electrical interference required in sensitive environments.
In addition to the new connector, the USB 3.2 Gen 2 standard increases the data transfer rate to 10GBps, which is fast enough to carry full HD video and multichannel, uncompressed audio. This USB 3.2 Gen 2 cable features a male USB Type C connector on each end, supporting up to 10Gbps data transfer and 5amp of power rating. USB Gen 2 technology is backwards compatible with USB Gen 1.
Use a single cable for power, video, networking, and data
USB 3.2 Gen 2 SuperSpeed USB 10Gbps, supports up to 10Gbps data rate

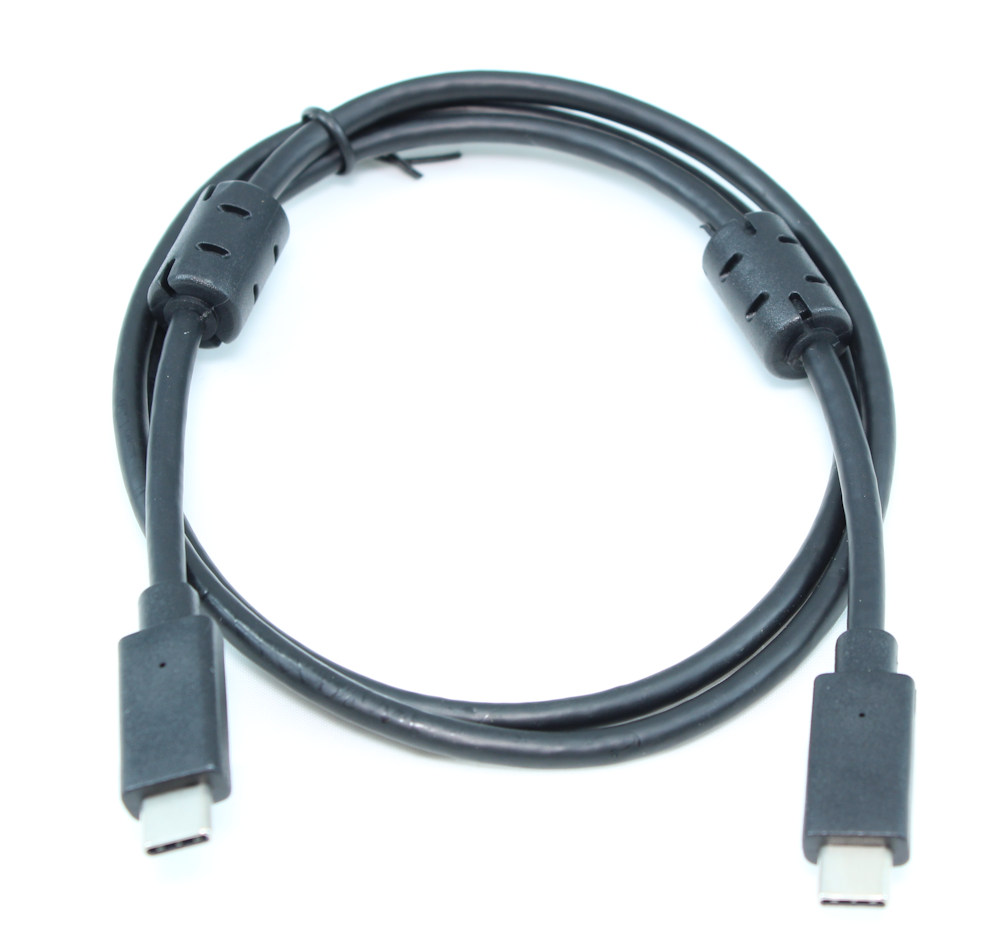

2 ferrite cores installed at each end
21 pin connection (B5, B6, and B7 NOT connected) - See tech drawing.
Charge and power devices with up to 100 watts of power
Gauge: 28AWG
USB Standard: 3.2 Gen 2
USB Gen 2 technology is backwards compatible with USB Gen 1

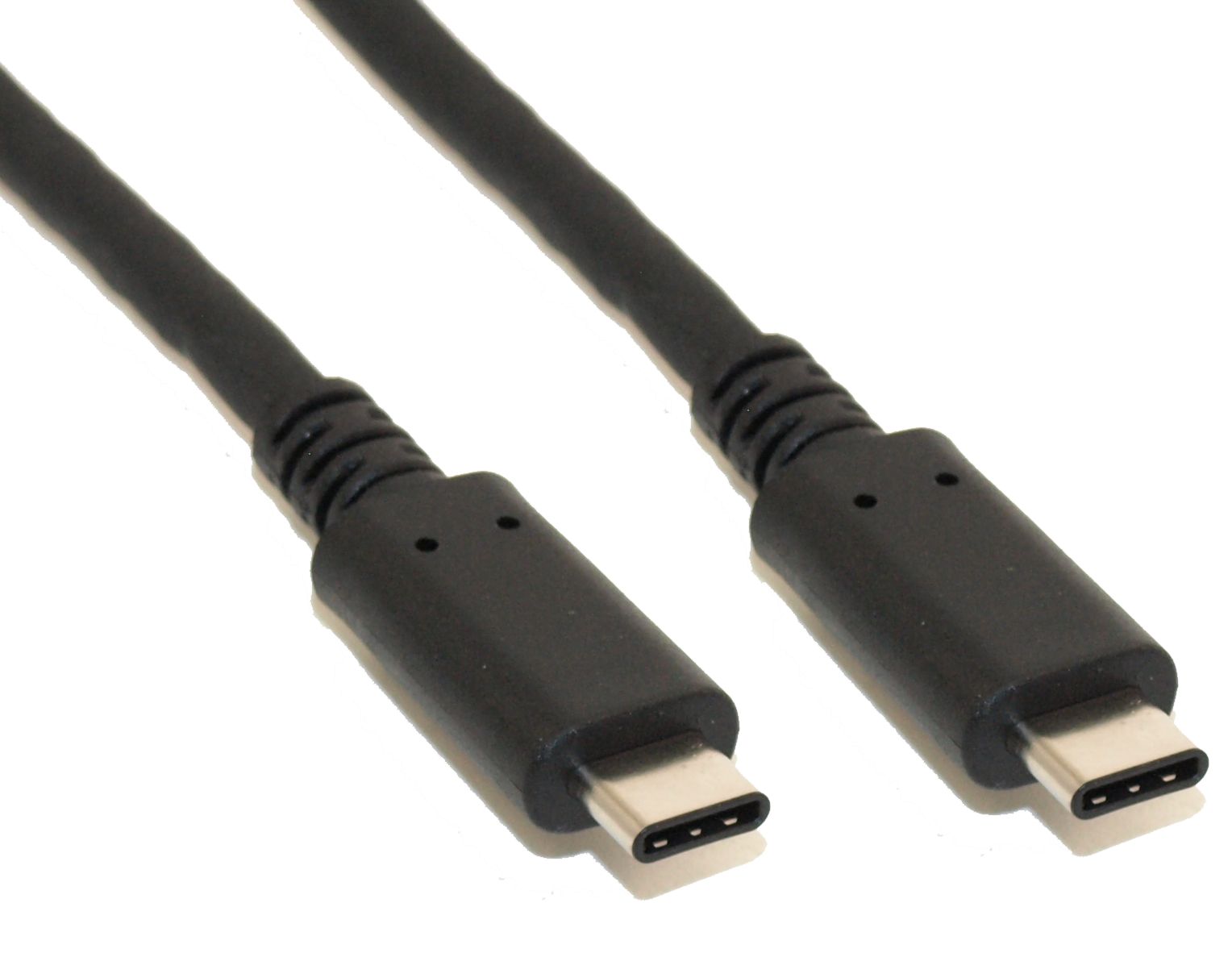

Type: USB Type C male to USB Type C male
Power Rating: Up to 5A
Data Transfer Speeds: up to 10Gbps
E-Mark chip installed to ensure proper buffering and data transfer
USB-IF License and TID Product Reg# 5200000167 and 5200000164
|
