USB 3.2 Gen 1 Type-C Male to Type-A Male Cables, 5Gbps, Black
|
|
|
|
|
|
|
Lengths Available: |
6in, 1.5ft, 2ft, 3ft, 6ft, 8ft, 10ft, |
|
Colors Available: |
Black
|
|
Part Numbers this model: |
FE-USB3-CA-6IN, FE-USB3-CA-01, FE-USB3-CA-02, FE-USB3-CA-03, FE-USB3-CA-06, FE-USB3-CA-08, FE-USB3-CA-10, |
| |
|
|
Sales Category: |
USB Cables |
Wire Gauge (AWG): |
24 AWG, 30 AWG |
|
Connector A: |
USB Type C Male |
Specification: |
USB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0)) |
|
Connector B: |
USB Type C Male |
Number Ports: |
N/A |
|
Export Tariff Code (HST): |
8544422000 |
Transfer Rate: |
5Gbps |
|
Feature / Style: |
Data Transfer and Charge |
Images Length/Size Shown: |
8 FT |
|
# Positions: |
|
Shielding: |
Shielded |
|
Convert From/To: |
|
Type: |
|
|
| |
IMPORTANT NOTE: USB 3.2 Gen 1 terminology defines certain data speeds and specifications that a USB 3 cable adheres to. Many of our USB 3.2 Gen 1/Gen 2 cables have physical markings on the cable raw material that only state "USB 3". The cable assembly itself has met and certified to meet USB 3.2 Gen1 specifications based on the product title description.
The USB 3.2 Gen 1 standard introduces the new symmetrical/reversible Type C connector. The new connector is only slightly larger than the older mini and micro Type B connectors, which means that it can be used on mobile devices, replacing the existing use of mini or micro connectors. Also, unlike the earlier use of different connectors for the host (Type A) and peripheral (Type B) devices, the Type C connector is used at both ends. Best of all, the connector is symmetrical, which means no more fumbling around to figure out which side is supposed to be on top. Just grab either end and plug it in!

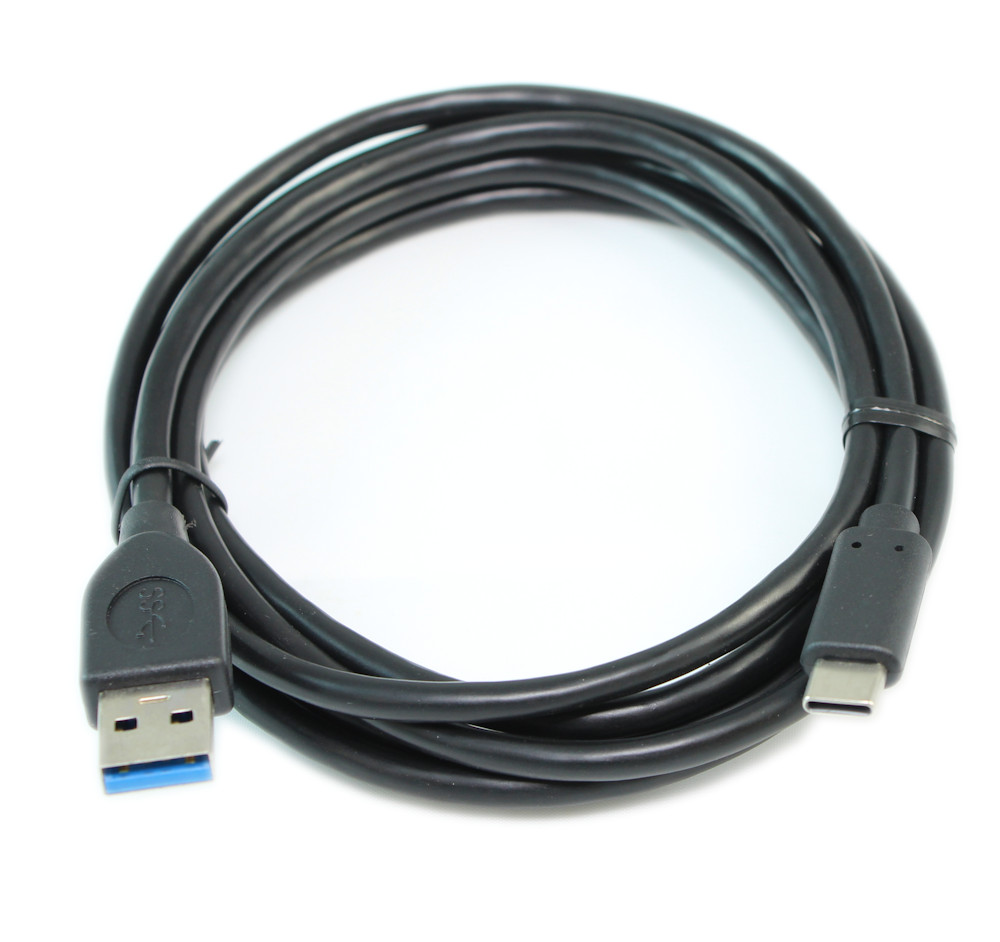

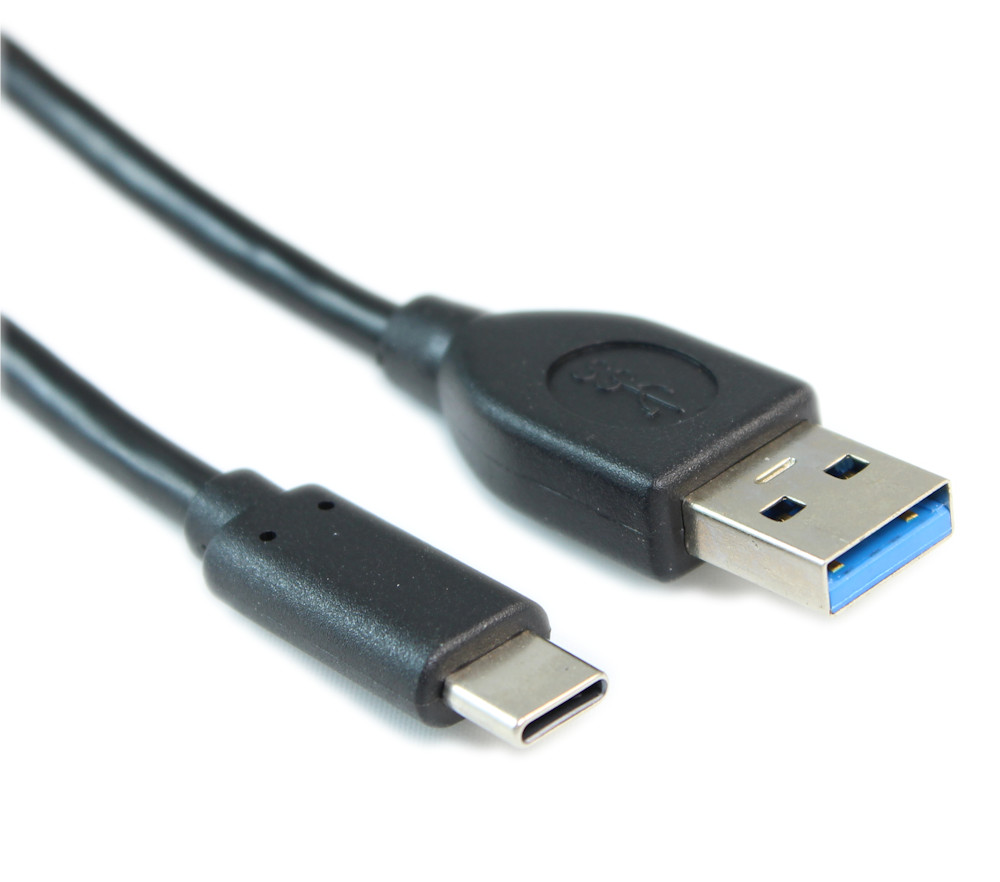

This USB 3.2 Gen 1 cable features a male USB Type C connector on one end, and a USB 3.0 Type A Male connector at the other end. This cable is manufactured under USB license, and test results submitted to USB (License # 8220, Testing Results # 5,200,000,167 & 5,200,000,164).
Use a single cable for power, video, networking, and data
USB 3.2 Gen 1 SuperSpeed supports up to 5Gbps data rate
Gauge: 30AWG Data, 24AWG Power
Required 56K+-10% Resistor at pin A5
USB Standard: 3.2 Gen 1
Type: USB Type C male to Type A male
Approx USB C PVC dimensions: 12.5 W x 6.5 H x 23 L (mm)
Power Rating: Up to 3A
Data Transfer Speeds: up to 5Gbps
|
