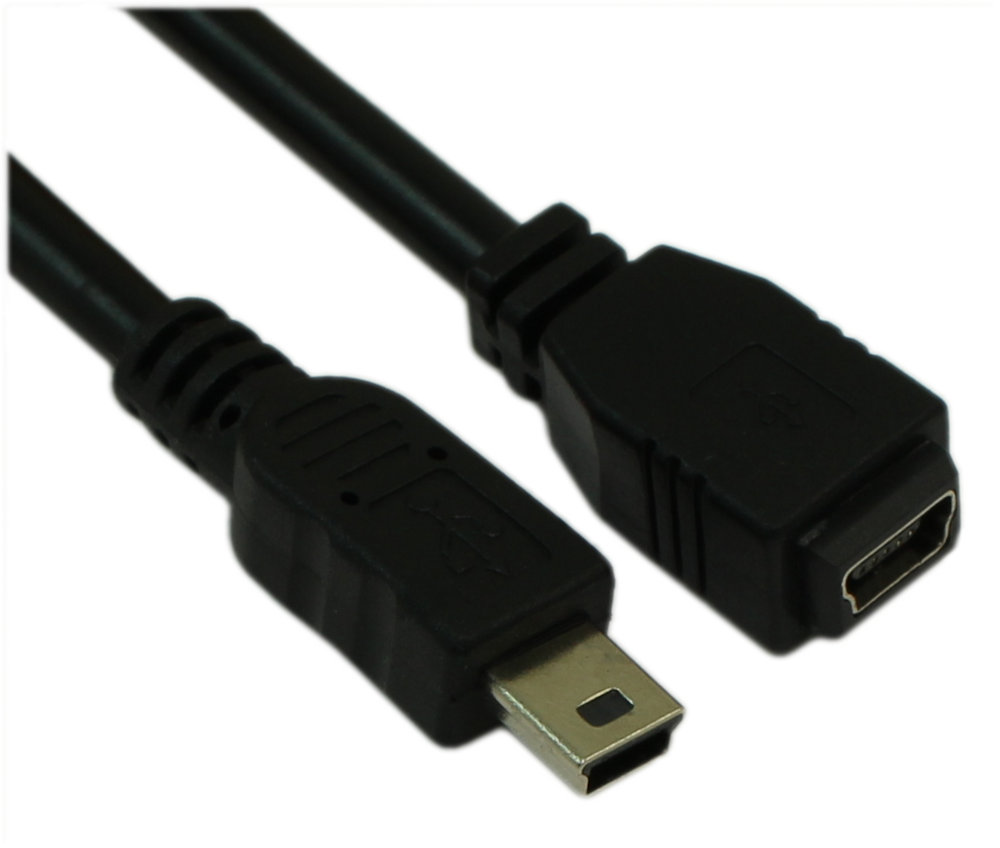

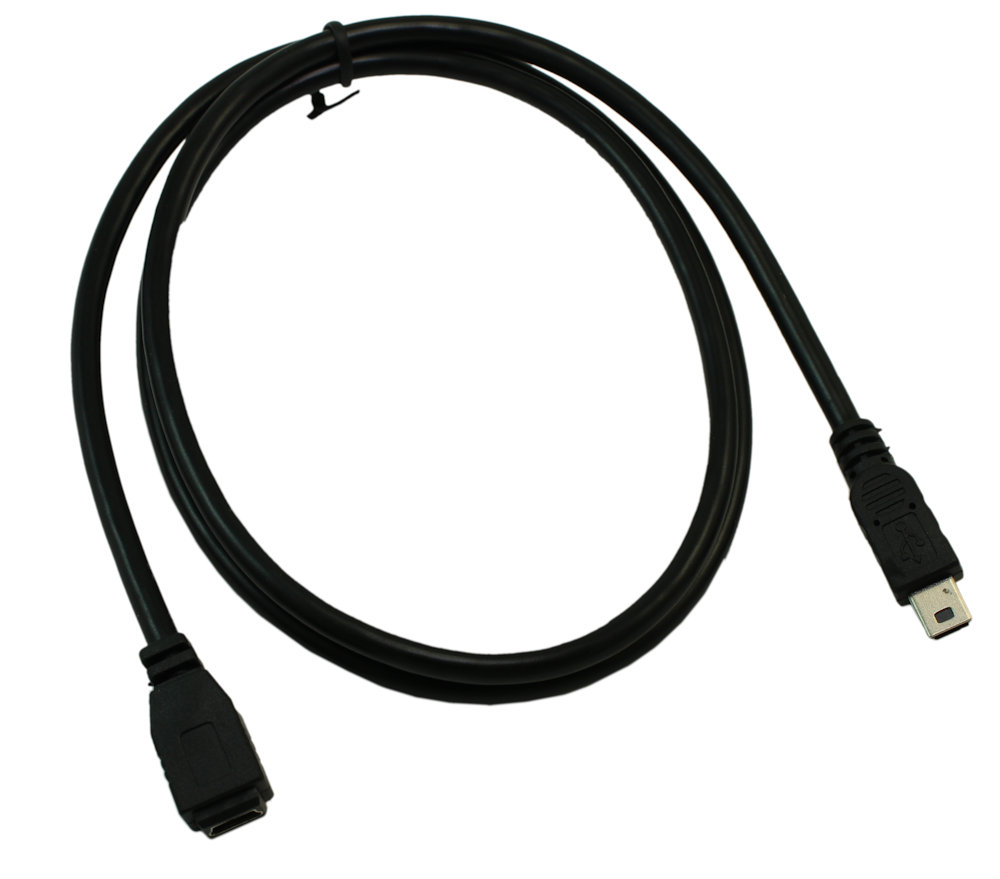

USB 2.0 Certified 480Mbps Mini-B/5-Pin Male/Female EXTENSION Cable
|
|
|
|
|
|
|
Lengths Available: |
6in, 12in, 1.5ft, 3ft, 6ft, |
|
Colors Available: |
|
|
Part Numbers this model: |
FE-USB-NB5MF-6IN, FE-USB-NB5MF-12IN, FE-USB-NB5MF-01, FE-USB-NB5MF-03, FE-USB-NB5MF-06, |
| |
|
|
Sales Category: |
USB Cables |
Wire Gauge (AWG): |
24 AWG, 28 AWG |
|
Connector A: |
USB Type Mini-B 5 Pin Female |
Specification: |
USB 2.0 |
|
Connector B: |
USB Type Mini-B 5 Pin Female |
Number Ports: |
N/A |
|
Export Tariff Code (HST): |
8544422000 |
Transfer Rate: |
|
|
Feature / Style: |
|
Images Length/Size Shown: |
12 IN |
|
# Positions: |
|
Shielding: |
Shielded |
|
Convert From/To: |
|
Type: |
|
|
| |
This Mini B Male 5pin to Mini B Female cables is used to connect from your USB port on Hub, PC or Mac to your small device such as digital camera, many GPS units, MP3 players, USB hubs, or some legacy mobile phones. The cable uses extra duty 24AWG wires to ensure sustained voltage to and from your device. Note: This is an EXTENSION CABLE.
Specifications:- USB Mini B 5pin Male to Mini B 5pin FEMALE Connectors
- Cable Conductors Gauge: 28AWG (1P) + 24AWG*2C
- Cable Spec: USB2.0 cable 28AWG(7/0.12)*1P+24AWG(7/0.2BC)*2C+AL+D
- 4 pin wiring ONLY: 1-1, 2-2, 3-3, and 5-5. Pin 4 is NOT wired.
- Cable Outer Diameter (OD): 4.5mm
- Transfer rates up to 480Mbps
- Make plug and play connections for such devices as keyboards, mice, modems, printers, and other USB peripherals
- PC and Mac compatible
- Compatible with USB specifications 1.0, 1.1, and 2.0
- Nickel plated USB plugs
- RoHs compliant
|
