USB 3.2 Gen 2 Type-C Male to Female EXTENSION Cable, 10 Gbps Black
|
|
|
|
|
|
|
Lengths Available: |
6in, 12in, 1.5ft, 3ft, 6ft, |
|
Colors Available: |
Black
|
|
Part Numbers this model: |
FE-USB-CX-6IN, FE-USB-CX-12IN, FE-USB-CX-01, FE-USB-CX-03, FE-USB-CX-06, |
| |
|
|
Sales Category: |
USB Cables |
Wire Gauge (AWG): |
32 AWG, 32 AWG |
|
Connector A: |
USB Type C Male |
Specification: |
USB 3.0 (USB 3.1 Gen 1, Superspeed) |
|
Connector B: |
USB Type C Female |
Number Ports: |
N/A |
|
Export Tariff Code (HST): |
8544422000 |
Transfer Rate: |
|
|
Feature / Style: |
|
Images Length/Size Shown: |
12 IN |
|
# Positions: |
|
Shielding: |
Shielded |
|
Convert From/To: |
|
Type: |
|
|
| |

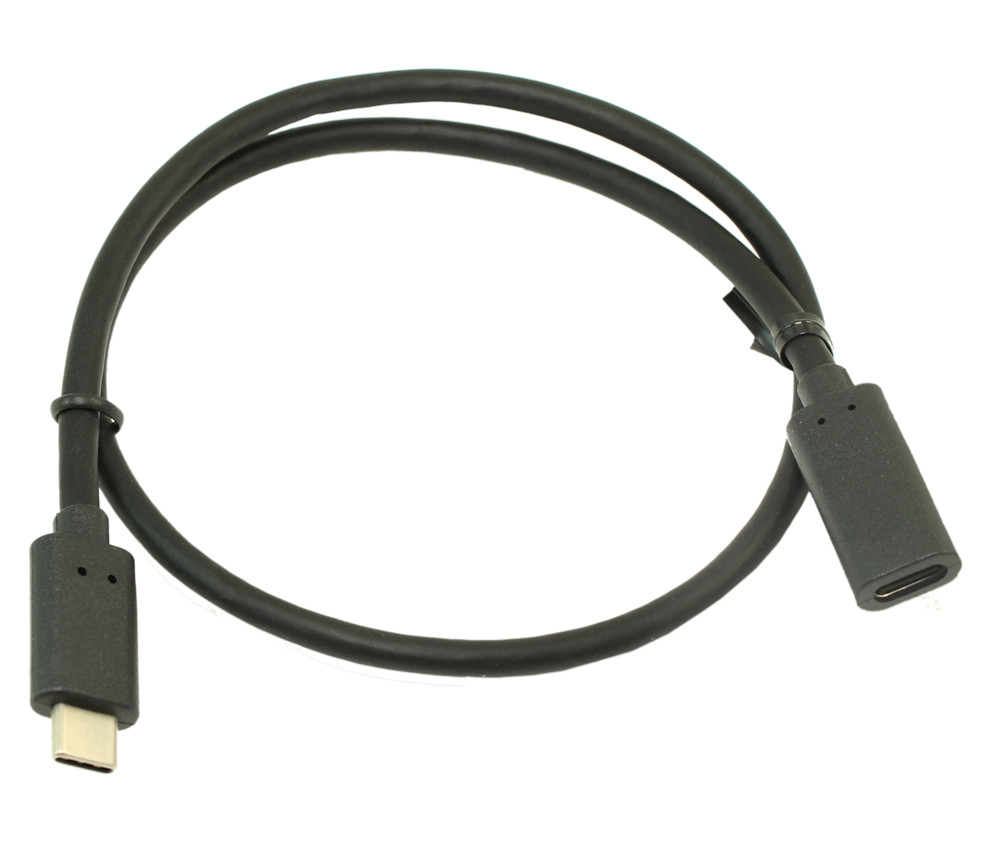

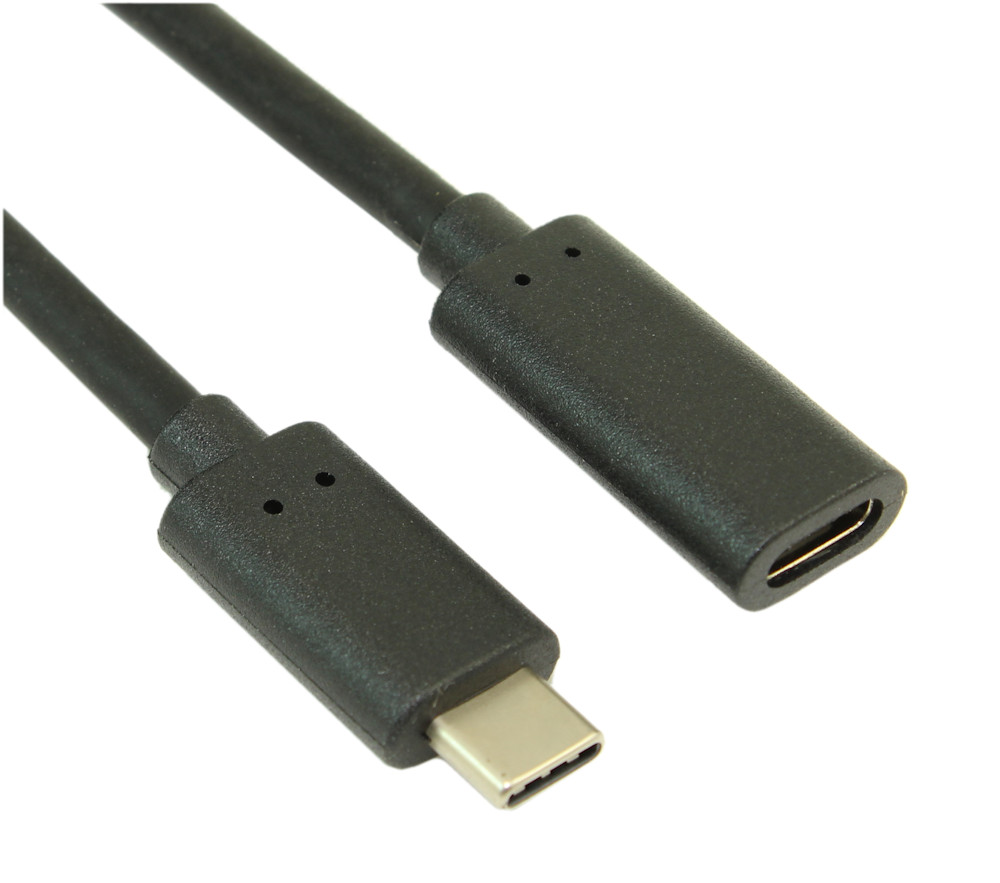

This USB 3.2 Gen 2 EXTENSION cable features a male USB Type C connector on one end, and a FEMALE USB Type-C connector on the other end.
Specifications:- Use a single cable for power, video, networking, and data
- USB 3.2 Gen 2 SuperSpeed 10 Gbps supports up to 10 Gbps data rate
- Wire Gauge: 32AWG / 22AWG
- Cable Outer Diameter (OD): 4.5MM
- USB Standard: 3.1
- Type: USB Type C male to USB Type C female
- Power Rating: Up to 3A
- Data Transfer Speeds: up to 10Gbps (Date Rate MIGHT not be achievable due to total length)
- Cable Spec: USB 3.1 Cable (32AWG*1P+AL+MY)*4C+32AWG*1P+32AWG*4C+22AWG*2C+F+ADB
- USB-IF License and TID Product Reg# 5200000167 and 5200000164
Technical Note: USB Type-C EXTENSION cables might not be compatible with ALL devices - especially if you are extending the net total length beyond 6 feet or using with USB hubs or adapters that might cause buffering issues. USB Type-C technology is very restrictive at longer lengths. USB-C extension cables when used with a QUICK-CHARGE cable will NOT sustain the QC charge rates, nor will they provide for POWER DELIVERY (PD) capabilities
|
