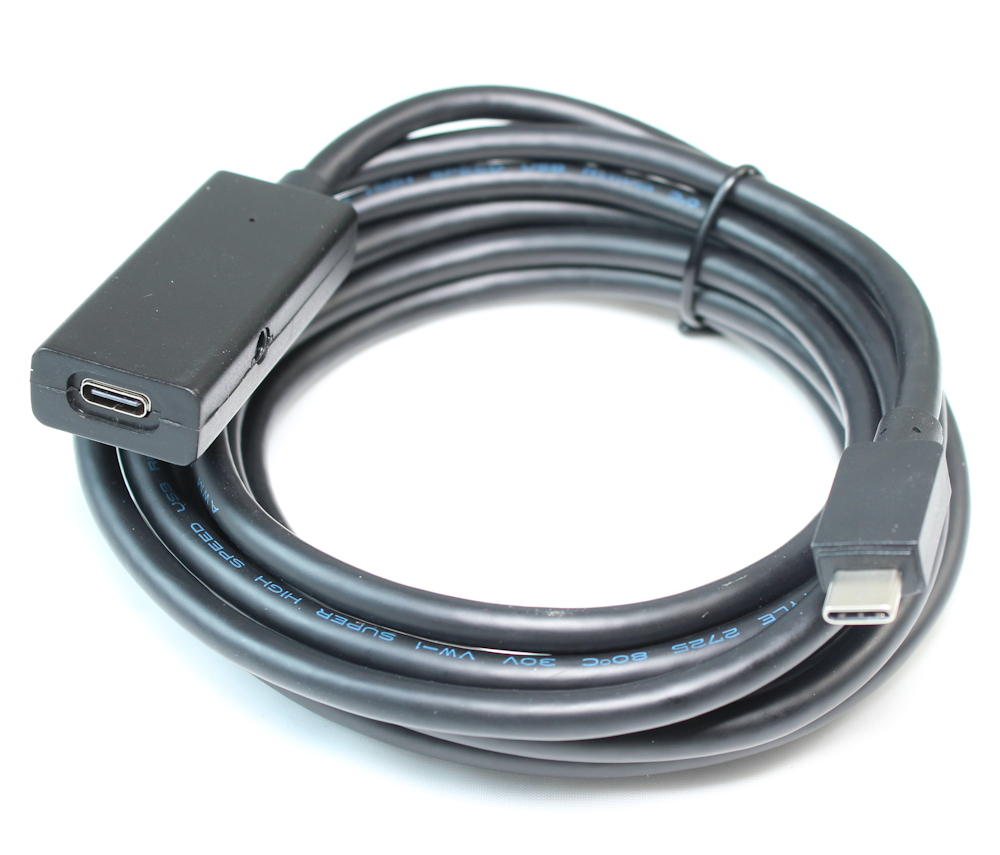

10Ft USB 3.1 Gen 1 Type-C Male to Female ACTIVE EXTENSION Cable, 5 Gbps


 Lengths Available: 6ft, 10ft,
 Colors Available:
 Part Numbers this model: FE-USB-CX-16, FE-USB-CX-10,

 Sales Category: USB Cables  Wire Gauge (AWG): 32 AWG, 32 AWG
 Connector A: USB Type C Male  Specification: USB 3.0 (USB 3.1 Gen 1, Superspeed)
 Connector B: USB Type C Male  Number Ports: N/A
 Export Tariff Code (HST): 8544422000  Transfer Rate: 5Gbps
 Feature / Style: Data Transfer and Charge Images Length/Size Shown: 10 FT
# Positions: Shielding: Shielded
Convert From/To: Type:

This ACTIVE EXTENSION cable is tested to meet up to 5Gbps when used directly. Using this cable as an EXTENSION cable to lengthen an existing USB 3.1 type C cable MAY reduce the operating speed. An optional power supply MAY be connected to the female barrel port (port size: 4.5mm/1.3mm, 5V/2A), not included.

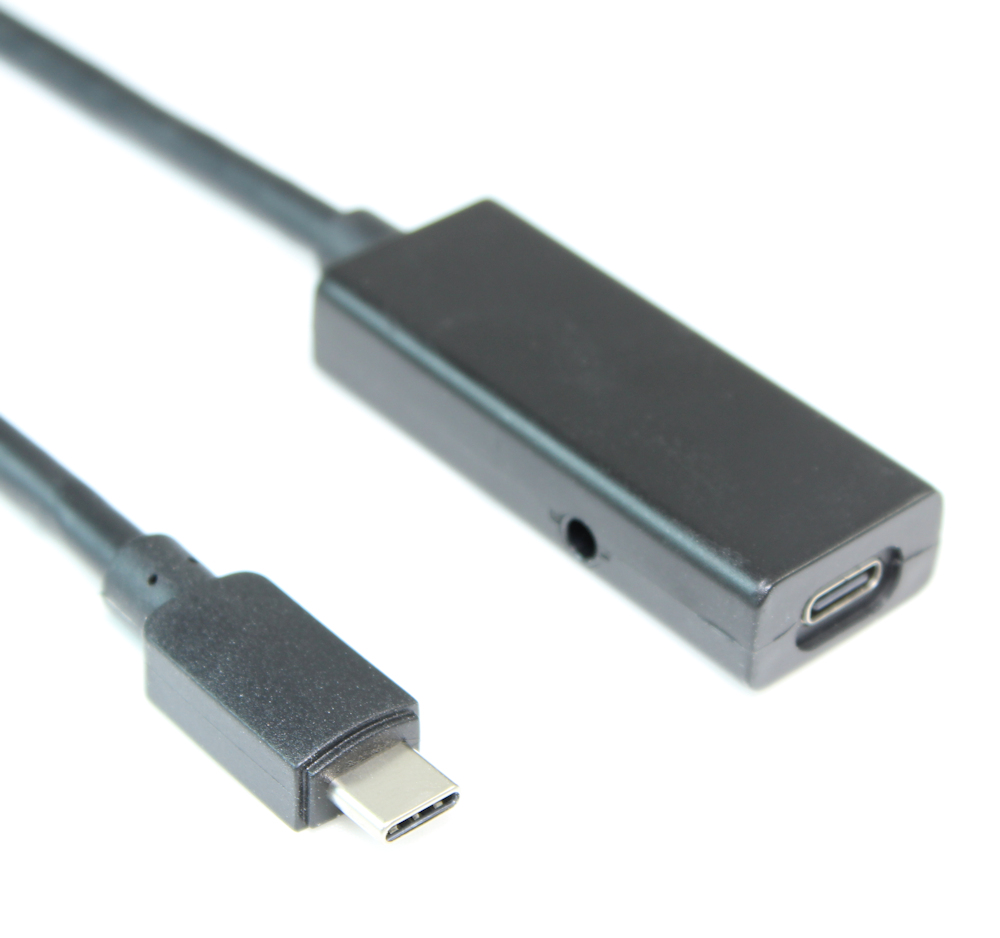

This USB 3.1 Gen 1 EXTENSION cable features a male USB Type C connector on one end, and a FEMALE USB Type-C connector on the other end.

Specifications:
  • Supports a variety of USB devices to extend the connection : monitoring cameras, projectors, printers etc.
  • The transmission rate is up to 5Gbps, high speed for data transmission.
  • The outer material be made with ABS and PVC, wear-resistant cable with long active life.
  • The cable is built with signal amplifier, which can effectively prevent electromagnetic interference of plug-in line and space, and stable signal transmission.
  • Fine internal process: aluminum foil, braid and ground wire for three-layers shield protection, with built-in copper core wire to avoid signal loss, for smooth signal transmission.
  • Compatible for Windows, Mac OS, Linux etc.

Technical Note: USB Type-C EXTENSION cables might not be compatible with ALL devices - especially if you are extending the net total length beyond 6 feet, using it with a USB HUB or other converting device. USB Type-C technology is very restrictive at longer lengths.

This cable will NOT support extending Star Micronics TSP100 Thermal Receipt Printers or similar models. RMA Returns for this product will be granted but My Cable Mart will NOT provide pre-paid return shipping costs due to product incompatibilities. USB-C extension cables when used with a QUICK-CHARGE cable will NOT sustain the QC charge rates, nor will support POWER DELIVERY (PD) Charge rates will instead be substantially reduced.
