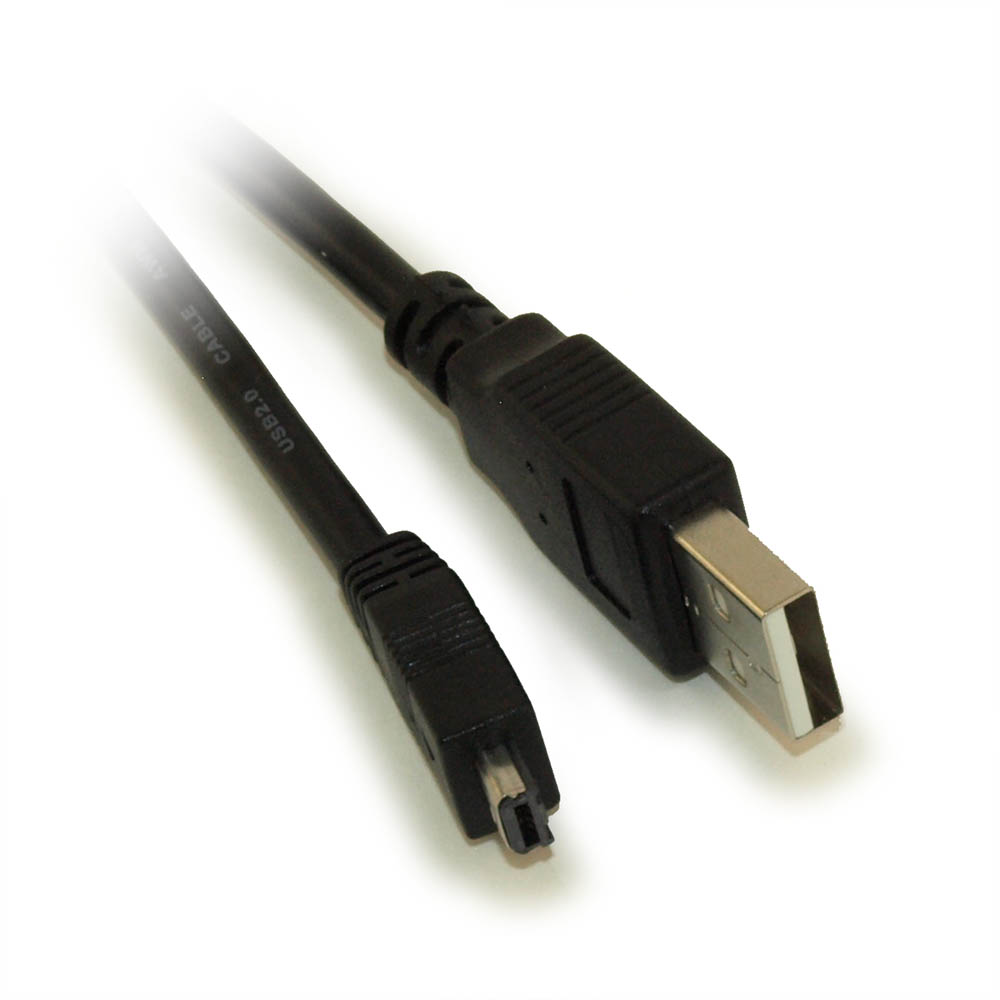

USB 2.0 Certified 480Mbps Type A Male to Mini 4-Pin Male Cable
|
|
|
|
|
|
|
Lengths Available: |
6in, 10in, 1.5ft, 3ft, 6ft, |
|
Colors Available: |
|
|
Part Numbers this model: |
FE-USB-ANB4-6IN, FE-USB-ANB4-10IN, FE-USB-ANB4-01, FE-USB-ANB4-03, FE-USB-ANB4-06, |
| |
|
|
Sales Category: |
USB Cables |
Wire Gauge (AWG): |
24 AWG, 28 AWG |
|
Connector A: |
USB Standard Type A Male |
Specification: |
USB 2.0 |
|
Connector B: |
USB Standard Type A Male |
Number Ports: |
N/A |
|
Export Tariff Code (HST): |
8544422000 |
Transfer Rate: |
480Mbps |
|
Feature / Style: |
Data Transfer and Charge |
Images Length/Size Shown: |
6 IN |
|
# Positions: |
|
Shielding: |
Shielded |
|
Convert From/To: |
|
Type: |
|
|
| |
The USB A to MINI-B 4pin cables are used by many cameras, GPS systems, and some older cellphones that use the MINI 4pin connector type.
When comparing our cables to our competitors, please note the WIRE THICKNESS of 28AWG (1P) + 24AWG*2C. Most of our competitors use 28/28AWG cables resulting in signal loss, slower charging times, and overall amperage loss.
Cable Specifications:- Cable Conductors Gauge: 28AWG (1P) + 24AWG*2C
- Connectors: USB 2.0 Type A and USB Mini-B 4 pin
- Shielding and Jacket Type: Aluminum foil + drain wire 7/0.12mm pure copper
- Wire: CU (Pure Copper)
- RoHS Compliant
- Outer Cable Diameter: 4.5mm.
|
